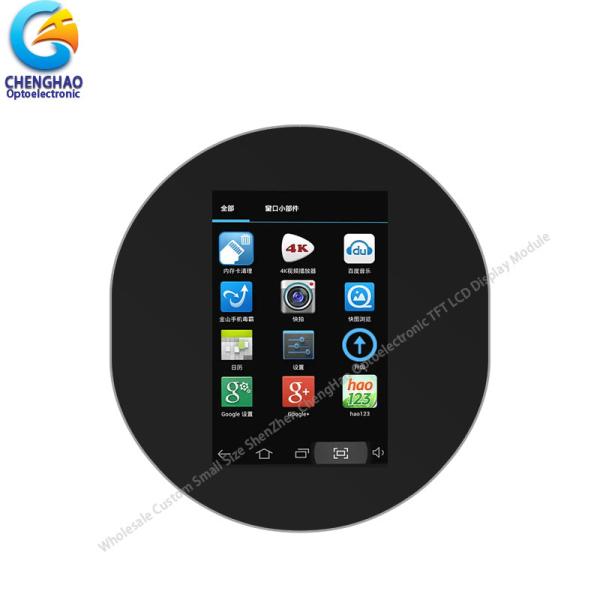

4.3 Inch Small LCD Touch Screen 480*800 Dots IPS Tft Display Module With CTP

1. Specification of Lcd Touch Screen Display

2. Description of Small Touch Screen Display

ChengHao Display model CH430WV08B-CTB is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, a back-light, a Capacitive touch panel and FPC.

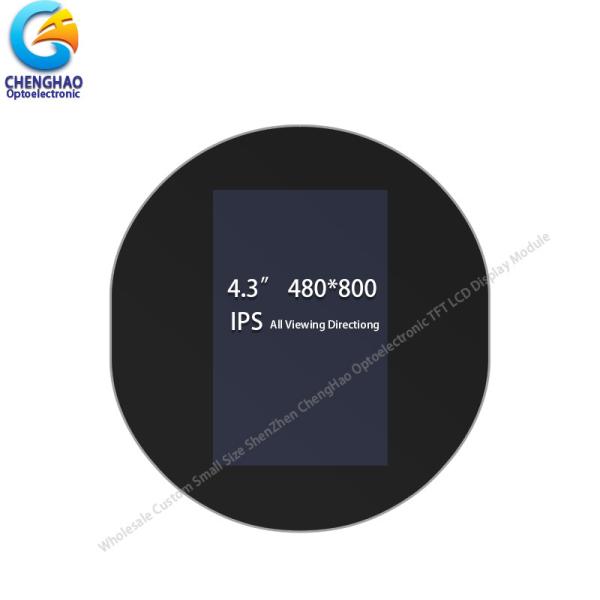

This TFT LCD has a 4.3 inch diagonally measured active display area with 480(RGB)*800 dots resolution and with a round cover.
The driver used for this project can display 16M colors by R.G.B. signal input and is mounted on the glass , the interconnection via FPC including components to drive the display module. Support 3 Line SPI + 16 bit RGB interface.
In addition, FPC can also be customized according to customer requirements, such as modifying back-light and CTP structure, interface definition, etc.
RoHS Compliance & Halogen Free.

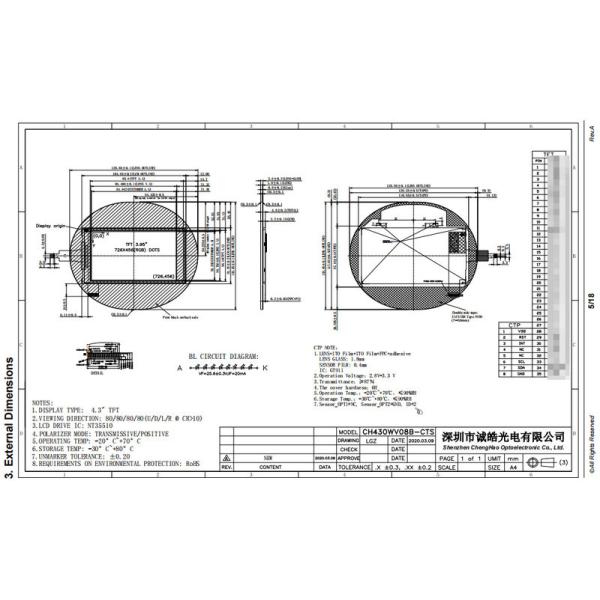

3. Drawings of Lcd Touch Monitor

Notes:
(1) Display Type : 4.3" Tft lcd
(2) Viewing Direction : ALL
(4) Polarizer Mode : IPS / Transmissive / Normally Black
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

4. Qucik Detail of Ips Tft Display

* LCD name: 4.3 Inch Small LCD Touch Screen 480*800 Dots IPS Tft Display Module With CTP
* Part No.:CH430WV08B-CTB

* Size.: 4.3 inch
* Support touch panel Type: CTP
* Display type: 4.3’’TFT+CTP
* Display colors: 16M
* Resolution (pixels): 480(RGB)*800
* Viewing direction: All

* Color Pixel Arrangement: RGB vertical stripe

* Display mode: IPS / Transmissive / Normally Black
* Overall size: 128.85(W)×118.45(H)×4.5(T) mm

* Active Area: 93.6(W)×56.16(H) mm

* Dot pitch: 0.117(W)×0.117(H) mm

* Luminance: 300 cd/m2
* Contrast: 800:1
* Interface type: 3 line SPI + 16bit RGB Interface
* Pin NO.: 35
* Backlight : 8 White LED

* Operating temperature: -20 ~ +70

* Storage temperature: -30 ~ +80 ℃
