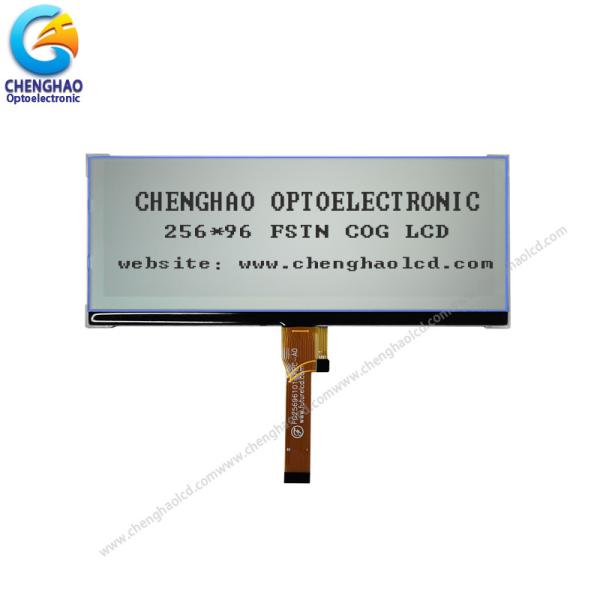

Custom 256*96 Monochrome LCD Display FSTN 22pin Dot Matrix Graphic LCD

1. Specification

2.Quick detail

Product Name: 7Segment Monochrome LCD Display

Supplier Type: Factory

Method of sales:Wholesale Custom

Display Model:FSTN/POSITIVE/TRANSFLECTIVE

.Driving Condition:1/128DUTY,1/12BIAS;VDD=3.3V;VLCD=14.9V

Viewing Direction:6:00 o'clock

Operating Temp:-20~+70°C

Storage Temp:-30~+80°C

.LCD Connector:COG+FPC

FPC Number:22

Interface:SPI,MCU/ Cutom

Backlight:16 pcs WHITE LED ;Vf=3.0V;If=240mA

Unspecified tolerance is ±0.20mm

3.Support for custom content:

(1)LCD screen size, material
(2)The type and color of the displayed icon
(3)Backlight brightness, color
(4)Shape structure of FPC
(5)Interface definition
.....

4. Drawings

5. Applicaion

Chenghao Optoelectronic CH25696101 is a Dot Matrix Graphic LCD with a wide range of applications, such as automation equipment, laboratory instruments, industrial equipment, medical equipment, etc.

6. Why Choose Us ?

The high quality products enable it to build a long-term relationship with world-famous enterprises in the industries
(1) Competitive Price
Own-owned factories offer lower prices and better quality assurance.
(2) Strong Technical Strength
We are a top supplier specializing in the production of color LCD screens. We have a technical team with rich experience in product research and development, and can provide customers with professional technical support and customized consulting services at any time, which is very important for cooperative customers with special project needs.
(3) Long-term Partner
Products are sold to more than 40 countries, so from Chenghao Optoelectronic you can get more stable supplying promise;
(4) Professional Service
We have a professional after-sales team that can provide you with after-sales consulting services 24 hours a day.At the same time, if you encounter any problems in the process of using our products, you can give us feedback, and our technical engineers will provide you with online remote consulting services at any time.

7. FAQ

Q: May i buy samples from you?
A: Yes! You are welcome to place sample order to test our Hight quality and service.

Q: How to place bulk order?
A: 1) Tell us model number, quantity, color and other special requirements.
2) Proforma Invoice will be made and sent to you for approval
3) Production will be arranged once get your payment or deposit.
4) Goods will be delivered as stated on the Proforma Invoice.

Q: How will you deliver my goods to me?
A: We provide as many shipping options as possible, such as DHL, UPS, FEDEX, TNT AND EMS to enable our customers get their goods
rapidly at door. We also ship by economick method such as air cargo and sea cargo, direct line, air mail according to customers'
request.

Q: What about the quality of your product?
A: We provide unrivaled quality: very rigorous testing process for incoming quality control, input process quality control, and
final quanltiy control for every piece. We follow QC test procedure, and do 100% FQC to ensure your satisfication.

Q: Can you provide OEM service?
A: Yes! We can provide professional OEM service.
