480x800 TFT LCD Capacitive Touchscreen 4.3" 25Pin MIPI interface

1. Specification

2. Description

Chenghao 4.3 inch tft lcd module (CH430WV12A-CTA) is a color active matrix TFT (thin film transistor) Lcd (liquid crystal display) that uses amorphous silicon TFT as a switching device. It mainly includes a touch panel, an lcd panel, a driver IC, a backlight and an FPC.

This touch panel is a capacitive touch panel (CTP), uses the I2C interface, and supports multi-touch.

The lcd panel is an IPS TFT type with a 4.3 inch color display area (vertical screen), which can display 480*800 dots resolution video images and supports 80/80/80/80 full viewing angles.

ILI9806E is used as driver IC for 4.3 inch tft lcd module, supports MIPI interface and can display 16M colors.

For most customer LCD screen buyers, personalized customization is inevitable. CH430WV12A-CTA can be modified and customized according to customer requirements. The customized content includes removal or replacement of touch function (RTP), Sunlight Readable (modified brightness), screen waterproof and anti-glare (screen surface treatment), FPC design (shape structure, interface definition), etc.

If you want to get more relevant information, you are welcome to contact our customer service at any time.

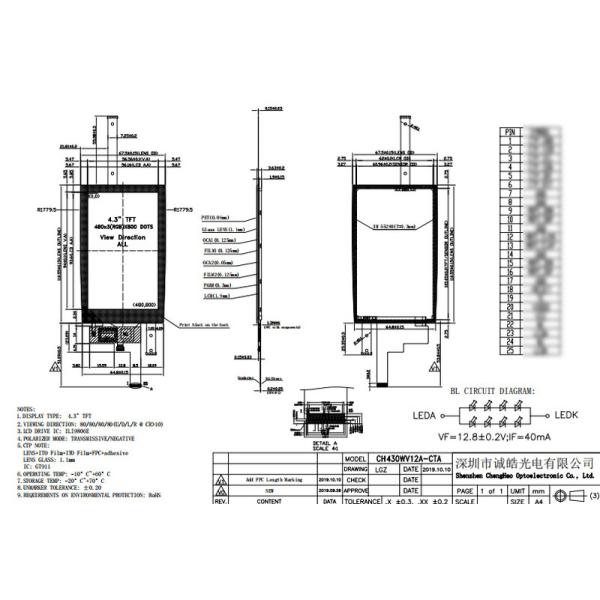

3. Drawings

Notes:
(1) Display Type : TFT+CTP
(2) Viewing Direction : 80/80/80/80
(3) Lcd Drive IC : ILI9806E
(4) Polarizer Mode : Transmissive/ Negative
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

4. Quick Detail

* LCM name: 480x800 TFT LCD Capacitive Touchscreen

* Model: CH430WV12A-CTA
* Lcm Size.: 4.3 inch
* Display Type: 4.3" TFT+CTP
* Display colors: 16.7M

* Viewing Angle: All Viewing Angle

* Driver IC: ILI9806
* Display mode: IPS/transmissive/ Normally black
* Module size: 62.5(W)*109.55(H)*4.0(T)mm

* TFT Active Area: 56.16(W)*93.6(H)mm

* Luminance: 350 cd/m2

* Contrast: 800

* TFT Interface Type: MIPI

* Pin Number: 25pin
* Backlight type : White LED
Backlight: 8 LED
