1. Specification

2. Description

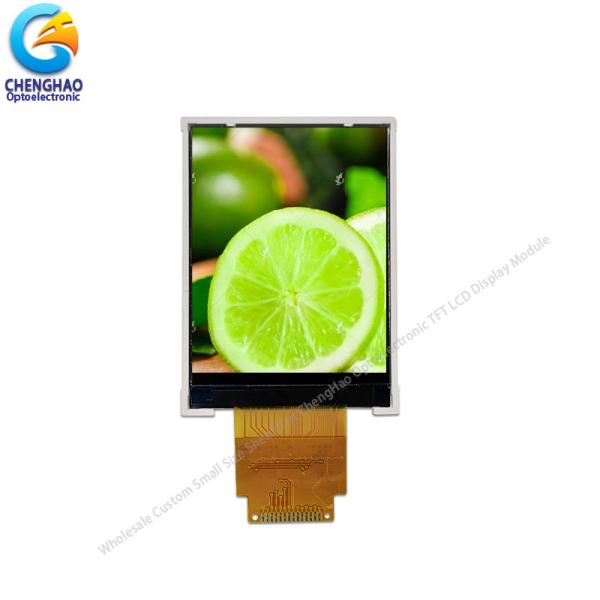

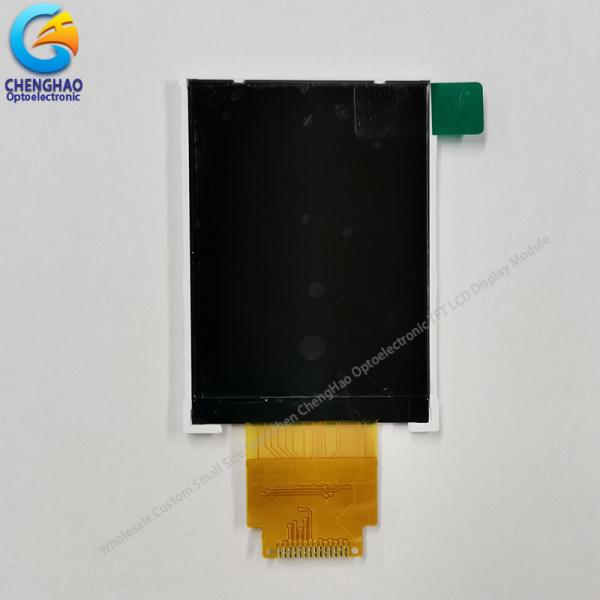

ChengHao Display model CH220QV06A is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, a back-light, and FPC.

This TFT LCD has a 2.2 ( vertical screen ) inch diagonally measured active display area with 240 horizontal by 320 vertical pixel .

The driver used for this project is the ILI9341V and can display 262K colors by 8 bit SPI signal input. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module. Support SPI interface.

In addition, FPC can also be customized according to customer requirements, such as modifying back-light and CTP structure, interface definition, etc.

RoHS Compliance & Halogen Free.

3. Drawings

Notes:
(1) Display Type : 2.2 inch TFT + RTP
(2) Viewing Direction : 6:00
(3) Lcd Drive IC : ILI9341V
(4) Polarizer Mode : Transmissive/ Positive
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

4. Quick Detail

* LCD name: High Quality 2.2 Inch Small TFT LCD Module 240x320 Dots With ILI9341V IC
* Part No. : CH220QV06A
* Size.: 2.2 inch
* With touch panel or not: No
* Support Touch type: Capacitive |Or Resistive Touch Panel
* Display type: 2.2"TFT
* Display colors: 262K
* Resolution (pixels): 240(RGB)*320
* Pixel pitch: 0.219 (H)*0.219(V) mm
* Viewing direction: 6:00
* Controller IC: ILI9341V
* Display mode: Transmissive/ Normally White/TN
* Overall size: 40.1(W)×55.2(H)×2.35(T) mm
* Active Area: 33.84(W)×45.12(H) mm
* Luminance: 250 cd/m2
* Contrast: 500 : 1
* Interface type: 4 lines 8 Bits SPI
* Pin NO.: 14pins
* Pin pitch: 0.4 mm
* Connecting type: Connector type
* Input voltage: 3.2 V
* Backlight type and color: LED backlight/white
Backlight: 4 LED parallel
* LED Life span: 20000h

5. Application

6. Our Service

(1) Remote technical support: We have our own R&D engineers, who can answer all questions about product technology of cooperative customers at any time, and can also provide technical support for customers' special projects;

(2) 24-hour online customer service: Our customer service has rich experience in overseas customer service and can communicate with customers in English to ensure that your contact channel with us is unimpeded.

7. Why Choose Us ?

(1) We provide at least one year's product warranty service for all cooperative customers' orders, please consult our online customer service for details;

(2) All our products have undergone strict quality inspection procedures such as power-on test/mirror inspection before leaving the factory, which ensures that our defective rate is reduced by less than 0.3%.

(3) If the customer needs, we can provide free CE/ROHS and other certification services for cooperative products;

(4) Each of our TFT lcd Modules has a small amount of stock. If you need samples, you can ask for them from our customer service. We can refund you the sample fee when you establish cooperation with us in the later stage.

7. FAQ

1. Who are we?
We are based in Guangdong China, start from 2015,sell to

WesternEurope ( 35.00% )

Oceania ( 25. 00% )

North America ( 13.00% )

SouthAmerica ( 7.00% )

Southeast Asia ( 7. 00% )

Northern Europe ( 7.00% )

Southern Europe ( 4.00% )

Domestic Market ( 2. 00% ).

There are total about 30 people in our office.

2 How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3.What can you buy from us?
Color TFT LCD,Touch Panel Modules,Pcap & Cover Glass,Monochrome LCD, Converter Board.

4. Why should you buy from us not from other suppliers?
CHENGHAO LCD is a national high-tech enterprise which established in year 2016. We are committed to research and development, manufacturing and sales of LCD screens, touch screens and comprehensive display solutions.

5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDP,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

If you have more question , Please contact us now, we look forward to communicating with you !
