1.44 Inch Tft Screen High Quality 128x128 Resolution 9 Pin Serial Lcd Display Module

1. Specification

2. Description

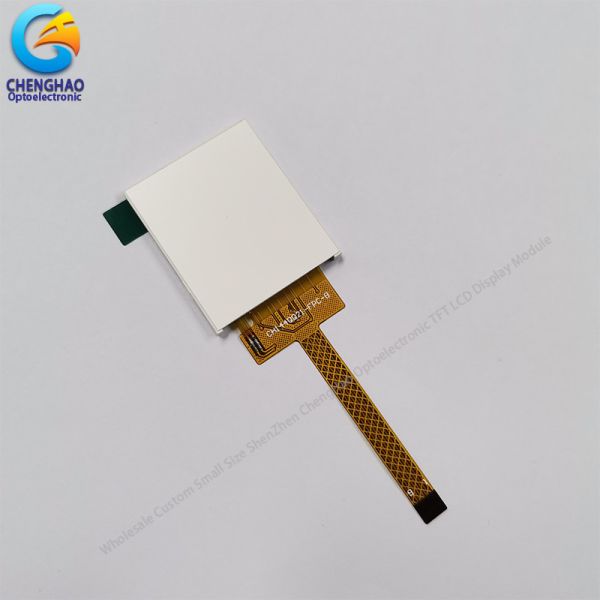

* CH144QQ21A is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, a Hight Brightness backlight.
* 1.44 inch color screen display
* It is 128(RGB)x128 resolution TFT LCD module, clear display
* a Hight Brightness backlight : 800 cd/m2 and Support Sunlight Readable
* RoHS & REACH compliant.
* Using 4 Wire Spi Interface
* Provide a rich sample program
* Military-grade process standards, long-term stable work
* Provide underlying driver technical support
* Long term stable production and guaranteed supply
* Backlight with different brightness options from 200 - 1500cd/m2 are available.
* Specific touch panel can be designed & customized.
* Support customized service! Customizable content includes FPC/backlight brightness/installation of touch panel, etc.

3. Drawings

Notes:
(1) Display Type : 1.44" Tft lcd
(2) Viewing Direction : 6 o'clock
(3) Lcd Drive IC : ST7735
(4) Polarizer Mode : TN / Transmissive / Normally White
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

4. Qucik Detail

* LCD name: 1.44 Inch Tft Screen High Quality 128x128 Resolution 9 Pin Serial Lcd Display Module
* Part No.: CH144QQ21A
* Size.: 1.44 inch
* With touch panel or not: No
* Display type: TFT
* Display colors: 16.7M / 262k / 65k ( Optional )
* Resolution (pixels): 128*128 cd/m2
* Pixel pitch: 0.1992(W)×0.207(H) mm
* Viewing direction: 6 o'clock
* Controller IC: ST7735s
* Display mode: Transmissive/ Normally White/Tn
* Overall size: 29(W)×34.41(H)×2.2(T) mm
* Active Area: 25.4976(W)×26.496(H) mm
* Luminance: 800 cd/m2
* Contrast: 500 : 1
* Interface type: 4-Wire SPI
* Pin NO.: 9 pins
* Pin pitch: 0.5mm
* Backlight type and color: LED backlight/white
Backlight: 2 LED parallel
* LED Life span: 20000h
