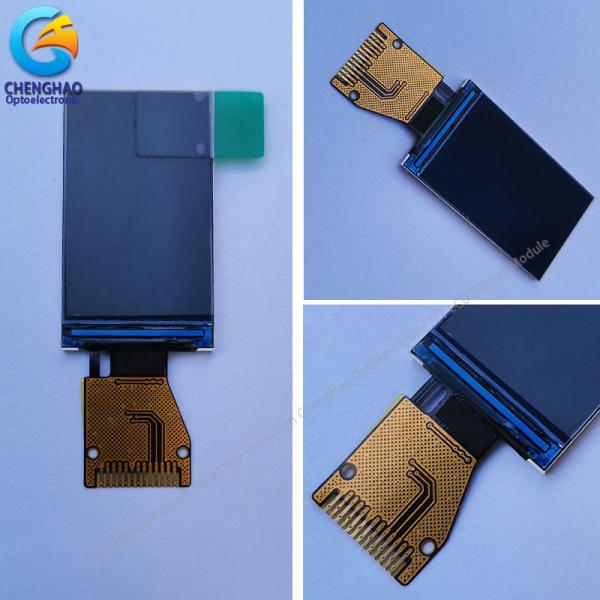

1.14 Inch Small TFT LCD Module 135*240 Dots IPS Display Module

1.14 Inch Small TFT LCD Module135*240 Dots Ips Display Module With Driver Ic ST7789V

1. Specification

2. Description

Product Name: << 1.14 Inch Small TFT LCD Module135*240 Dots Ips Display Module With Driver Ic ST7789V >>

Display model CH114QV01A is a color active matrix thin film
transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a
switching device. This model is composed of a TFT LCD panel, a driving circuit
and a back light system. This TFT LCD has a 1.14” inch diagonally
measured active display area with 135 x 240 dot (135 horizontal by 240 vertical
pixel) resolution.

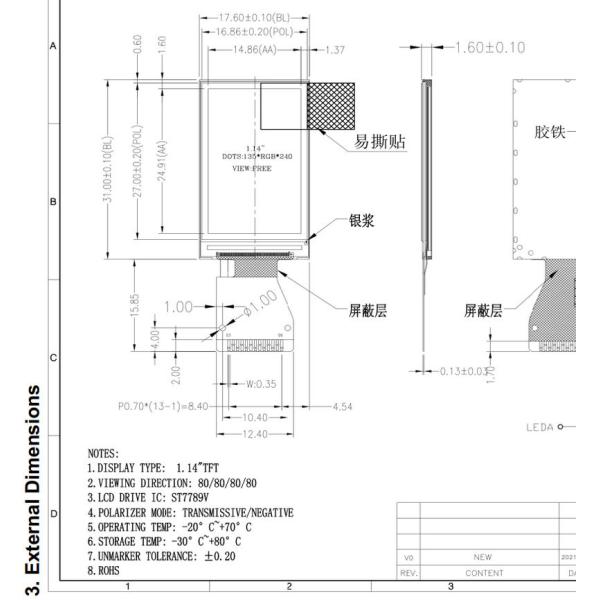

3. Drawings

Notes:
(1) Display Type : 1.14 inch TFT
(2) Viewing Direction :all viewing angle
(3) Lcd Drive IC :ST7789V
(4) Polarizer Mode : Transmissive / Negative
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

4. Application

Our products are widely used for banking machines, communication tools, household appliances,

automobile instruments, mobile phone, video door phone, E-book, stock mobile, MP5, tablet PC, GPS

navigator and so on.

5. Why Choose Us ?

The high quality products enable it to build a long-term relationship with world-famous enterprises in the industries

(1) Competitive Price
Own-owned factories offer lower prices and better quality assurance.

(2) Strong Technical Strength
We are a top supplier specializing in the production of color LCD screens. We have a technical team with rich experience in product research and development, and can provide customers with professional technical support and customized consulting services at any time, which is very important for cooperative customers with special project needs.

(3) Long-term Partner
Products are sold to more than 40 countries, so from Chenghao Optoelectronic you can get more stable supplying promise;

(4) Professional Service
We have a professional after-sales team that can provide you with after-sales consulting services 24 hours a day.At the same time, if you encounter any problems in the process of using our products, you can give us feedback, and our technical engineers will provide you with online remote consulting services at any time.

(5) Quality to be ensure
All panels are 100% brand new, without false panels; All packages have labels and serial numbers for easy viewing by customers;

6. FAQ

Q1: Do you accept customization displays and touch screens?
A: Sure, you can customization the FPC,Backlight and the touch screen.

Q2: What type of interface is your display screen?
A: Small sized of displays generally support SPI,MCU,RGB,MIPI.Medium sized displays generally support LVDS,MIPI,EDP.Different specifications use different interfaces.

Q3: Do you used capacitive touch screen or resistive touch screen.
A: We have capacitive touch screen and resistive touch screen .

Q4: What is your sample policy?
A: If there is stock,you can sample at any time,if there is no stock,it will take some time,and then wait for the materials to come back to sample. But the customer needs to pay the sample fee and express fee.

Q5: How long is your lead time for mass production?
A: It takes about 20 - 45 working days for mass production,depending on the model and order quantity.

Q6: How to ensure long-term stable delivery?
A: First,we will recommend products that can be delivered for a long time to customers,and second,we will have a large number of stocks in advance for a long time.

Q7: What is your mode of payment for mass production?
A: Generally,after receiving 50%-100% deposit from customers,they begin to prepare materials. Delivery is about 5 working days after receipt of the final payment.

Q8: Will you inspect the goods before delivery?
A: Yes, we’ll ship the goods after 100% inspection.

Q9: How long is your warranty perio

A: We guarantee the quality for one year.
