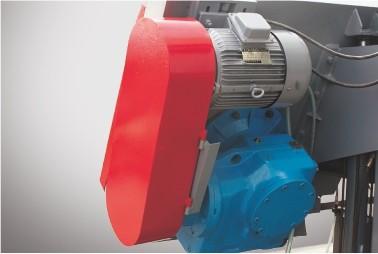

CH-800 Large Cast Iron V Belt Horizontal Band Saw Machine
CH-800 Large Cast Iron V Belt Horizontal Band Saw Machine
CH-800 Large Cast Iron V Belt Horizontal Band Saw Machine
CH-800 Large Cast Iron V Belt Horizontal Band Saw Machine
CH-800 Large Cast Iron V Belt Horizontal Band Saw Machine
CH-800 Large Cast Iron V Belt Horizontal Band Saw Machine
CH-800 Large Cast Iron V Belt Horizontal Band Saw Machine
CH-800 Large Cast Iron V Belt Horizontal Band Saw Machine
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
CHENLONG
Certification :
CE,ISO9001,ISO14001,OHSAS18000
Supply Ability :
500 Set/Sets per Month
Packaging Details :
NUDE.
MOQ :
1 Set/Sets
Price :
Negotiable
Delivery Time :
40workdays
Power (kW) :
7.5
Warranty :
1 YEAR
After-sales Service Provided :
Free spare parts, Online support, Free spare parts,engineers available to service machinery overseas
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction works , Energy & Mining, Metal Processing Factory
POWER :
UP TO CUSTOMER
Voltage :
380V/220V/415V/440V/3ph/50hz
Clamping :
Hydraulic
Saw Frame Feeding :
Hydraulic
Description

CHENLONG Horizontal Band Saw Machine Large Cast Iron V Belt Metal Working Band Saw CH-800

Function:

1. Blade cleaning brush

2. Working light

3. Power roller table 1.5m

4. One set of tools with box

5. One piere of bi-metal saw blade

6. Inverter control the saw blade line speed

Product parameters
Cutting Capacity(mm) round:800 quadrate:800W*800H
Blade Speed(m/min) 18-60inverter
Blade Size(mm) 67*1.6*8820
Motor Main(kw) 7.5kw
Motor Hydraulic (kw) 2.25kw
Coolant Pump(kw) 0.09
Workpiece clamping hydraulic vise
Blade Tensioning hydraulic
Main Drive Gear reducer
Table Height(mm) 570mm
Machine Size(L*W*H)(mm) 4130*2150*2500mm

Zhejiang Chenlong Sawing Machine Co., Ltd. (Former Zhejiang Chenlong Sawing Machine Group) was founded in 1985. Nowadays, having 66000 square meter plant area and with total assets 150 million, CHENLONG is one of the biggest manufacturer in china and a vice president company of the council of china band saw industry Association. With strong technical force, excellent manufacturing equipment and advanced production technology, CHENLONG is first company to carry out the 6S management, ISO 9001 Quality System Certifying, ISO14001 environmental protection system certifying and OHSAS18001 Occupational Health and Safety Assessment Series certifying, and we are keep moving to improve. Zhejiang Chenlong sawing machine Co., Ltd. had been listed on NEEQ since August 2014.
