Single Magazine PCB Buffer Board Handling Equipment Controlled By Omron PLC
Single Magazine PCB Buffer Board Handling Equipment Controlled By Omron PLC
Specifications
Brand Name :
Chimall
Model Number :
SBL-***A-CT
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T
Delivery Time :
25 days
Packaging Details :
Seaworthy Vacuum Plywood Packing
Name :
Single Magazine Buffer
Application :
This unit is used as a mid-line loader or unloader, as a LIFO and FIFO buffer and as a reject buffer
Buffer Capacity :
Max. 50 pcb's at pitch 1
Total Number of Magazines :
1 magazine on the lifter platform
Pitch :
1 – 50, 10mm pitch
Price :
Negotiable
Description

Single Magazine PCB Buffer Board Handling Equipment Controlled By Omron PLC

Application

The Single Magazine buffer can be used as a mid-line loader or unloader, as a LIFO and FIFO buffer and as a reject buffer.

Features

  • Controlled by Omron PLC and servo motor.
  • Easy operation by touch screen.
  • 5 operative modes: Loader, Unloader, Buffer(LIFO/FIFO), By-pass and Reject mode.
  • Multiple pitches selectable.
  • 1 magazine loading capability, discharge magazine from the rear of machine.
  • Tower light display for machine status.
  • SMEMA compliant.
  • CE certified.

Specifications

Model SBL-250A-ST SBL-330A-ST SBL-390A-ST SBL-460A-ST
Size M L LL XL
Power AC 110/220V ±10V, 50/60HZ
Air Pressure 4 - 6 kgf/cm2
Fixed Rail Front
PCB Size 350x(50 - 250)mm 460x(50 - 330)mm 535x(50 - 390)mm 535x(50 - 460)mm
Transfer Height 920 ±50mm or Specify
Transfer Direction left to right or right to left (option)
Magazine Rack Size 350x320x563mm 460x400x563mm 535x460x570mm 535x530x570mm
Pitches 1 - 50, 10mm pitch

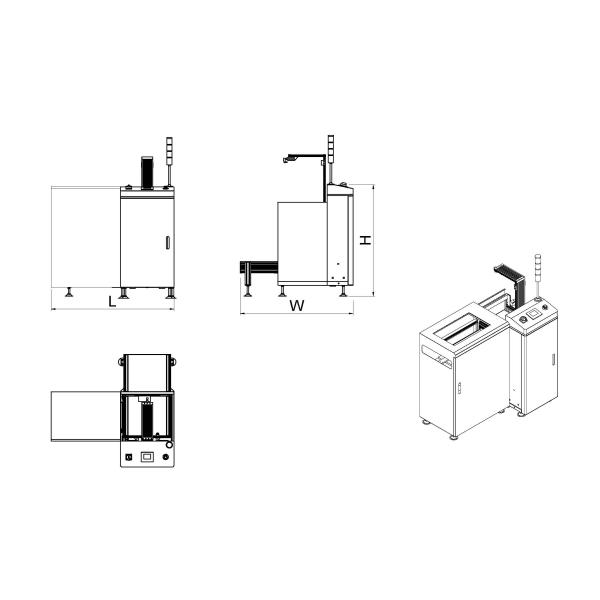

Machine Dimension 1120x1060x1200mm 1320x1220x1200mm 1500x1340x1200mm 1500x1480x1200mm
Machine Weight 220kg 240kg 260kg 280kg

* Other options available on request.
