ESD Flat Belt PCB Conveyor Heat Resistant Wave Solder Outfeed Conveyor
ESD Flat Belt PCB Conveyor Heat Resistant Wave Solder Outfeed Conveyor
Specifications
Brand Name :
Chimall
Model Number :
C-120LW-L
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
15 days
Packaging Details :
Seaworthy Vacuum Plywood Packing
Name :
Wave Solder Outfeed Conveyor
Application :
This unit is used to unload PCB's from the inclined conveyors of wave solder and to then lower the soldered boards to a standard conveyor height
Conveyor Concept :
ESD Flat Belt
Power Supply :
AC 110/220V ±10V, 50/60HZ
Machine Weight :
60kg
Description

ESD Flat Belt PCB Conveyor Heat Resistant Wave Solder Outfeed Conveyor

Heavy Duty Aluminum PCB Conveyor Heat Resistant , Wave Solder Outfeed Conveyor

Specifications

Model C-120LW-L
Power Supply AC 110/220V ±10V, 50/60HZ
Fixed Rail Front
PCB Width 50 - 460mm
PCB Direction left to right or right to left (option)

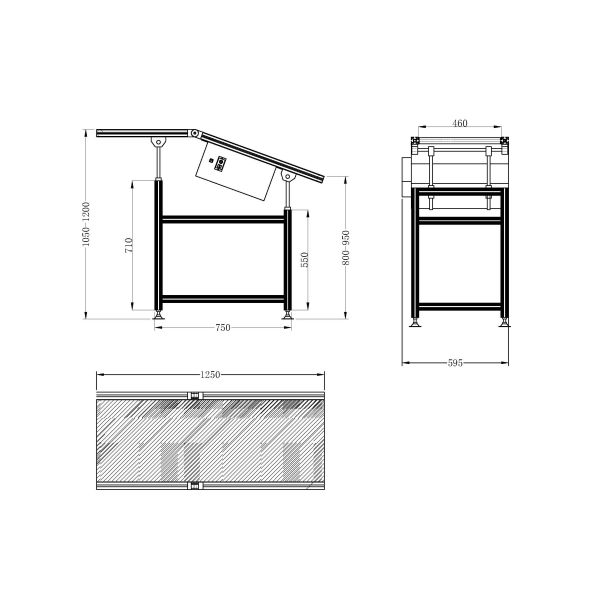

Machine Dimension 1200x500x(750 – 1200)mm
Machine Weight 60kg

Application

The Wave Solder Outfeed Conveyor is used to unload PCB's from the inclined conveyors of wave solder and to then lower the soldered boards to a standard conveyor height.

Features

  • Angle adjustment at input and output ends.
  • Heat-resistant, ESD belt with non-slip surface.
  • Heavy-duty aluminum construction.
  • Optional fan attachment for extra cooling capacity.
  • CE certified.

* Other options available on request.

ESD Flat Belt PCB Conveyor Heat Resistant Wave Solder Outfeed Conveyor
