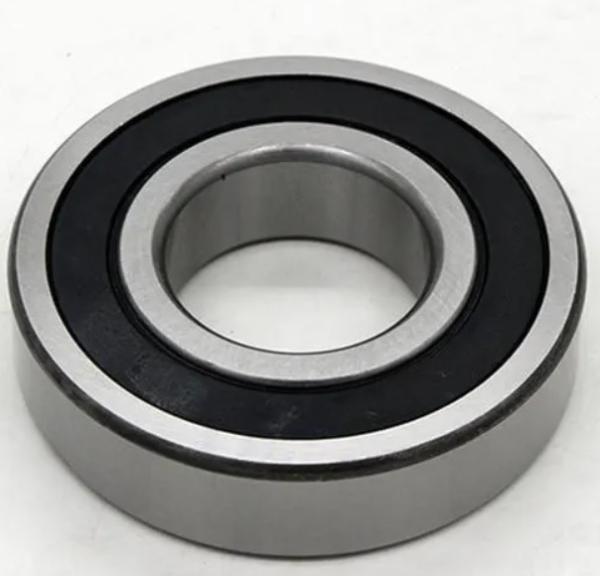

Hand tools Ball bearing 6204 2RS,Single Row Deep Groove Ball Bearing 6204 2RS,High Quality China Ball Bearing 6204 2RS
Hand tools Ball bearing 6204 2RS,Single Row Deep Groove Ball Bearing 6204 2RS,High Quality China Ball Bearing 6204 2RS
Hand tools Ball bearing 6204 2RS,Single Row Deep Groove Ball Bearing 6204 2RS,High Quality China Ball Bearing 6204 2RS
Hand tools Ball bearing 6204 2RS,Single Row Deep Groove Ball Bearing 6204 2RS,High Quality China Ball Bearing 6204 2RS
Specifications
Brand Name :
AHAHB/OEM brand
Model Number :
6204 2RS
Certification :
IS09001-2005/TS16949
Place of Origin :
China
MOQ :
5000 PCS
Price :
0.1 TO 0.5USD
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500000Pcs/month
Delivery Time :
10 DAYS
Packaging Details :
SINGLE PACKING, TUBE PACKING
Description

Our 6204 2RS with stable quality and long life using time,most important thing is you can get it in very competitive price!Specially apply for the power tools,with special rubber seals sturcturer.

This Bearing has Two Rubber Seals (2RS), Connected to the Inner Ring to Protect the Bearing from Dust or any Possible Contamination....

  • 6204 2RS-LT Deep Groove Ball Bearing dimensions: Bore Diameter 20mm, Outside Diameter 47mm, Width 14mm. 100% Chrome Steel. Bearing is Pre-Lubricated with High-Quality Grease ideal for use in High and Low-temperature settings (-40C to +180C)

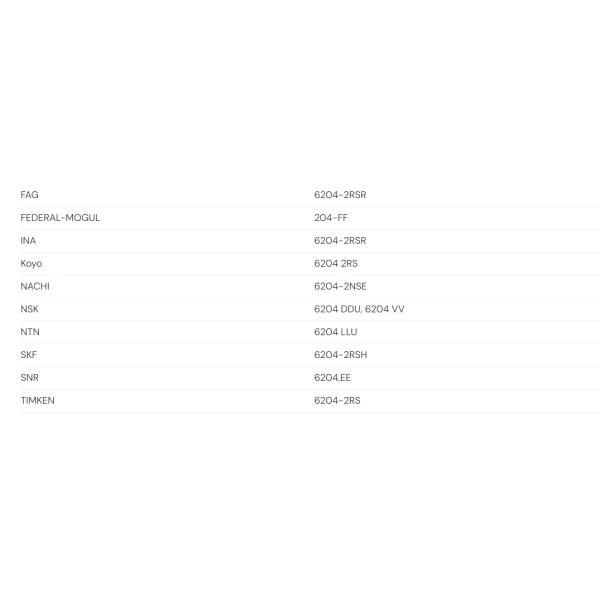

  • Interchange to 6204, 6204 RS, 6204 RSR, 6204 2RSR, 6204 RSH, 6204 2RSH, 6204 2RSJEM, 6204 LU, 6204 LLU, 6204 DU, 6204 DDU, 6204 2NSL, 6204 2NSE, 6204 EE
  • This bearing has Rubber Seal on both sides, Connected to the Inner Ring to Protect the Bearing from Dust or any Possible Contamination. If your Application Requires a Ball Bearing with One Seal or Opened Without Seals, you can easily remove one or both Seals.
  • Application: ATVs, Motorcycles, Snowmobiles, Snowblowers, Snow Thrower, Lawn Mowers, Go-KART, Automotive, Appliances, Sporting Machines, Agriculture Machines, Industrial Applications, Electric Motors, HVAC, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Medical Devices...etc
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.

Bearing No. Bore O.D Width Load Rating(KN) Ball Complement Maxronout Speed Weight(kg)
d D B B Dynamic Static No. Size Grease Oil
mm in mm in mm in Cr Cor mm r/mm r/mm
625 5 0.1969 16 0.6299 5 0.1969 1.13 0.56 8 2.381 32000 40000 0.005
626 6 0.2362 19 0.7480 6 0.2362 2.01 1.05 6 3.500 28000 36000 0.008
627 7 0.2756 22 0.8661 7 0.2756 2.53 1.36 7 3.969 26000 34000 0.014
628 8 0.315 24 0.9449 8 0.3150 2.57 1.36 7 3.969 24000 32000 0.016
629 9 0.3543 26 1.0236 8 0.3150 3.52 1.95 7 4.763 22000 30000 0.019
6200 10 0.3937 30 1.1811 9 0.3543 5.10 2.39 8 4.763 25000 30000 0.032
6201 12 0.4724 32 1.2598 10 0.3937 6.10 2.75 7 5.953 22000 26000 0.037
6202 15 0.5906 35 1.3779 11 0.4331 7.75 3.60 8 5.953 19000 23000 0.045
6203 17 0.6693 40 1.5748 12 0.4724 9.60 4.60 8 6.747 18000 21000 0.065
6204 20 0.7874 47 1.8504 14 0.5512 12.80 6.65 8 7.938 16000 18000 0.110
6205 25 0.9843 52 2.0472 15 0.5906 14.00 7.85 9 7.938 13000 15000 0.130
6206 30 1.1811 62 2.4409 16 0.6299 19.50 11.30 9 9.525 11000 13000 0.200
6207 35 1.3779 72 2.8346 17 0.6693 25.70 15.30 9 11.112 9800 11000 0.290
6208 40 1.5748 80 3.1496 18 0.7087 29.10 17.80 9 12.000 8700 10000 0.370
6209 45 1.7716 85 3.3465 19 0.748 32.50 20.40 10 12.000 7800 9200 0.410
6210 50 1.965 90 3.5433 20 0.7841 35.00 23.20 10 12.700 7100 8300 0.460
