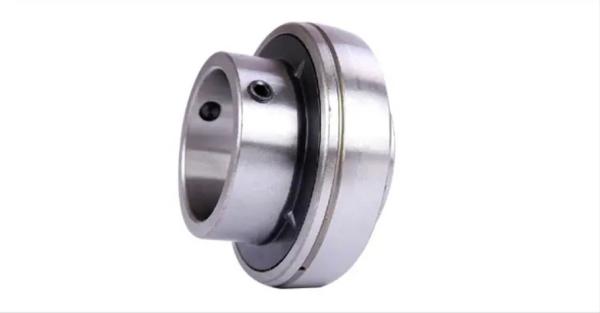

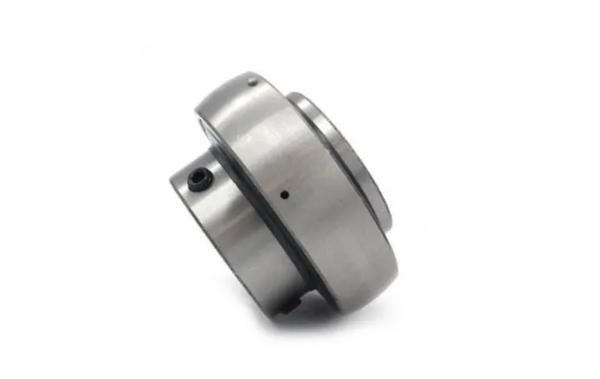

Insert Bearing UC201, High Quality Insert Bearing UC201,Chinese Insert Bearing Uc201 Supplier
Insert Bearing UC201, High Quality Insert Bearing UC201,Chinese Insert Bearing Uc201 Supplier
Insert Bearing UC201, High Quality Insert Bearing UC201,Chinese Insert Bearing Uc201 Supplier
Insert Bearing UC201, High Quality Insert Bearing UC201,Chinese Insert Bearing Uc201 Supplier
Insert Bearing UC201, High Quality Insert Bearing UC201,Chinese Insert Bearing Uc201 Supplier
Insert Bearing UC201, High Quality Insert Bearing UC201,Chinese Insert Bearing Uc201 Supplier
Specifications
Brand Name :
AHAHB
Model Number :
UC201,UC201 1/2
Certification :
IS09001-2005/TS16949
Place of Origin :
China
MOQ :
500 PCS
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
6000000 PCS/MONTH
Delivery Time :
10 DAYS
Packaging Details :
SINGLE PACKING, industrial PACKING
Type :
Insert Bearing
seals type :
R3,F series, double Seals
Bore size :
12mm,1/2 inch
Precision rating :
P0,P6,P5
Number of row :
single row
Feature :
Long Life High Speed, low noise, Long Life .durable, Four Point Contact, High Precision
Vibration :
V1 V2 V3 V4
Noise :
Z1 Z2 Z3 Z4
Product Name :
Insert Bearing UC201,Insert Bearing UC201 1/2
Description

Anhui Anheng Bearing Co.,Ltd is a professional manufacturer for the insert bearing UC sereis,our products using guranteed raw material and with perfect quality.UC201/UC201 1/2 Our noise level can reach to Z3V3.

Bearing No. Shaft Dia. Dimension mm Dynamic load Statie load Weight (kg)
d in. ratings ratings (KN)
(in.) (mm) D B C S S1 G h ds Cr (KN) Cor (KN)
UC 201 12 47 1.8504 31 1.2205 16 0.6299 12.7 0.5000 18.3 0.7205 4.7 0.1850 4.4 0.1732 M6×1
1/4-28UNF		 9.88 6.65 0.19
201-8 1/2 0.19
202 15 0.19
202-9 9/16 0.19
202-10 5/8 0.19
203 17 0.19
203-11 11/16 0.19
204 20 0.17
204-12 3/4 0.18
UC 205 25 52 2.0472 34.1 1.3425 17
0.6693		 14.3 0.5630 19.8 0.7795 5.5 0.2165 4.3 0.1693 M6×1 1/4-28UNF 10.78 9.93 0.19
205-14 7/8 0.22
205-15 15/16 0.20
205-16 1 0.19
UC 206 30 62 2.4409 38.1 1.5000 19 0.7480 15.9 0.6260 22.2 0.8740 5.5 0.2165 5 0.1969 M6×1 1/4-28UNF 14.97 11.31 0.31
206-17 1-11/16 0.34
206-18 1-1/8 0.34
206-19 1-3/16 0.32
206-20 1-1/4 0.30
UC 207 35 72 2.8346 42.9 1.6890 20 0.7874 17.5 0.6890 25.4 1.0000 6.5 0.2559 5.8 0.2283 M8×1 5/16-24UNF 19.75 15.30 0.46
207-20 1-1/4 0.52
207-21 15/16 0.50
207-22 1-3/8 0.48
207-23 1-7/16 0.45
UC 208 40 80 3.1496 49.2 1.9370 21 0.8268 19 0.7480 30.2 1.1890 8 0.3150 6.3 0.2480 M8×1 5/16-24UNF 25.09 19.84 0.63
208-24 1-1/2 0.68
208-25 1-9/16 0.64
UC 209 45 85 3.3465 49.2 1.9370 22 0.8661 19 0.7480 30.2 1.1890 8 0.3150 6.8 0.2677 M8×1 5/16-24UNF 25.14 20.46 0.68
209-26 1-5/8 0.78
209-27 1-11/16 0.74
209-28 1-3/4 0.70
UC 210 50 90 3.5433 51.6 2.0315 24 0.9449 19 0.7480 32.6 1.2835 9 0.3543 6.5 0.2559 M10×1.25 3/8-24UNF 26.98 23.18 0.78
210-30 1-7/8 0.85
210-31 1-15/16 0.80
UC 211 55 100 3.9370 55.6 2.1890 25 0.9843 22.2 0.8740 33.4 1.3150 9 0.3543 7.2 0.2835 M10×1.25 3/8-24UNF 33.37 29.22 1.07
211-32 2 1.22
211-34 2-1/8 1.10
211-35 2-3/16 1.05
UC 212 60 110 4.3307 65.1 2.5630 27 1.0630 25.4 1.0000 39.7 1.5630 10.5 0.4134 8.2 0.3228 M10×1.25 3/8-24UNF 36.74 32.93 1.51
212-36 2-1/4 1.65
212-38 2-3/8 1.53
212-39 2-7/16 1.45
UC 213 65 120 4.7244 65.1 2.5630 29
1.1417		 25.4 1.0000 39.7 1.5630 12 0.4724 8 0.3150 M10×1.25 3/8-24UNF 44.01 40 1.86
213-39 2-7/16 1.96
213-40 2-1/2 1.94
UC 214 70 125 4.9213 74.6 2.9370 30 1.1811 30.2 1.1890 44.4 1.7480 12 0.4724 9 0.3543 M12×1.25 7/16-20UNF 46.8 45 2.05
214-43 2-11/16 2.04
214-44 2-3/4 2.06
UC 215 75 130 5.1181 77.8 3.0630 30 1.1811 33.3 1.3110 44.5 1.7520 12 0.4720 9 0.3543 M12×1.25 7/16-20UNF 50.8 49.5 2.21
215-47 2-15/16 2.3
215-48 3 2.13
UC 216 80 140
5.5118		 82.6
3.2520		 33
1.2992		 33.3
1.3110		 49.3
1.9410		 14
0.5512		 10.3
0.4055		 M12×1.25 7/16-20UNF 55.04 53.31 2.79
UC 217 85 150
5.9055		 85.7
3.3740		 35
1.3780		 34.1
1.3425		 51.6
2.0315		 14
0.5512		 11
0.4331		 M12×1.25 7/16-20UNF 63.98 63.89 3.38
217-52 3-1/4 3.59
UC 218 90 160
6.2992		 96
3.7795		 37
1.4567		 39.7
1.5630		 56.3
2.2165		 14
0.5512		 12
0.4724		 M12×1.25 1/2-20UNF 73.83 70.76 4.46
218-56 3-1/2 4.56

Tolerance Class

Standard Tolerance class
GB/T307.1 PO P6 P5 P4
IS0492 C LASSO CLASS6 CLASS5 CLASS4
AFBMA STD.20 ABEC1 ABEC3 ABEC5 ABEC7

Bearing Material

Chrome Steel: Chemical Composition of Chrome Steel

Steel No Chemical Composition%
C Si Mn P S Cr
Gcr15 0.95-1.05 0.15-0.35 0.20-0.40 ≤0.027 ≤0.02 1.30-1.65

The Interchange of Chrome Steel No.

Country China ISO U.S.A Germany Japan Sweden
Bearings
Steel No.		 Gcr15 638/XVII 1 (AISI)52100 (DIN)100Cr6 (Jis)SVJ2 SKF3

Packing

Tube packing, single box packing or other industrial packing are all available.Special requirements should be mentioned in the order
