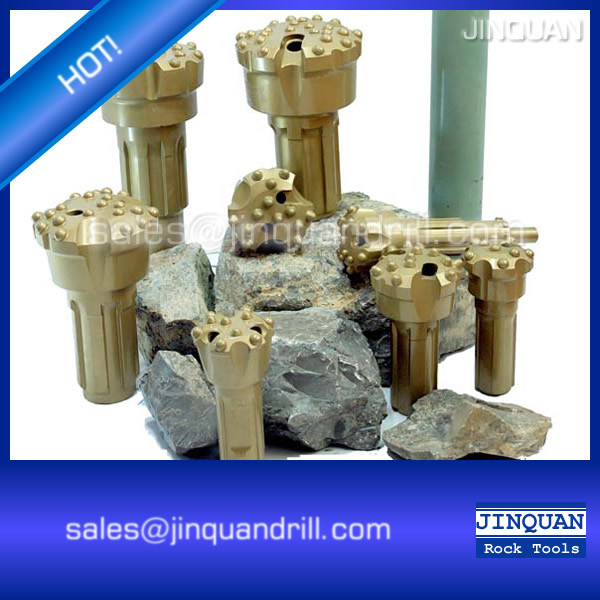

Odex Drilling Tools Odex Bits Overburden DTH Bits
Odex Drilling Tools Odex Bits Overburden DTH Bits
Specifications
Place of Origin :
China
Brand Name :
Jinquan
Certification :
ISO9001:2008
Model Number :
DHD340A, DHD350R, DHD360, DHD380; Cop32, Cop34, Cop44, Cop54, Cop64, Cop84; Mission 40, Mission 50 , Mission 60, Mission80; SD4, SD5, SD6, SD8; TD40, QL50, QL60, QL80; BR2, BR3.
Other Names :
Odex Drilling Systems,Odex DTH Bits,Overburden DTH Bits,Odex140,Odex165
Bit Diameter :
3 inch; 4 inch; 5 inch; 6 inch; 8 inch
Material :
Carbon Steel and Tungsten Carbide Buttons
Technology :
Heat Treatment
Application :
Drilling, Quarrying, DTH Drilling, Water Well Drilling, Oil Drill, Construction, Foundation Drilling
Colour :
Gold, Black, Red, Blue, Yellow
MOQ :
1 Piece
Price :
$500
Packaging Details :
Ply-wooden cases or Iron bundles
Delivery Time :
Within 15 days upon receipt of your 30% deposit
Payment Terms :
T/T, Western Union, Paypal, L/C At Sight
Supply Ability :
100,000 pcs per month
Description
Under reaming systems are the most economical solutions for casing drilling in normal ground conditions. This is particularly true for shallow holes, as is often the case in water well drilling. We have sizes 4", 5", 6" and 8" ODEX systems available.
The ODEX system utilizes an eccentric under reamer to cut a drilled hole ahead of the bottom of the casing. The casing is then simultaneously advanced by a percussive force applied to either the top or bottom of the casing. As the hole is advanced, the drill cuttings are normally removed by air and travel up the inside of the casing in the annular space between the casing ID and the drill rod OD. The ODEX method is highly effective in overburden soils where boulders or gravel layers are present, or when layers of rock must be penetrated. This method also subjects surficial and localized soils to some vibration.
Currently Odex is available from 3" to 8" DTH hammers.
Odex 90 for 3" hammers;
Odex 115 for 3" and 4" hammers;
Odex 140 for 4" and 5" hammers;
Odex 165 for 5" and 6" hammers;
Odex 190 for 6" and 8" hammers;
Odex 240 for 8" hammers.
