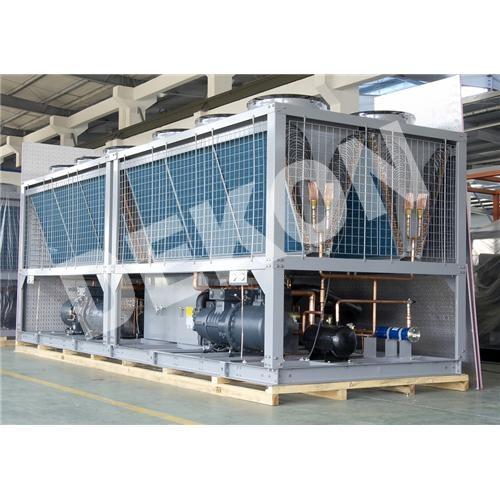

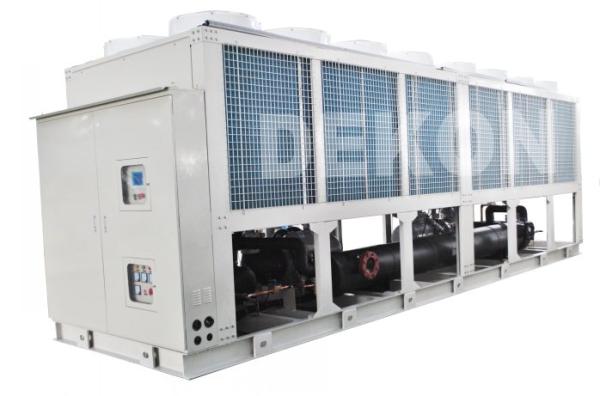

Air cooled screw chiller 200TR with heat pump optional(CMA200DN)
Air cooled screw chiller 200TR with heat pump optional(CMA200DN)
Air cooled screw chiller 200TR with heat pump optional(CMA200DN)
Air cooled screw chiller 200TR with heat pump optional(CMA200DN)
Air cooled screw chiller 200TR with heat pump optional(CMA200DN)
Air cooled screw chiller 200TR with heat pump optional(CMA200DN)
Specifications
Place of Origin :
CHINA
Brand Name :
DEKON
Model Number :
CMA200DN
Certification :
CE
Price :
75000USD
Packaging Details :
Wooden paller
Delivery Time :
35-40days
Payment Terms :
TT 30% FOR DEPOSIT, BALANCED BEFORE SHIPMENT
Supply Ability :
50pcs per month
MOQ :
1
Description

unit style CMA200DN
Cooling capacity kW 700
Input power when cooling kW 222
Nominal absorbed current of unit A 420
COP kW/kW 3.15
Power supply V/P/HZ 3P/380V/50HZ
Max absorbed current of unit A 540
Control type SIEMENZ PLC
Refrigerant type R407C
Discharge volume kg 218
Refrigerant control type THERMAL EXPANSION
Compressor type semi-hermetic screw type
Compressor number set 2
Compressors power input kW 101×2
Compressors absorbed current A 178×2
Capacity stage 12.5~100%
Evaporator type shell and tube type
Water temperature IN/ OUT ℃ 12∕7
Water Flow user side m3/h 120.4
Diameter of water pipe DN DN150
Total water DP kPa 68
Outdoor temperure(design) ℃ 35
Unit working temperature range ℃ 21~43
Condenser
Condenser type copper tube+aluminum fin
Fan type axial type
Fan number 16
Air flow m3/h 20000×16
Fans power input kW 1.25×16
Fan absorbed current A 4×16
Heating recovery
Heating recovery capacity kW 280
Water temperature of IN/OUT ℃ 40/45
Water flow m3/h 48.2
Water DP kPa 50
Diameter of water pipe DN 80
Unit dimensions &Weight
Height mm 2500
Length mm 8160
Depth mm 2232
Unit weight kg 8600
SAFETY DEVICE & ACCESSORY
Pressure switch(High, Low); Fusible Plug; Electronic over current relay
Discharge temp.thermistor; Freeze protetion thermistor; Safety vavle
