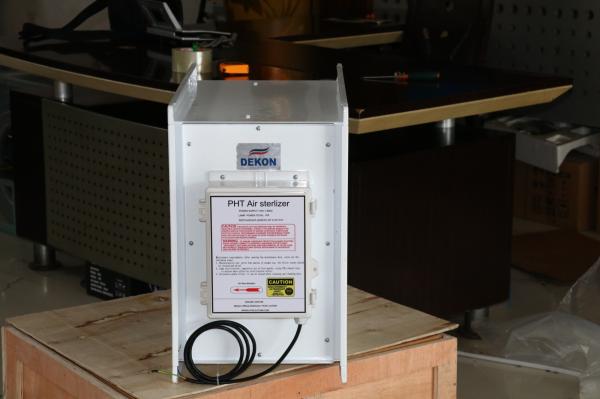

PHT UV Lamp air sterlizer for Rooftop units ducts or AHU System ducts



PHT (Photon Hydroxylation Technology) air sterilization technology utilizes 100
NM-300 NM broadband photon wave tube and photo-catalyst made of special polymer to generate
ions, electrons, low-concentration oxygen ions, hydrogen peroxides, hydroxyl radicals and
abundant negative ions, thereby effectively killing various bacteria and virus in the air and
oxidizing and decomposing toxic and hazardous gases in the air.



1. The purifying substance thus generated is a hydroxyl containing oxidizing agent which can
have advanced oxidization reaction with pollutants, thereby thoroughly removing t


2. Ozone, as the intermediate product of purifying substance, is promptly converted when it is
produced, so that ozone content can be kept at an extremely low level. (Low concentration of
ozone)

3. The catalysis technology of multiple rare metals is utilized to convert ozone and water into
purifying substance. (Zero secondary pollution)

4. 2-year trouble-free operation is guaranteed. The operating power of each cleaning unit does not
exceed 25 W.

5. The plug-in technology is adopted to facilitate installation and removal and it requires no
maintenance by specially assigned people during use.




Functions:

1. Effective killing of harmful microorganisms, such as flu virus, staphylococcus albus, etc.

2. Decomposition of volatile organic compounds: benzene, formaldehyde, ammonia, TVOC and
other chemical organic compounds.

3. Removal of odor: odor produced by human respiration, perspiration, defecation and such
chemical reactions as mildew and decay of substances.

4. Removal of inhalable suspended particulate matters in the air.

Places of installation:
mainly including fan coils, air handling units, ducts of central air
conditioning units.


Applications:
Medical systems: hospitals, pharmaceutical factories, operating rooms, isolation wards, blood
stations, rehabilitation centers, etc.;
Workshops: electronics factories, optics factories, plastic and hardware coating factories,
cosmetics factories, food factories, sanitary ware shops;
Office buildings: telecommunications, government office buildings, banks, etc.;
Public places: stations, airports, hotels, beauty salons, tea houses, supermarkets, libraries,
exhibition halls, etc.;

Air Disinfection Products Ranges:

UVC Kit for mini split air conditioner-Version R - LED strips (with UVA 8pcs and UVC 2pcc) -With wireless remote control - Four TiO₂ photocatalysis film and film protector	UVC Kit for mini split air conditioner-Version F - LED strips (with UVA 8pcs and UVC 2pcc) -With smart App control, panel control and remote control. - Four TiO₂ photocatalysis film and film protector
Plug-in PHT UVC Kit for air ventilation duct - UVC tube 254nm 5W-8W-15W - Push button control - Photocatalysis mesh filter	PHT UVC Kit & Filter fr air ventilation duct Flange mounting design, dimention according to request. - UVC tube 254nm, qty and capacity according to actual dimention. - Active carbon filter - Photocatalysis mesh filter
PHT UVC Kit for FCU. - UVC tube 254nm - Photocatalysis mesh filter	PHT UVC Kit for AHU. Flange mounting design, dimention according to request. - UVC tube 254nm, qty and capacity according to actual dimention. - Active carbon filter optional. - Photocatalysis mesh filter
PLASMA MICRO ELECROSTATIC KIT For Fan Coil Units Air Return Side Single Flange Type; Include Shell, core filter module, control. Size can be designed to fit fan coil air return,thickness has 60mm and 90cm two types.	PLASMA MICRO ELECROSTATIC KIT For Air handling unit Air Return Side Single Flange Type; Include Shell, core filter module, control. Size can be designed to fit AHU,thickness has 60mm and 90cm two types.
PLASMA MICRO ELECROSTATIC KIT For rooftop units, AHU Air Return Side Include Shell, core filter module, control. Size can be designed to fit,thickness has 60mm and 90cm two types.	PLASMA MICRO ELECROSTATIC KIT Ceiling concealed cassette type. Plasma filter thickness has 60mm and 90cm two types.
KAPHOEU CX-03 Autocar air UVC Kit with carbon filter -Air purifier and Sterilizer	KAPHOEU CX-13 Autocar air UVC Kit with HEPA filter-Air purifier and Sterilizer
PHOEU Serie CX-01 Table top UVC Kit with H11 HEPA filter-Air purifier and Sterilizer	P12 CADR 120 m³/h With UVC Lamp and HEPA Filter.-Air purifier and Sterilizer
P30 Series -Air purifier and Sterilizer 310 m³/h Prefilter+HEPA H13 Filter+Carbon filter+photocatalysis filter+UVC lamp+ANION PM2.5 data display optional, APP smart control optional.	Big Eye Series -Air purifier and Sterilizer 210 m³/h & 310 m³/h & 465 m³/h Prefilter+HEPA H 13 Filter+Carbon filter+photocatalysis filter+UVC lamp+ANION Air quality display.
P50 -Air purifier and Sterilizer 550 m³/h Prefilter+HEPA H13 Filter+Carbon filter+photocatalysis filter+UVC lamp+ANION PM2.5 data display, dual display	P60 -Air purifier and Sterilizer 630 m³/h Prefilter+HEPA H13 Filter+Carbon filter+photocatalysis filter+UVC lamp+ANION=Double sides two sets of filtration
