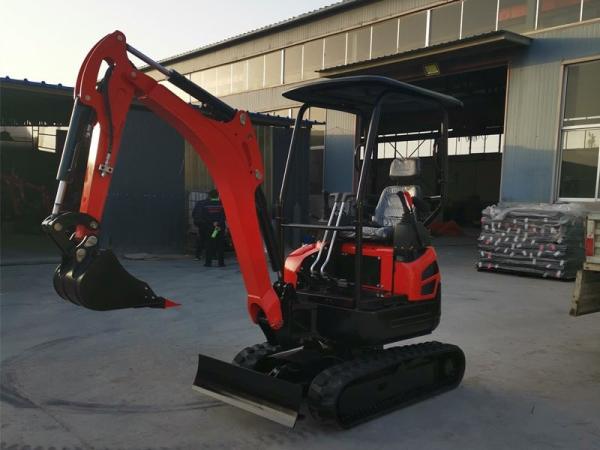

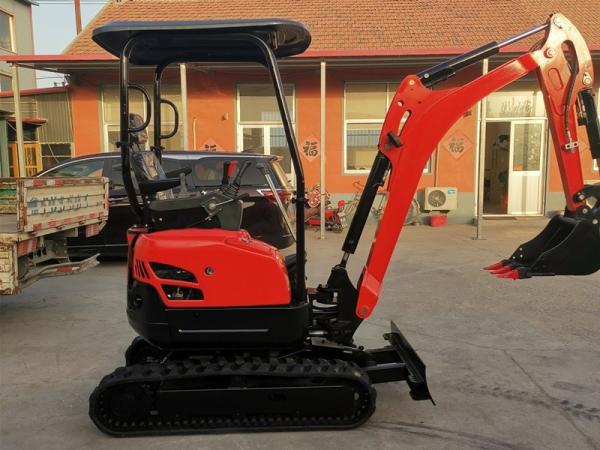

One year warranty 1700kg mini digger excavator with Kubota EPA engine for America
One year warranty 1700kg mini digger excavator with Kubota EPA engine for America
One year warranty 1700kg mini digger excavator with Kubota EPA engine for America
One year warranty 1700kg mini digger excavator with Kubota EPA engine for America
One year warranty 1700kg mini digger excavator with Kubota EPA engine for America
One year warranty 1700kg mini digger excavator with Kubota EPA engine for America
One year warranty 1700kg mini digger excavator with Kubota EPA engine for America
One year warranty 1700kg mini digger excavator with Kubota EPA engine for America
One year warranty 1700kg mini digger excavator with Kubota EPA engine for America
One year warranty 1700kg mini digger excavator with Kubota EPA engine for America
One year warranty 1700kg mini digger excavator with Kubota EPA engine for America
One year warranty 1700kg mini digger excavator with Kubota EPA engine for America
Specifications
Brand Name :
Elite
Model Number :
ET22
Certification :
ISO CE
Place of Origin :
China
MOQ :
1 unit
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 units per week
Delivery Time :
5-7 days
Packaging Details :
wooden box
Color :
red, yellow or per your request
Engine :
10kW
Bucket :
0.05m3
Operating weight :
1780kg
Description

Brand new mini excavator hydraulic pilot with EPA engine

One year warranty 1700kg mini digger excavator with Kubota EPA engine for America

1. Specification of the 1.8ton mini excavator,

性能参数 Engine 单位 Unit 详细参数 Specification
发动机 engine 型号 Model 3TNV70-SSY
发动机 engine 额定功率 Rated power kw 10
发动机 engine 额定转速 Rated speed r/min 2200
速度与挖掘力 Speed 最大行走速度 Maximum walking speed km/h 4.7/9.6
速度与挖掘力 Speed 回转速度 Swing speed rpm rpm 11.5
速度与挖掘力 Speed 最大爬坡能力 Max grade ability 35°
速度与挖掘力 Speed 铲斗挖掘力 Bucket digging force kn kn 20
整机重量 Machine weight kg 1780
标准铲斗容量 Standard shovel capacity m³ 0.05
工作范围 Operating range
最大挖掘深度 Max diggging depth mm 2200
最大挖掘高度 Max digging height mm 3650
最大卸载高度 Max dumping height mm 2500
最大垂直挖掘深度 Max digging depth mm 1700
推土铲最大提升高度 Minimum turning radius mm 236
推土铲最大挖掘深度 Maximum lift of dozer mm 161
标准铲斗口径尺寸(宽) Standard bucket size mm 450
外形尺寸(长X宽X高) External dimension(LXWXH) mm 3800X1050-1300X2345
发动机engine Yanmar 3TNV70-SSY
分配器Distributor Taifeng
回转马达Rotary motor Eaton
行走马达Travel motor Likechuan
齿轮泵Gear pump Taifeng
中央回转接头Central swivel joint Jiukai
行走双联阀,推土阀,侧摆控制阀,破碎锤
控制阀 Control valve North Heavy Industry
液压油管Hydraulic oil pipe No. 6 rubber factory
油缸Cylinder Linyi
对丝接头Wire connector #40 H type
行走模式Walking mode Full hydraulic
履带track Rubber or steel track

One year warranty 1700kg mini digger excavator with Kubota EPA engine for America One year warranty 1700kg mini digger excavator with Kubota EPA engine for America
One year warranty 1700kg mini digger excavator with Kubota EPA engine for America One year warranty 1700kg mini digger excavator with Kubota EPA engine for America

2. Package of mini digger,

packed in wooden box and shipping in container.

One year warranty 1700kg mini digger excavator with Kubota EPA engine for America

3. Small excavator factory view,

One year warranty 1700kg mini digger excavator with Kubota EPA engine for America

One year warranty 1700kg mini digger excavator with Kubota EPA engine for America

We are professional manufacturer of mini digger with 10 years experience.

We provide one year warranty for our excavator.

Wlelcome to contact anytime.

Tel/whatsapp: 008615066278170.

Email: eric@china-elitemachinery.com

Qingdao Elite Machinery Co., Ltd

www.china-elitemachinery.com
