Fast Delivery Concrete Mixer Truck 2 Cubic Concrete Mixer Self Loading Cement Mixer Truck
Fast Delivery Concrete Mixer Truck 2 Cubic Concrete Mixer Self Loading Cement Mixer Truck
Fast Delivery Concrete Mixer Truck 2 Cubic Concrete Mixer Self Loading Cement Mixer Truck
Fast Delivery Concrete Mixer Truck 2 Cubic Concrete Mixer Self Loading Cement Mixer Truck
Fast Delivery Concrete Mixer Truck 2 Cubic Concrete Mixer Self Loading Cement Mixer Truck
Fast Delivery Concrete Mixer Truck 2 Cubic Concrete Mixer Self Loading Cement Mixer Truck
Fast Delivery Concrete Mixer Truck 2 Cubic Concrete Mixer Self Loading Cement Mixer Truck
Fast Delivery Concrete Mixer Truck 2 Cubic Concrete Mixer Self Loading Cement Mixer Truck
Fast Delivery Concrete Mixer Truck 2 Cubic Concrete Mixer Self Loading Cement Mixer Truck
Fast Delivery Concrete Mixer Truck 2 Cubic Concrete Mixer Self Loading Cement Mixer Truck
Fast Delivery Concrete Mixer Truck 2 Cubic Concrete Mixer Self Loading Cement Mixer Truck
Fast Delivery Concrete Mixer Truck 2 Cubic Concrete Mixer Self Loading Cement Mixer Truck
Specifications
Brand Name :
ELITE
Model Number :
2 cubic
Certification :
ISO CE
Place of Origin :
China
MOQ :
1 unit
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 units
Delivery Time :
5-10 days
Packaging Details :
shipping in container
Color :
white, orange or per your request
Engine :
Yuchai 76kW
Driving :
4x4
Mixing volume :
2m3
Weight :
6480kg
Description

2 cubic self loading concrete mixer truck for sale

Fast Delivery Concrete Mixer Truck 2 Cubic Concrete Mixer Self Loading Cement Mixer Truck

Fast Delivery Concrete Mixer Truck 2 Cubic Concrete Mixer Self Loading Cement Mixer Truck

2m3 concrete mixer specification,

Elite self loading concrete mixer truck is used to solve the problem that the prior mixer truck with a single function and can only carry out the concrete conveying task. The self loading mixer truck comprises a mixing body, and the body is equipped with a mixing drum. The drum is driven to rotate by the hydraulic mechanism. The drum is inclined, with an opening at the highest end. At the opening there is a feeding port fixed to the mixer truck. The drum is equipped with stirring screws. The two sides of the mixing drum are symmetrically provided with a boom. One end of the boom is hinged on the mixing body, and the body is further provided with a lifting cylinder to lift and lower the booms. A hopper is fixed between the two booms, and is provided with a door at the end near the feeding port. A discharging cylinder for controlling opening and closing of the door is provided on the hopper. The fully automatic loading mixer has a simple structure and is easy to use. It can realize the loading, mixing and unloading of concrete without excessive staff operation, which is economical and practical.

Engine YN38GBZ 76kW
Gear box 4 forward and 4 reverse
Wheel base 2250mm
Kerb weight 6480kg
Gradeability 30°
Min turning radius 4250mm
Bucket capacity 0.45m3
Drum rotating speed 12-24rpm
Water tank 540L
Dimension 5300x2450x2850mm


Fast Delivery Concrete Mixer Truck 2 Cubic Concrete Mixer Self Loading Cement Mixer TruckFast Delivery Concrete Mixer Truck 2 Cubic Concrete Mixer Self Loading Cement Mixer Truck

Fast Delivery Concrete Mixer Truck 2 Cubic Concrete Mixer Self Loading Cement Mixer Truck

Fast Delivery Concrete Mixer Truck 2 Cubic Concrete Mixer Self Loading Cement Mixer Truck

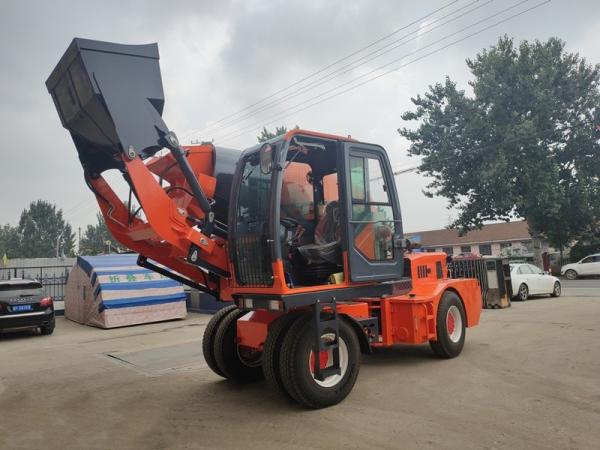

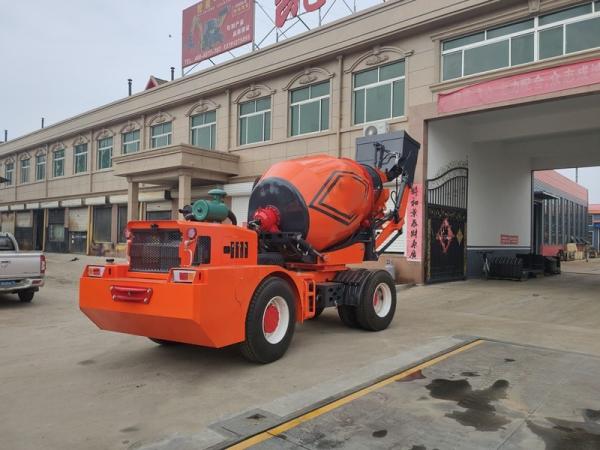

Working cases of self loading concrete mixer,

Fast Delivery Concrete Mixer Truck 2 Cubic Concrete Mixer Self Loading Cement Mixer Truck

Fast Delivery Concrete Mixer Truck 2 Cubic Concrete Mixer Self Loading Cement Mixer Truck

We are professional manufacturer of self loading concrete mixer with 10 years experience.

We provide one year warranty. Wlelcome to contact anytime.

Tel/whatsapp: 008615066278170.

Email: eric@china-elitemachinery.com

Qingdao Elite Machinery Co., Ltd

www.china-elitemachinery.com
