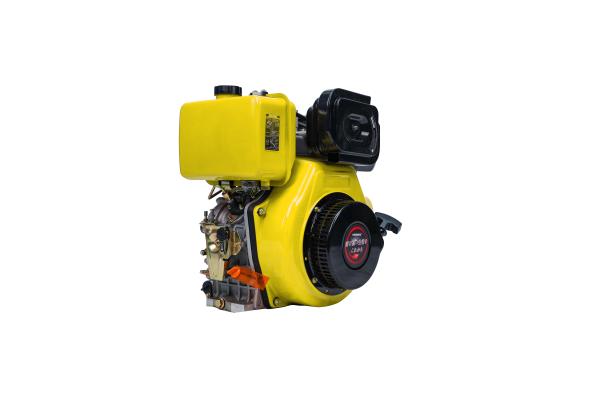

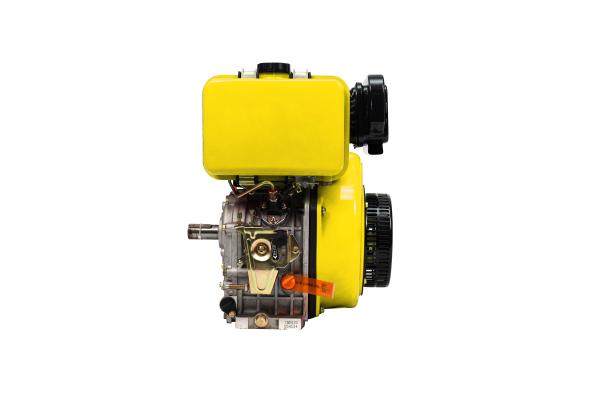

Single Cylinder Air Cooled Diesel Engine KM186F 5.5KW/ 3000rpm for Boats Power Supply
Single Cylinder Air Cooled Diesel Engine KM186F 5.5KW/ 3000rpm for Boats Power Supply
Single Cylinder Air Cooled Diesel Engine KM186F 5.5KW/ 3000rpm for Boats Power Supply
Single Cylinder Air Cooled Diesel Engine KM186F 5.5KW/ 3000rpm for Boats Power Supply
Specifications
Brand Name :
Keypor
Model Number :
KM186F
Certification :
ISO9001, CE,
Place of Origin :
CHINA
MOQ :
10 SETS
Price :
USD 150-180 / SET
Payment Terms :
L/C, T/T
Supply Ability :
2000 sets/ month
Delivery Time :
7-10 days
Packaging Details :
Carton packing
cylinder :
single cylinder or double cylinder
Engine :
air cooled engine
Engine Model :
173F/178F/186F/188F/190F192F/195F/1100F
Speed :
3000rpm/ 3600rpm
Description

Single Cylinder Air Cooled Diesel Engine KM186F 5.5KW/ 3000rpm for Boats Power Supply

Model KM170F/FE KM178F/FE KM186FA/FAE KM188FA/FAE KM190F/FE KM192F/FE KM195F/FE KM1100FE
Engine Type 1-Cylinder,4-Stroke,Air-cooled ,Veritical
Combustion System Direct injection
Broke * Stroke[mm] 70 * 55 78 * 62 86 * 72 88 * 75 90 * 75 92 * 75 95 * 75 100 * 85
Displacement 0.211 0.296 0.418 0.456 0.477 0.499 0.532 0.667
Compression Ratio 20:01 20:01 19.5:1 19.5:1 19.5:1 19.5:1 19.5:1 19.5:1
Rated Speed[rpm] 3000 3600 3000 3600 3000 3600 3000 3600 3000 3600 3000 3600 3000 3600 3000 3600
Rated Power[Kw] 2.5 2.8 3.7 4.0 5.8 6.6 6.6 6.9 6.7 7.3 7.6 8.6 8.1 8.7 10.5 10.5
Starting System F: Recoil starter E: Electric starter Electric starter
Fuel Tank Capacity [L] 2.5 3.5 5.5 5.5 5.5 5.5 5.5 5.5
Lube[L] 0.75 1.1 1.65 1.65 1.65 1.65 1.65 1.65

Fuel Consumpition

[g/kwh ]

 275 280 280 300 280 300
Fuel 0#(summer), -10#(winter) Diesel oil
Lube SAE10W30 ( above CD grade )
Overall Diemension[mm] (L*W*H) 335*380*415 383*421*450 417*441*494 417*441*494 417*441*494 417*441*494 417*441*494 417*441*494
N.W[Kg] F:27 E:31 F: 33 E: 38 F: 48 E: 53 F:48 E:53 F:49 E:54 F:50 E:55 F:50 E:55 62
Rotation Direction(View from Flywheel) Clockwise

Single Cylinder Air Cooled Diesel Engine KM186F 5.5KW/ 3000rpm for Boats Power Supply
