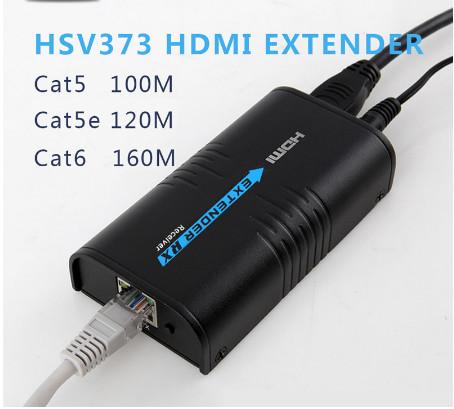

HSV373 DC 5V -12V hdmi extender TCP IP 120m factory hdmi extender RJ45
HSV373 DC 5V -12V hdmi extender TCP IP 120m factory hdmi extender RJ45
HSV373 DC 5V -12V hdmi extender TCP IP 120m factory hdmi extender RJ45
HSV373 DC 5V -12V hdmi extender TCP IP 120m factory hdmi extender RJ45
HSV373 DC 5V -12V hdmi extender TCP IP 120m factory hdmi extender RJ45
HSV373 DC 5V -12V hdmi extender TCP IP 120m factory hdmi extender RJ45
HSV373 DC 5V -12V hdmi extender TCP IP 120m factory hdmi extender RJ45
HSV373 DC 5V -12V hdmi extender TCP IP 120m factory hdmi extender RJ45
Specifications
Brand Name :
OHO
Model Number :
HSV373
Certification :
CE ROHS
Place of Origin :
Shenzhen
MOQ :
10
Price :
25-29usd/pc
Payment Terms :
T/T, Western Union
Supply Ability :
50000pcs/week
Packaging Details :
android hdmi dongle ethernet Standard package or package on demand LKV373 High Performance OEM/ODM HDMI Extender 120M/ android hdmi dongle ethernet
Linker connection: :
STP UTP Cat5
n/Output Resolution :
480i, 576i, 720p 50/59.94,60 ,1080i 50/59.94/60,
Power Supplyc :
DC 5V -12V
Operating Temperature: :
0°C ~ 40°C / 32°F ~ 104°F
Description

Wholesale hdmi extender TCP IP 120m from factory hdmi extender RJ45

hdmi extender RJ45

This product not only can work as other normal HDMI extender by CAT5/6 cable up to 120 meters, but also can transmit HDMI data over local network. The data could be transmitted over switch, router and other ethernet device, and extend the transfer distance to over 20km.

It also could work in broadcast mode, like HDMI splitter, broadcast HDMI signal from one sender to multiple receivers.

hdmi extender/ hdmi extender RJ45

Item hdmi extender/ android hdmi dongle ethernet
Power Input DC5V-12v
Power Consumption

3W
HDMI Port HDMI A type Female
Link Connection UTP/STP CAT5e/6
Working Mode Point to Point mode
Broadcast mode( Point to MultiPoint)
Cascade mode
Transfer Distance Point to Point Mode:
CAT5 80meters maximum
CAT5e 100meters maximum
CAT6 120meters maximum

Cascade Mode:
20Km maximum
Resolution Supported 1080p@50Hz / 1080p@60Hz / 1080p@24Hz 3D
1080i@50Hz / 1080i@60Hz
720p@50Hz / 720p@60Hz / 720p@50Hz 3D / 720p@60Hz 3D
576i@50Hz / 576p@50Hz / 480i@50Hz / 480p@60Hz
Ethernet Bandwidth 100M

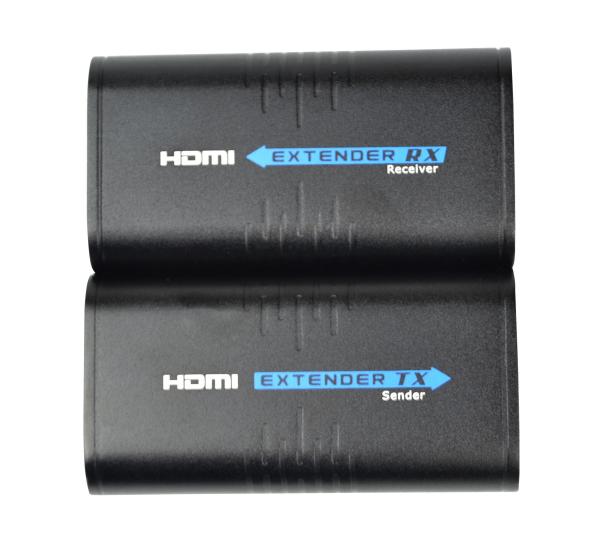

Package Contents Sender *1
Receiver *1
Power Adaptor *2
Manual *1
Operating Temperature 0°C ~ 60°C
Humidity 20% ~ 90% RH(Non-condensing)

hdmi extender /hdmi extender RJ45

1. Working as traditional point-to-point HDMI extender over CAT5/CAT5E/CAT6 cable.

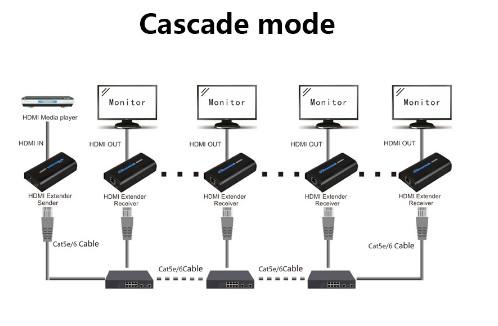

2. Extend transmit distance to 20Km over cascaded ethernet switch/router.

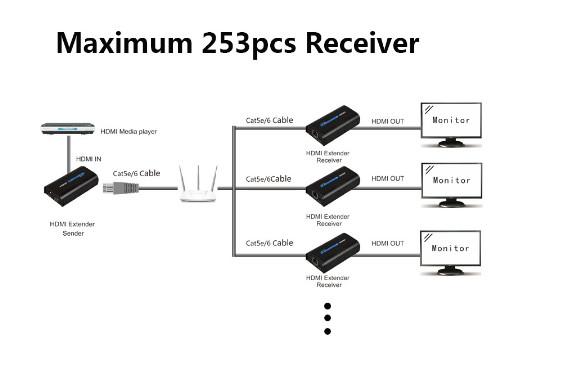

3. Broadcast mode transmit HDMI signal from one source to multiple receivers.
4. Flexible function combination suitable for complex HDMI applications.
5. Comply with IEEE-568B
6. Supports resolution upt to 1080p FULL HD

hdmi extender/ hdmi extender RJ45

hdmi extender/hdmi extender RJ45

--- Shippment of hdmi extender/ hdmi extender RJ45

1. Item(s) will be shipped out normally within 1 working day and no later than 2 business days after the payment is received. Tracking number is provided.

2. Payment term can be DHL,EMS,FEDEX,UPS.etc

---Package contents of hdmi extender/hdmi extender RJ45

1. 1 x SDI to HDMI converter
2. 1 x Power adapter
3. 1 x User manual ---Package

---Warranty of hdmi extender/hdmi extender RJ45

We offer 12 months guanteen. During the guarantee period,you can send back the damanged goods and we will send you good one with your next order. But this does not cover human damage or misuse of product.

We warmly welcome customization!!

Please contact with me for more information!!
