Full Automatic 20-120m/Min API Tube Mill For 3PE Anticorrosive Steel Pipe
Full Automatic 20-120m/Min API Tube Mill For 3PE Anticorrosive Steel Pipe
Full Automatic 20-120m/Min API Tube Mill For 3PE Anticorrosive Steel Pipe
Full Automatic 20-120m/Min API Tube Mill For 3PE Anticorrosive Steel Pipe
Full Automatic 20-120m/Min API Tube Mill For 3PE Anticorrosive Steel Pipe
Full Automatic 20-120m/Min API Tube Mill For 3PE Anticorrosive Steel Pipe
Specifications
Brand Name :
ZTZG
Model Number :
ERW140 to ERW720
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets/year
Delivery Time :
120 days
Packaging Details :
All mechanical equipment is nude packing and electrical parts are packed in wooden cases
Item :
ERW165 API tube mill
Raw Material :
API, Carbon steel, black steel, stainless steel, Cold roll, ow-carbon Steel,HR carbon steel,Q235,S235
Diameter :
76-165mm
Thickness :
2-6mm
Prodution Capability :
20-120m/min
Applicable Industri :
oil, gas transport
Welding type :
Solid-state high frequency welding
After Warranty Serve :
Video technical support, Online support, Spare parts
Description

High Grade Steel Pipe API Standard Carbon Steel Pipe Making Machine API 5L Standard Tube Mill

Product Introduction

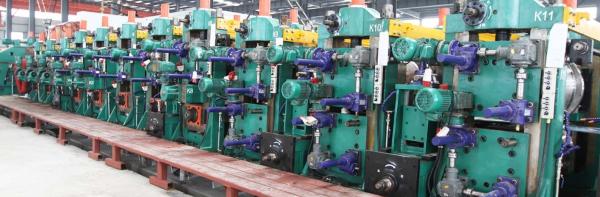

High-frequency welded pipe machinery is the production of low carbon low alloy steel material welded pipe special equipment, the specifications of the steel belt feeding machine will do the trick, by forming roller steel with curled up into a tube, then using high-frequency proximity effect and skin effect for tube side heat quickly to welding temperature, and under the squeezing roller extrusion complete welding, then through cooling, Sizing and roughing to the required size of steel pipe. The company's roll forming unit, FFX forming unit, roll row forming unit can produce X80, J55 API oil casing, oil, and gas pipe, in line with API-5L, API-5CT, and other standards.

Application

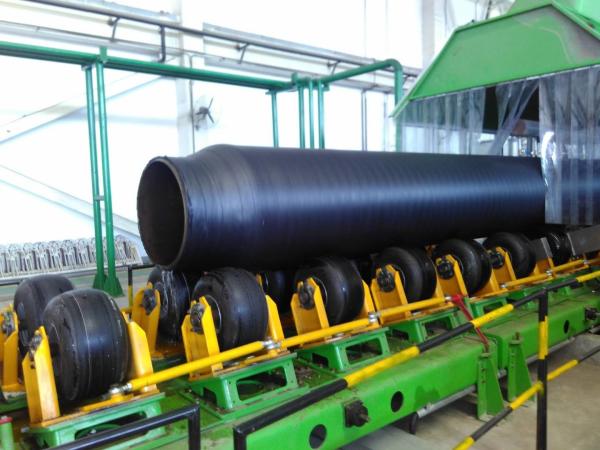

3PE anticorrosive steel pipe is a 3-layer structure polyethylene coating (MAPEC) anticorrosive steel pipe. It is a kind of anticorrosive pipe commonly used in China, generally refers to the outer wall of steel pipe anticorrosive.

Full Automatic 20-120m/Min API Tube Mill For 3PE Anticorrosive Steel Pipe

3PE anticorrosion generally consists of 3 layers of structure:

First layer epoxy powder (FBE>100um)

The second layer adhesive (AD) 170 ~ 250um

The third layer of polyethylene (PE) 1.8 ~ 3.7mm

ZTZG Company Introduction
Full Automatic 20-120m/Min API Tube Mill For 3PE Anticorrosive Steel Pipe
Full Automatic 20-120m/Min API Tube Mill For 3PE Anticorrosive Steel Pipe
Full Automatic 20-120m/Min API Tube Mill For 3PE Anticorrosive Steel Pipe
Full Automatic 20-120m/Min API Tube Mill For 3PE Anticorrosive Steel Pipe

FAQ

Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Moulding ). We also have our own R&D department. Welcome to visit us.
Q: What kind of payment term do you do?
A: We do T/T.
Q: What info do you need before giving me the price and proposal?
A: Since we design individual machines based on our customer's requirements, we need your desired products' basic dimensions, including all the pipe diameter(or tube length), thickness range, usage, raw material steel grade, coil weight, and degree of automation.
Q: What should I do if I just start a new business?
A: Contact us immediately, we provide a free consultant for pre-sales service. Also, we can help you solve the raw material (steel coil) purchase, worker training, international market price, and more.
Q: How do you do QA?
A: We have a special team to do strict QA, this is one of our strengths:
(1)Every gearbox will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for centering jumpiness.
(3)Every roller will be checked to make sure it's in the range of tolerance critical parts will be inspected for all dimensions.
Q: Why I should choose you? what are the differences between you and other Chinese suppliers?
A: We are concentrating on pipe-making machines for more than 20 years. We have constructed many steady trading partners in Asia, Africa, the middle east, Europe, and South America throughout the years. Our innovative designed production line and every single unit of the production line are economical and practical.

Model List
Model Round pipe
mm		 Square pipe
mm		 Thickness
mm		 Working spead
m/min
ERW140 Ф60-Ф140 50x50-110x110 2.0-5.0 60
ERW165 Ф76-Ф165 60x60-130x130 2.0-6.0 50
ERW219 Ф89-Ф219 70x70-170x170 2.0-8.0 50
ERW273 Ф114-Ф273 90x90-210x210 3.0-10.0 45
ERW325 Ф140-Ф325 110x110-250x250 4.0-12.7 40
ERW377 Ф165-Ф377 130x130-280x280 4.0-14.0 35
ERW406 Ф219-Ф406 170x170-330x330 6.0-16.0 30
ERW508 Ф273-Ф508 210x210-400x400 6.0-18.0 25
ERW660 Ф325-Ф660 250x250-500x500 6.0-20.0 20
ERW720 Ф355-Ф720 300x300-600x600 6.0-22.0 20
