ERW Black Steel Square Rectangular Tube Pipe Mill Pipe Making Machine
ERW Black Steel Square Rectangular Tube Pipe Mill Pipe Making Machine
ERW Black Steel Square Rectangular Tube Pipe Mill Pipe Making Machine
ERW Black Steel Square Rectangular Tube Pipe Mill Pipe Making Machine
ERW Black Steel Square Rectangular Tube Pipe Mill Pipe Making Machine
ERW Black Steel Square Rectangular Tube Pipe Mill Pipe Making Machine
ERW Black Steel Square Rectangular Tube Pipe Mill Pipe Making Machine
ERW Black Steel Square Rectangular Tube Pipe Mill Pipe Making Machine
Specifications
Brand Name :
ZTZG
Model Number :
ERW165
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets/year
Delivery Time :
90 days
Packaging Details :
All mechanical equipment is nude packing and electrical parts are packed in wooden cases
Product Name :
ERW Black Steel Square Rectangular Tube Pipe Mill Pipe Making Machine
Voltage :
220/380/415/420/440V
Length :
6m-12m
Thickness :
2.0mm-6.0mm
Pipe shape :
Rectangular
Mill installed capacity :
220 kw
Pipe Material :
Carbon Steel Coil
Production Speed :
20-50 m/min
Technology :
ZTF,square-square (DSS) technique
Products :
architectural structure tubes, low-pressure liquid tubes
Line Area :
80m(length) ×6.5m (width)
Service :
Free technical consultation online
Description

ERW Black Steel Square Rectangular Tube Pipe Mill Pipe Making Machine

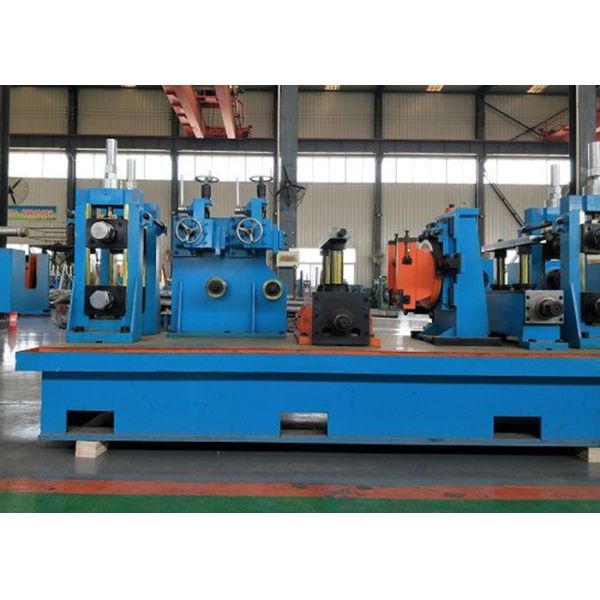

ERW165 high frequency longitudinal welded pipe production line / pipe making machine / tube mill is designed to produce welded pipes of 76mm-165mm in OD and 2.0mm-6.0mm in wall thickness, as well as corresponding square and rectangular pipe.

ERW Black Steel Square Rectangular Tube Pipe Mill Pipe Making Machine

ERW Black Steel Square Rectangular Tube Pipe Mill Pipe Making Machine

Advantage:

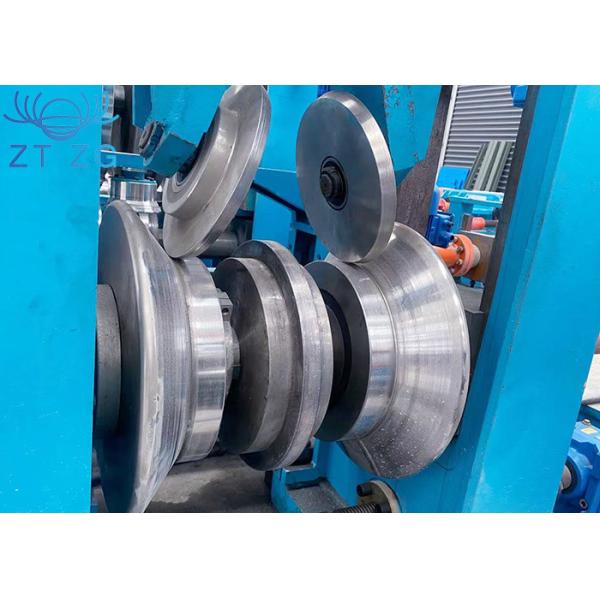

When producing round pipe, it can utilize ZTF forming technique

When producing square & rectangular tube, it can utilize directly square-square (DSS) technique

ERW Black Steel Square Rectangular Tube Pipe Mill Pipe Making Machine

Basic Technical Information of Welded Pipe Production Line

Product&yield

Round Pipe

76mm-165mm Thickness:2.0mm-6.0mm
Square & rectangle tube

60mm×60mm -130mm×130mm Thickness:2.0mm-5.0mm

Length

6m-12m Length Tolerance: ±3mm

Production Speed

20-50 m/min

Production capacity

30,000ton/year

Consumption

Mill installed capacity

220 kw

Line Area

85m(length) ×7m (width)

worker

6-8 workers

Raw Material

Carbon Steel coil

Carbon steel coil Q235B(ASTM GR·D,σs 230)

Width

240mm-520mm Thickness: 2.0mm-6.0mm

Coil ID

580-700mm

Coil OD

Max 1800mm

Coil Weight

6.0t

Technical flow

Scrolling up→ Uncoiling → Shear and Welding→ Spiral accumulator→ Forming → H.F. induction welding→ External burr removing→ Cooling → Sizing→ Flying saw → Run out table →Inspecting→ Packing→ Warehouse

We can also design square tube machine depends on customer’s requirement.
