Specifications
Brand Name :
ZTZG
Model Number :
DSS200
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets/year
Delivery Time :
90 days
Packaging Details :
All mechanical equipment is nude packing and electrical parts are packed in wooden cases
Product Name :
Blue Galvanized Steel Pipe Rail Tube Direct Square To Square Pipe Mill
Condition :
New
Type :
Pipe Production Line
Pipe size :
90mm×90mm-210mm×210mm
Thickness :
1.5-10.0mm
Pipe Shape :
square rectangular
Raw material :
Q235 Steel
Voltage :
220/380/415/420/440V
Color :
Grey or as your require
Warranty :
One Year
After-sales Service Provided :
Engineers available to service machinery overseas
Description

Blue Galvanized Steel Pipe Rail Tube Direct Square To Square Pipe Mill

Introduction of Direct Square-to-Square(DSS) Pipe Mill:

DSS technique directly reels the strip steel into square tubes. It has several distinct advantages:

1. It adapts the multi-point bending method, which avoids the axial force and side abrasion, reduces the forming step, and ensures high quality.
2. Compare to Round-to-Square(RS) forming technique, DSS creates better outer edge and smaller inner arc for the cross section of the tube, and the brim is flatter with more regular outlook.
3. With our new DSS-3 technique, only one set of rollers is needed for the entire mill with no need for any roller or spacer replacement, which achieves full-automatic adjustment for roller positions, significantly increasing production efficiency and reducing labor cost and risk of hazard.

200×200 Square Tube Mill Product Parameter:

Product & yield Square & rectangle tube 90mm×90mm-210mm×210mm Thickness:1.5mm-10.0mm
Length 6m-12m Length Tolerance:±3mm
Production Speed 45-65 m/min
Production Capacity 30000ton/year
Consumption Mill Installed Capacity 220kw
Line Area 85m(length)×7m(width)
Worker 6-8 workers
Raw Material Carbon Steel Coil Carbon steel coil Q235B(ASTM GR·D,σs 230)
Width 360mm-840mm Thickness:1.5mm-10.0mm
Coil ID 580-700mm
Coil OD Max 2000mm
Coil Weight 30.0t

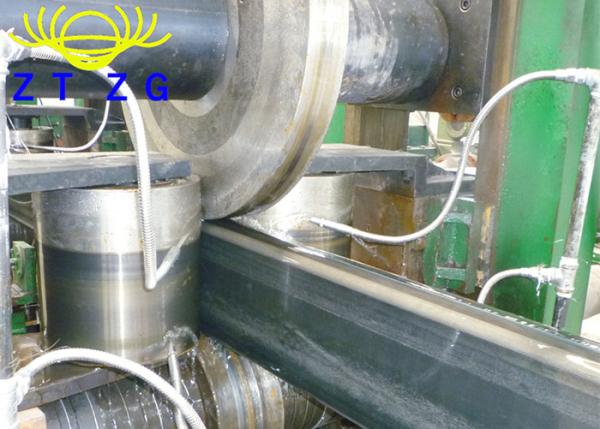

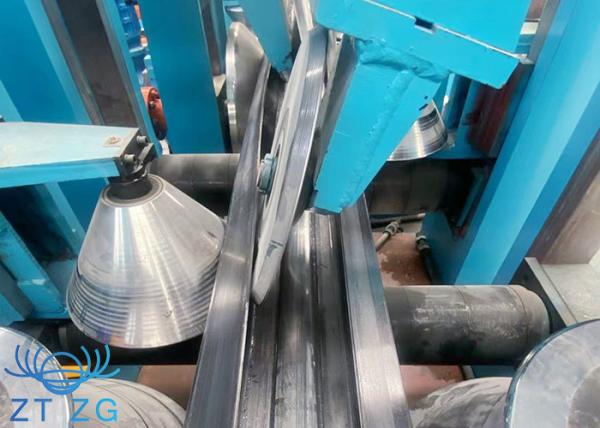

Square Tube Mill Details Images:

Blue Galvanized Steel Pipe Rail Tube Direct Square To Square Pipe Mill

Blue Galvanized Steel Pipe Rail Tube Direct Square To Square Pipe Mill

Blue Galvanized Steel Pipe Rail Tube Direct Square To Square Pipe Mill

Blue Galvanized Steel Pipe Rail Tube Direct Square To Square Pipe Mill

Blue Galvanized Steel Pipe Rail Tube Direct Square To Square Pipe Mill

Blue Galvanized Steel Pipe Rail Tube Direct Square To Square Pipe Mill

Blue Galvanized Steel Pipe Rail Tube Direct Square To Square Pipe Mill

Blue Galvanized Steel Pipe Rail Tube Direct Square To Square Pipe Mill

Blue Galvanized Steel Pipe Rail Tube Direct Square To Square Pipe Mill

Blue Galvanized Steel Pipe Rail Tube Direct Square To Square Pipe Mill

Blue Galvanized Steel Pipe Rail Tube Direct Square To Square Pipe Mill

Production Process


Blue Galvanized Steel Pipe Rail Tube Direct Square To Square Pipe Mill
