H.F. Straight Welded Direct Square Rectangular MS Pipe Making Machine
H.F. Straight Welded Direct Square Rectangular MS Pipe Making Machine
H.F. Straight Welded Direct Square Rectangular MS Pipe Making Machine
H.F. Straight Welded Direct Square Rectangular MS Pipe Making Machine
H.F. Straight Welded Direct Square Rectangular MS Pipe Making Machine
H.F. Straight Welded Direct Square Rectangular MS Pipe Making Machine
H.F. Straight Welded Direct Square Rectangular MS Pipe Making Machine
H.F. Straight Welded Direct Square Rectangular MS Pipe Making Machine
Specifications
Brand Name :
ZTZG
Model Number :
ERW377
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets/year
Delivery Time :
90 days
Packaging Details :
All mechanical equipment is nude packing and electrical parts are packed in wooden cases
Product Name :
H.F. Straight Welded Direct Square Rectangular MS Pipe Making Machine
Pipe Material :
Carbon Steel Coil
Square & rectangle tube :
130mm×130mm -280mm×280mm
Thickness :
4.0mm-14.0mm
Pipe shape :
Square, Rectangular
Mill installed capacity :
580 kw
Line Area :
145m(length) ×13m (width)
Production Speed :
35 m/min
Technology :
ZTF,directly square-to-square(DSS) technique,Round-to-square
Products :
coal transmission belt tubes, drive shaft tubes, guardrail tubes, tower footing tubes
After-sales service provided :
Engineers available to service machinery overseas
Description

H.F. Straight Welded Direct Square Rectangular MS Pipe Making Machine

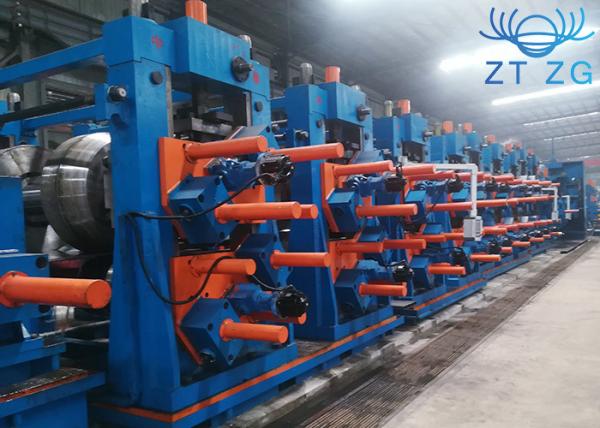

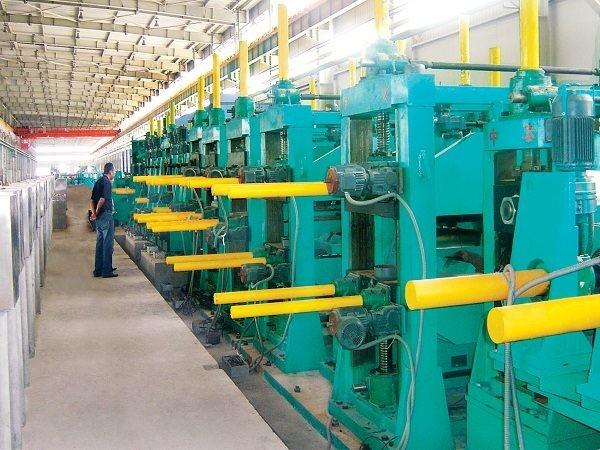

ERW377 high frequency longitudinal welded pipe production line / pipe making machine / tube mill is designed to produce welded pipes of 165mm-377mm in OD and 4.0mm-14.0mm in wall thickness, as well as corresponding square and rectangular pipe.

H.F. Straight Welded Direct Square Rectangular MS Pipe Making Machine

H.F. Straight Welded Direct Square Rectangular MS Pipe Making Machine

Advantage:

When producing round pipe, it can utilize ZTF forming technique

When producing square & rectangular tube, it can utilize directly square-square (DSS) technique

Products:

Architectural structure pipes, API pipes, tower footing tubes, automobile beam steel pipe and other products.

H.F. Straight Welded Direct Square Rectangular MS Pipe Making Machine

Basic Technical Information of Welded Pipe Production Line

Product&yield

Round Pipe

165mm-377mm Thickness: 4.0mm-14.0mm
Square & rectangle tube

130mm×130mm -280mm×280mm Thickness: 4.0mm-14.0mm

Length

6m-12m Length Tolerance: ±3mm

Production Speed

35 m/min

Production capacity

120,000ton/year

Consumption

Mill installed capacity

580 kw

Line Area

145m(length) ×13m (width)

worker

6-8 workers

Raw Material

Carbon Steel coil

Carbon steel coil Q235B(ASTM GR·D,σs 230)

Width

520mm-1190mm Thickness: 4.0mm-14.0mm

Coil ID

580-760mm

Coil OD

Max 2100mm

Coil Weight

25.0t

Technical flow

Scrolling up→ Uncoiling → Shear and Welding→ Spiral accumulator→ Forming → H.F. induction welding→ External burr removing→ Cooling → Sizing→ Flying saw → Run out table →Inspecting→ Packing→ Warehouse

We can also design square tube machine depends on customer’s requirement.
