Automatic High Speed ERW Steel Welded Pipe Making Machine Metal Tube Mill
Automatic High Speed ERW Steel Welded Pipe Making Machine Metal Tube Mill
Automatic High Speed ERW Steel Welded Pipe Making Machine Metal Tube Mill
Automatic High Speed ERW Steel Welded Pipe Making Machine Metal Tube Mill
Automatic High Speed ERW Steel Welded Pipe Making Machine Metal Tube Mill
Automatic High Speed ERW Steel Welded Pipe Making Machine Metal Tube Mill
Automatic High Speed ERW Steel Welded Pipe Making Machine Metal Tube Mill
Automatic High Speed ERW Steel Welded Pipe Making Machine Metal Tube Mill
Specifications
Brand Name :
ZTZG
Model Number :
ERW273
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets/year
Delivery Time :
90 days
Packaging Details :
All mechanical equipment is nude packing and electrical parts are packed in wooden cases
Product Name :
Automatic High Speed ERW Steel Welded Pipe Making Machine Metal Tube Mill
Pipe Material :
Carbon Steel Coil
Length :
6m-12m
Thickness :
2.0mm-6.0mm
Pipe shape :
Rectangular
Mill installed capacity :
350 kw
Voltage :
220/380/415/420/440V
Production Speed :
20-45 m/min
Technology :
ZTF,directly square-to-square(DSS) technique
Products :
coal transmission belt tubes, drive shaft tubes, guardrail tubes, tower footing tubes
Line Area :
80m(length) ×6.5m (width)
Service :
Free technical consultation online
Description

Automatic High Speed ERW Steel Welded Pipe Making Machine Metal Tube Mill

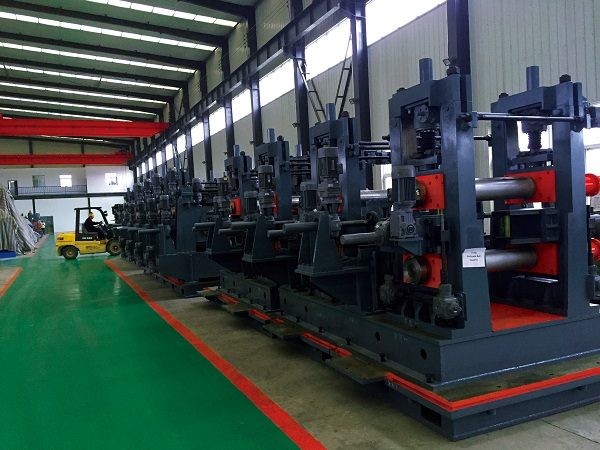

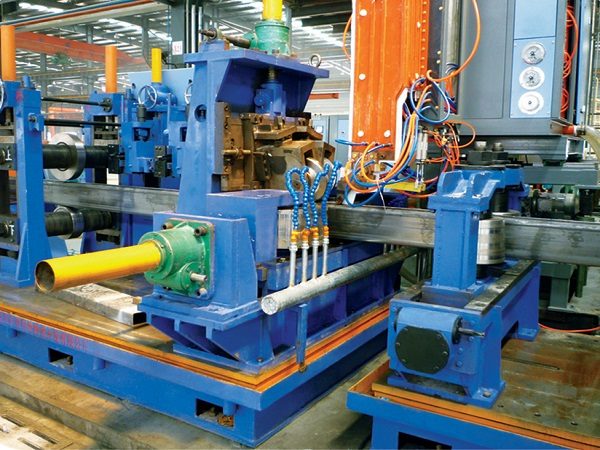

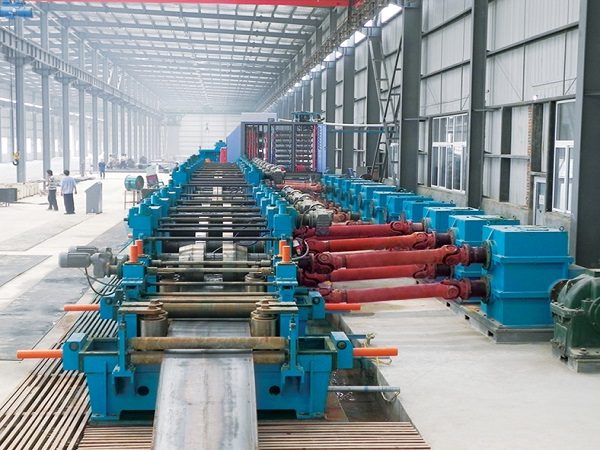

ERW273 high frequency longitudinal welded pipe production line / pipe making machine / tube mill is designed to produce welded pipes of 114mm-273mm in OD and 3.0mm-10.0mm in wall thickness, as well as corresponding square and rectangular pipe.

Automatic High Speed ERW Steel Welded Pipe Making Machine Metal Tube Mill

Automatic High Speed ERW Steel Welded Pipe Making Machine Metal Tube Mill

Advantage:

When producing round pipe, it can utilize ZTF forming technique

When producing square & rectangular tube, it can utilize directly square-square (DSS) technique

Automatic High Speed ERW Steel Welded Pipe Making Machine Metal Tube Mill

Basic Technical Information of Welded Pipe Production Line

Product&yield

Round Pipe

114mm-273mm Thickness:3.0mm-10.0mm
Square & rectangle tube

90mm×90mm -210mm×210mm Thickness:3.0mm-8.0mm

Length

6m-12m Length Tolerance: ±3mm

Production Speed

20-45 m/min

Production capacity

40,000ton/year

Consumption

Mill installed capacity

350 kw

Line Area

120m(length) ×10m (width)

worker

6-8 workers

Raw Material

Carbon Steel coil

Carbon steel coil Q235B(ASTM GR·D,σs 230)

Width

280mm-690mm Thickness: 2.0mm-8.0mm

Coil ID

570-640mm

Coil OD

Max 1800mm

Coil Weight

15.0t

Technical flow

Scrolling up→ Uncoiling → Shear and Welding→ Spiral accumulator→ Forming → H.F. induction welding→ External burr removing→ Cooling → Sizing→ Flying saw → Run out table →Inspecting→ Packing→ Warehouse

We can also design square tube machine depends on customer’s requirement.
