thickness 0.4- 8.0mm Steel Coil Cutting Machine
thickness 0.4- 8.0mm Steel Coil Cutting Machine
thickness 0.4- 8.0mm Steel Coil Cutting Machine
thickness 0.4- 8.0mm Steel Coil Cutting Machine
thickness 0.4- 8.0mm Steel Coil Cutting Machine
thickness 0.4- 8.0mm Steel Coil Cutting Machine
thickness 0.4- 8.0mm Steel Coil Cutting Machine
thickness 0.4- 8.0mm Steel Coil Cutting Machine
thickness 0.4- 8.0mm Steel Coil Cutting Machine
thickness 0.4- 8.0mm Steel Coil Cutting Machine
thickness 0.4- 8.0mm Steel Coil Cutting Machine
thickness 0.4- 8.0mm Steel Coil Cutting Machine
Specifications
Brand Name :
ZTZG
Model Number :
1600x4
Certification :
ISO9001
Place of Origin :
Hebei, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200 sets/year
Delivery Time :
120 days
Packaging Details :
All mechanical equipment is nude packing and electrical parts are packed in wooden cases
Material :
Low carbon steel
Strip thickness :
0.4- 8.0mm
Strip width :
600～1600mm
Camber on strips :
0.3mm/m
Color :
Chosen by cutomer
Warranty :
1 year
Voltage :
220V/380V
Cutting Speed :
3 - 8 mm
No. of Slitting Lines :
10
Coil Weight (T) :
10 T
Condition :
New
Rated Power :
15kw
Dimension(L*W*H) :
11000*1500*1800
No. of Slitting pieces :
10
Certification: :
ISO9001
Key Selling Points: :
Easy to Operate
Description

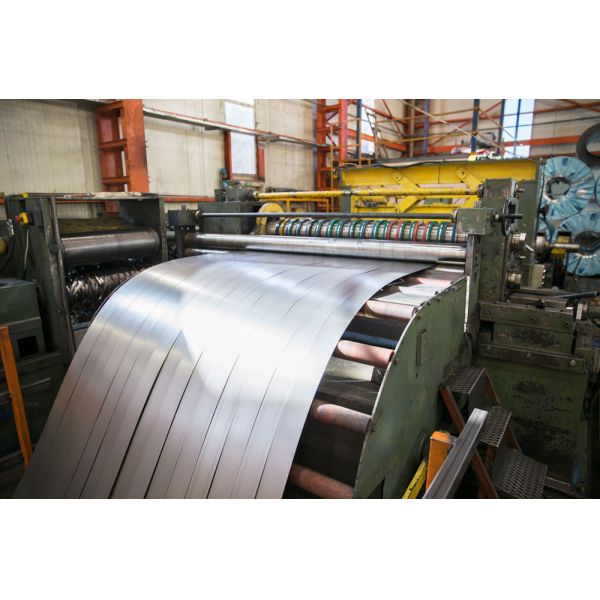

Slitting line description

Specializing in the manufacturing of material cutting, cutting machinery and its affiliated machinery and equipment

Engaged in scissors for many years, spacer sets, cutting, cutting machinery manufacturing experience

The manufacturing speed of the slabbing machine is fast

Main Parameters

Processing Thickness 0.3~4.5mm
Processing Width 600-1600mm
Slitting Accuracy ±0.15 mm
Slitting Speed 120m/min
Coil Inner Diameter 500/610 mm
Coil Outer Diameter ≤2000 mm
Max. Slitting Numbers 6-22pcs
Slitting Coil Width ≥20 mm

thickness 0.4- 8.0mm Steel Coil Cutting Machine

Theory

Coil-loading — Single-mandrel uncoiler — Coil-head-feeding, press & shoveling — Double-roller pinch feeding, three-roller leveling — End-cutting — Hole Accumulator(1) — Strip-aligning — Disc shearing — Scrap reeling — Hole Accumulator(2) — Pre-separator/Tensioner/length-measuring roller — Recoiling/Coils press & separator — Coils-discharging — Hydraulic control — Electric contro

thickness 0.4- 8.0mm Steel Coil Cutting Machine

Inspection

The accuracy and capability of the slitting line:

1～1.5mm ±0.15mm 20pcs
1.6～3.0mm ±0.15mm 15pcs
3.1～4mm ±0.15mm 10pcs
Camber on strips:0.3mm/m

ZTZG Company Introduction
thickness 0.4- 8.0mm Steel Coil Cutting Machine
thickness 0.4- 8.0mm Steel Coil Cutting Machine
thickness 0.4- 8.0mm Steel Coil Cutting Machine
thickness 0.4- 8.0mm Steel Coil Cutting Machine

FAQ

Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Moulding ). We also have our own R&D department. Welcome to visit us.
Q: What kind of payment term do you do?
A: We do T/T.
Q: What info do you need before giving me the price and proposal?
A: Since we design individual machines based on our customer's requirements, we need your desired products' basic dimensions, including all the pipe diameter(or tube length), thickness range, usage, raw material steel grade, coil weight, and degree of automation.
Q: What should I do if I just start a new business?
A: Contact us immediately, we provide a free consultant for pre-sales service. Also, we can help you solve the raw material (steel coil) purchase, worker training, international market price, and more.
Q: How do you do QA?
A: We have a special team to do strict QA, this is one of our strengths:
(1)Every gearbox will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for centering jumpiness.
(3)Every roller will be checked to make sure it's in the range of tolerance critical parts will be inspected for all dimensions.
Q: Why I should choose you? what are the differences between you and other Chinese suppliers?
A: We are concentrating on pipe-making machines for more than 20 years. We have constructed many steady trading partners in Asia, Africa, the middle east, Europe, and South America throughout the years. Our innovative designed production line and every single unit of the production line are economical and practical.
