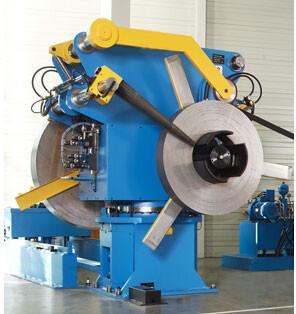

Unpowered And Powered Max 1600mm Steel Uncoiler Machine Easy To Operate
Unpowered And Powered Max 1600mm Steel Uncoiler Machine Easy To Operate
Unpowered And Powered Max 1600mm Steel Uncoiler Machine Easy To Operate
Unpowered And Powered Max 1600mm Steel Uncoiler Machine Easy To Operate
Specifications
Brand Name :
ZTZG
Model Number :
Uncoiler
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200 sets/year
Delivery Time :
120 days
Packaging Details :
All mechanical equipment is nude packing and electrical parts are packed in wooden cases
Condition :
New products
Voltage :
220V/380V
Warranty :
1 year
Coil Weight :
2-30tons
Steel Width :
Max 1600mm
Steel Thickness :
0.25-18mm
Color :
Chosen by cutomer
Material processing :
aluminum,carbon steel,stainless steel
Application :
Steel Sheet
Key Selling Points :
Easy to Operate
Core Components :
PLC, Engine, Gearbox, Motor, Gear, Pump
Machinery Test Report :
Provided
Model :
Single-head
Applicable Industries :
Building Material Shops, Manufacturing Plant
After Warranty Service :
Video technical support, Online support, Field maintenance and repair service
Place of Origin: :
Shijiazhuang, Hebei, China
Machine Type: :
Tube Mill Line
Video outgoing-inspection: :
Can be Provided
Machinery Test Report: :
Can be Provided
Marketing Type: :
New Product 2021
Warranty of core components: :
1 Year
Core Components: :
PLC, Engine, Gearbox, Motor, Gear, Pump
Warranty: :
1 Year
Type: :
Uncoiling Machine, Feeder Machine
Certification: :
CE, ISO
After-sales Service Provided: :
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Key Selling Points: :
Easy to Operate
Description

Uncoiler Machine Introduction:

Uncoiler is an important part of the preparation equipment before the welded pipe production line. It is mainly used to fix the steel strip and expand the steel strip to provide raw materials for the production line. Including single cone, double cone, double cone uncoiler.

Machine Characteristics

Product features
1. Suitable for receiving and delivering all kinds of coil materials
2. Motor power can be added to cooperate with the feeding device.
3. The brake is adjustable and the spindle is strengthened
4. Make the material roll smooth and increase its load force
5. Suitable for thin and thick plate metal materials
6. With the automatic production of pipe mill indispensable parts

Unpowered And Powered Max 1600mm Steel Uncoiler Machine Easy To Operate

Special device (optional)

1. Change of feeding speed

2. Change of inner diameter

3. Add pressing device for thick sheet

4. Oil pressure expansion mode can be selected

5. The motor can be controlled by variable speed

6. Material weight shall be modified according to requirements

Unpowered And Powered Max 1600mm Steel Uncoiler Machine Easy To Operate

Position in the Pipe Production Line

Uncoiling →Shear & Welder → Accumulator → Forming → H.F. Induction Welding → Burr Removing→ Cooling → Sizing → Cutting → Run out table → Checking & Collecting → Accessing Warehouse

Unpowered And Powered Max 1600mm Steel Uncoiler Machine Easy To Operate

Unpowered And Powered Max 1600mm Steel Uncoiler Machine Easy To Operate

Unpowered And Powered Max 1600mm Steel Uncoiler Machine Easy To Operate

ZTZG Company Introduction
Unpowered And Powered Max 1600mm Steel Uncoiler Machine Easy To Operate
Unpowered And Powered Max 1600mm Steel Uncoiler Machine Easy To Operate
Unpowered And Powered Max 1600mm Steel Uncoiler Machine Easy To Operate
Unpowered And Powered Max 1600mm Steel Uncoiler Machine Easy To Operate

FAQ

Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Moulding ). We also have our own R&D department. Welcome to visit us.
Q: What kind of payment term do you do?
A: We do T/T.
Q: What info do you need before giving me the price and proposal?
A: Since we design individual machines based on our customer's requirements, we need your desired products' basic dimensions, including all the pipe diameter(or tube length), thickness range, usage, raw material steel grade, coil weight, and degree of automation.
Q: What should I do if I just start a new business?
A: Contact us immediately, we provide a free consultant for pre-sales service. Also, we can help you solve the raw material (steel coil) purchase, worker training, international market price, and more.
Q: How do you do QA?
A: We have a special team to do strict QA, this is one of our strengths:
(1)Every gearbox will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for centering jumpiness.
(3)Every roller will be checked to make sure it's in the range of tolerance critical parts will be inspected for all dimensions.
Q: Why I should choose you? what are the differences between you and other Chinese suppliers?
A: We are concentrating on pipe-making machines for more than 20 years. We have constructed many steady trading partners in Asia, Africa, the middle east, Europe, and South America throughout the years. Our innovative designed production line and every single unit of the production line are economical and practical.

The model and basic parameters
NO. Name Model Steel Strip Width(mm) Steel Strip Thickness(mm)
1 Single-head manual uncoiler / ≤250 ≤3
2 Double-head manual uncoiler YJ32 ≤100 ≤4
YJ60 ≤200 ≤4
3 Single-lead simple uncoiler YJ400 ≤420 ≤3
YJ550 ≤550 ≤3
YJ750 ≤750 ≤3
4 Hydraulic uncoiler Double-head ≤1050 ≤10
Single-head ≤1050 ≤10
