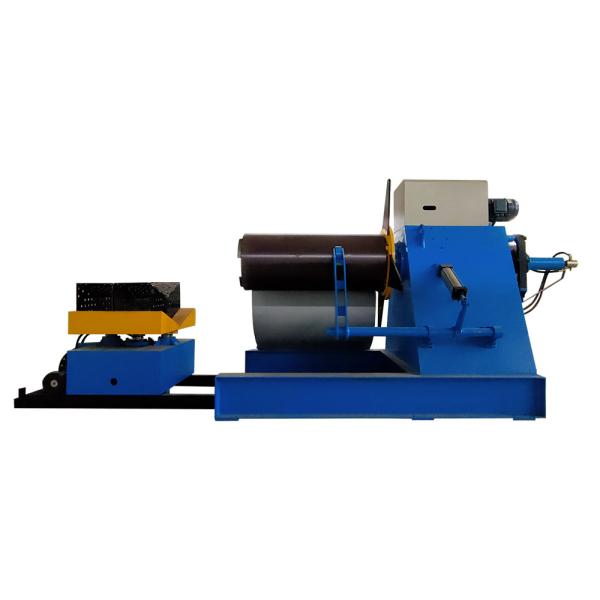

0.25-25mm Steel Uncoiler Strip Decoiler For ERW Pipe Machine
0.25-25mm Steel Uncoiler Strip Decoiler For ERW Pipe Machine
0.25-25mm Steel Uncoiler Strip Decoiler For ERW Pipe Machine
0.25-25mm Steel Uncoiler Strip Decoiler For ERW Pipe Machine
0.25-25mm Steel Uncoiler Strip Decoiler For ERW Pipe Machine
0.25-25mm Steel Uncoiler Strip Decoiler For ERW Pipe Machine
0.25-25mm Steel Uncoiler Strip Decoiler For ERW Pipe Machine
0.25-25mm Steel Uncoiler Strip Decoiler For ERW Pipe Machine
Specifications
Brand Name :
ZTZG
Model Number :
ZTZG-uncoiler
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets/year
Delivery Time :
120 days
Packaging Details :
All mechanical equipment is nude packing and electrical parts are packed in wooden cases
Machine Type :
Pipe Rolling Machine
Core Components :
PLC, Motor
Warranty :
1 Year
After-sales Service :
Online support, Field installation, commissioning and training
Key Selling Points :
High Productivity
After Warranty Serve :
Video technical support, Online support, Field maintenance
Applicable Industre :
Manufacturing Plant
Type :
Fully Automatic
Color :
Blue or as your requirement
Usage :
Automatic Control Operation
coil thickness :
0.25-25 mm
Description
Steel Sheet Decoiler Machine Metal Strips Uncoiler For ERW Pipe Machine
Product Description
The uncoiler can be divided into several types and three level of automation. For smaller steel coil lower than 5 tons,
we normally use double arm uncoiler, and for steel coils between 5-8 tons, we usually use single arm uncoiler. For
steel coil very large, we use double corn uncoilers. You also can choose the automatic level of the uncoilers. The
highest level is full automatic uncoiler, which is fully driven by motor, the only thing you need to do is to press the
button on the remote-control. The second level of automation is pneumatic or hydraulic driven uncoilers. This type
of uncoiler requires people to turn them into places but you don't need to clamp the coils manually. They will clamp
the coils by pneumatic or hydraulic driven expanders. The lowest level of automation is mechanical uncoiler, it requires
manual operation in every sections. The mechanical uncoiler is usually used for small coils which can operate easily by
hand.
Uncoiler Types for Your Choice
Type Arm Expanding Type Horizontal Rotation Type Pressing Head
Mechanical double/single arm uncoiler Manual Manual Equipped when thickness is over 4.0mm
Hydraulic double/single arm uncoiler Hydraulic Manual Equipped when thickness is over 4.0mm
Full automation double/single arm uncoiler Automatic Motor drive Equipped when thickness is over 4.0mm
Single cone uncoiler Automatic Don't need to rotate Equipped when thickness is over 4.0mm

Basic Technical Information:
Inner diameter of the strip steel:Φ 470-530mm Outer diameter of the strip steel:Φ max=1800mm Strip steel width:

100mm-2000mm Strip steel thickness: 1.0mm-22.0mm The maximum weight of the strip steel: 2-15 tons

Automatic Double Arm Uncoiler
Full automatic uncoiler, which is fully driven by motor, the only thing you need to do is to press the button on the
remote-control
Pneumatic or Hydraulic Driven Uncoiler
This type of uncoiler requires people to turn them into places but you don't need to
clamp the coils manually. They will clamp the coils by pneumatic or hydraulic driven expanders.
Mechanical Uncoiler
It requires manual operation in every sections. The mechanical uncoiler is usually used for small coils which
can operate easily by hand.
Single Arm Uncoiler
For steel coils between 5-8 tons, we usually use single arm uncoiler. It usually go with a straightener of the coil ends.
Double Corn Uncoilers
For steel coil very large, we use double corn uncoilers. To support a very heavy steel coil, there requires to be a
supporting corn on both sides of the steel coil. And this kind uncoiler are usually equipped with end straightener and
a peeler to cut the tieing strip off.
0.25-25mm Steel Uncoiler Strip Decoiler For ERW Pipe Machine

Q:Are you manufacturer?
A:Yes,we are manufacturer. We have 4 factories ( machining, assembling, heat treatment,and mould factory)And

we have our own R&D department. Welcome to visit us.
Q:What kind o f payment term you can do?
A: We can accept T/T and L/C.
Q:What info you need before you make the proposal?
A:The pipe diameter , thickness range , usage, raw material steel grade, coil weight and automatic degree.
Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant for pre-sales service .Also we can help you to solve the raw

material (steel coil) purchase,worker training,international market price.
Q:How do you do QA?
A:We have special team to do strict QA,this is one of our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of tolerance critical parts will be inspected for all dimensions.
Q:Why I should choose you,what are the differences between you and other Chinese suppliers?
A:We are concentrate on this industry for more than 20 years,and especially in pipe making machines. Our pipe making
machine line directly export to Russia,Vietnam,lndia,Indonesia,and many other countries in Asia, Africa, middle east and
South America.
