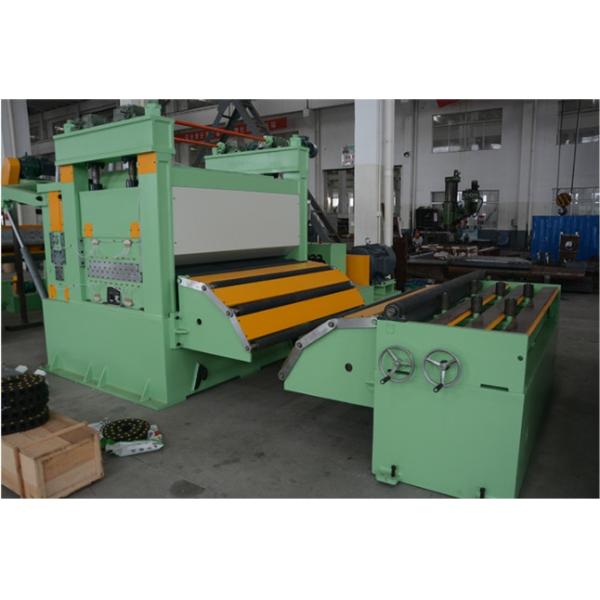

Complete Line Simple Q235 Steel Coil Slitting Machine 10-70m/min
Complete Line Simple Q235 Steel Coil Slitting Machine 10-70m/min
Complete Line Simple Q235 Steel Coil Slitting Machine 10-70m/min
Complete Line Simple Q235 Steel Coil Slitting Machine 10-70m/min
Complete Line Simple Q235 Steel Coil Slitting Machine 10-70m/min
Complete Line Simple Q235 Steel Coil Slitting Machine 10-70m/min
Complete Line Simple Q235 Steel Coil Slitting Machine 10-70m/min
Complete Line Simple Q235 Steel Coil Slitting Machine 10-70m/min
Specifications
Brand Name :
ZTZG
Model Number :
123
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets/year
Delivery Time :
120 days
Packaging Details :
All mechanical equipment is nude packing and electrical parts are packed in wooden cases
Cutting Width :
600 - 2000 mm
Material Thickness(mm) :
0.5 -10 mm
Cutting Speed(m/min) :
40 - 60 m/min
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Gear, Pump
Leveling Precision(±mm/m) :
0.02 ±mm/m
Condition :
New
Key Selling Points :
Long Service Life
After-sales Service Provided :
Field installation, commissioning and training, Online support
Function :
metal processing
Usage :
plate cutting
Description

Manufacturer Sale Complete Line Simple Steel Coil Slitting Machine

Main Parameters
Processing Thickness
0.5~10mm
Processing Width
600-2000mm
Cut to length Accuracy
±1.5 mm
Cutting Speed
10-70m/min
Coil Inner Diameter
500/610 mm
Coil Outer Diameter
≤2000 mm
Cut to Length Range
500~4000mm
Sheet Leveling Flatness
≤±1.5mm/m²
Length tolerance
≤±1.5mm /2m
Diagonal tolerance
≤±1.2mm/2m
Levelling precision
≤2mm/m2
Cut length
500~3000mm
Not limited to above mentioned parameters,customzied machine is available.
Product Description

Hydraulic decoiler(with car) --- Slitting machine---Crimping device---Clamping device---Hydraulic coil winding machine(with car)

Item Main specification
Coil material Q235
Coil thickness 0.38/0.45/0.76/0.91mm
Coil width 1200mm
Coil inner diameter 450-500mm
Max coil weight 7000Kg

Welcome To Visit!!

Workshop
Complete Line Simple Q235 Steel Coil Slitting Machine 10-70m/min
Our Service
Complete Line Simple Q235 Steel Coil Slitting Machine 10-70m/min

High Speed Coil Cut To Length Levelling Line

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.

FAQ

Q:Are you manufacturer?
A: Yes, we are manufacturers of cut to length machine line,we have our own technical team, and about 80,000 sq.m workshop, welcome to visit us!


Q:What payment terms do you accept?
A: We are flexible on payment terms,we can also help you on financing,please contact us for details!


Q:What information will you need to make the proposal?
A: Coil weight,coil width,coil thickness,coil material, max. cutting length, cutting speed and your special requirements.


Q:What should I do to start a new business?
A: Please contact us immediately,we provide free pre-sales consultant service. Also we can help you to solve the worker training.


Q: Do you provide training and maintenance?
A: Yes. In order to your more efficiency for production, when the machine has arrived at the importer’ s port.
Our company will send engineers to installing the machine and responsible for training the worker of customer until they can operating the machine skillful.
During the warranty time, if the device can 't work normally, after receiving your notice, within 24 hours, we will send
engineers to your factory for processing; If it is artificial damage,then need to charge a cost.
Each machine leaving the factory will be along with related English instructions including maintenance manual and operation manual.


Q:Why choose you?What is the difference between you and other Chinese supplier?
A: We have specialized in this area for over 20 years.Our cut to length line are exported to many countries in the world.
You can get higher quality product & better professional service from Hitech with same price.
