Thickness 0.4- 8.0mm Metal Strip Cutting Machine / Slitter Line Machine 220V
Thickness 0.4- 8.0mm Metal Strip Cutting Machine / Slitter Line Machine 220V
Thickness 0.4- 8.0mm Metal Strip Cutting Machine / Slitter Line Machine 220V
Thickness 0.4- 8.0mm Metal Strip Cutting Machine / Slitter Line Machine 220V
Thickness 0.4- 8.0mm Metal Strip Cutting Machine / Slitter Line Machine 220V
Thickness 0.4- 8.0mm Metal Strip Cutting Machine / Slitter Line Machine 220V
Specifications
Brand Name :
ZTZG
Model Number :
ZJ 1250
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
200 sets/year
Delivery Time :
120 days
Packaging Details :
All mechanical equipment is nude packing and electrical parts are packed in wooden cases
Material :
Low carbon steel
Strip thickness :
0.4- 8.0mm
Strip width :
600～1000mm
Camber on strips :
0.3mm/m
Color :
Chosen by cutomer
Warranty :
1 year
Voltage :
220V/380V
Application :
slitting
Plc :
mitsubishi/delixi/siemens
Line speed :
0-100m/min
Feeding width :
as customers requirement
Operate style :
automatic
Description

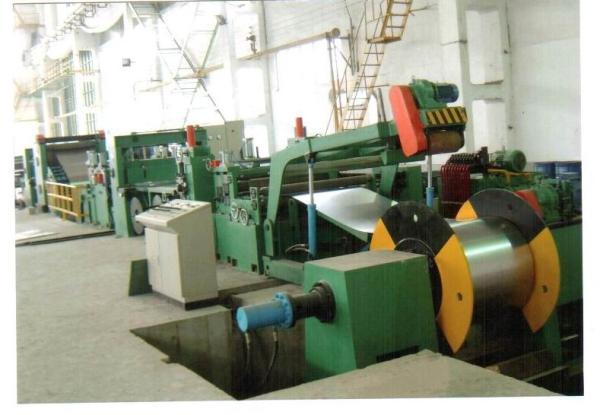

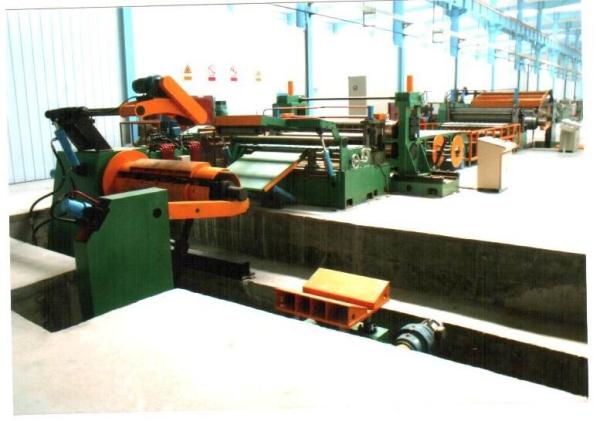

Metal Processing Machinery Steel Coil Slitting Machine

Slitting line description:

slitting line is applied for various kinds of steel plates slitting and recoiling. It is used to uncoil large coil drum plate and slit into umpty strips as required width, then to recoil and pack into a whole bale of plane plate for next procedure of cold-bending, punching, pipe welder, etc.

Working process

From right to left are: Entry coil car→De-coiler →Press and pinch device→Hydraulic cutter→Looper 1→Side guide device→ Slitter→Scrap winder→Looper 2→Tension stand →Re-coiler→Exit coil car

Thickness 0.4- 8.0mm Metal Strip Cutting Machine / Slitter Line Machine 220V

Composed Device

No Name Quantity
1 Entry coil car 1PC
2 Hydraulic de-coiler 1PC
3 Hydraulic press and pinch device 1PC
4 Hydraulic cutter 1PC
5 Looper 1 1PC
6 Side guide device 1PC
7 Slitter 1PC
8 Scrap winder 1PC
9 Looper 2 1PC
10 Tension stand 1PC
11 Re-coiler 1PC
12 Exit coil car 1PC
13 Hydraulic system 1 SET
14 Electrical system 1 SET

Our Company

Thickness 0.4- 8.0mm Metal Strip Cutting Machine / Slitter Line Machine 220V

Thickness 0.4- 8.0mm Metal Strip Cutting Machine / Slitter Line Machine 220V

Thickness 0.4- 8.0mm Metal Strip Cutting Machine / Slitter Line Machine 220V

Product List

Model Roll Width(mm) Thickness(mm) cutting speed(m/min)
Z1000 500-1000 0.18-1.5 80-100
zJ1250 900-1250 0.5-2 50-90
zJ1500 1000-1500 1.8-4 40-80
zJ1600 1000-1600 2-6 30-70
zJ1600 1000-1600 4-10 20-70
zJ1600 1000-1600 4-12.7 20-60
ZJ1800 1000-1800 5-14 15-60
zJ2000 1200-2000 6-16 12-50

FAQ

Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Moulding ). We also have our own R&D department. Welcome to visit us.
Q: What kind of payment term do you do?
A: We do T/T and L/C.
Q: What info do you need before giving me the price and proposal?
A: Since we design individual machines based on our customer's requirements, we need your desired products' basic dimensions, including all the pipe diameter(or tube length), thickness range, usage, raw material steel grade, coil weight, and degree of automation.
Q: What should I do if I just start a new business?
A: Contact us immediately, we provide a free consultant for pre-sales service. Also, we can help you solve the raw material (steel coil) purchase, worker training, international market price, and more.
Q: How do you do QA?
A:We have a special team to do strict QA, this is one of our strengths:
(1)Every gearbox will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for centering jumpiness.
(3)Every roller will be checked to make sure it's in the range of tolerance critical parts will be inspected for all dimensions.
Q: Why I should choose you? what are the differences between you and other Chinese suppliers?
A: We are concentrating on pipe-making machines for more than 20 years. We have constructed many steady trading partners in Asia, Africa, the middle east, Europe, and South America throughout the years. Our innovative designed production line and every single unit of the production line are economical and practical.
