Specifications
Brand Name :
ZTZG
Certification :
ISO9001 BV CAC CE
Place of Origin :
Hebei
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200 sets/year
Delivery Time :
120 days
Packaging Details :
All mechanical equipment is nude packing and electrical parts are packed in wooden cases
Voltage :
220V/380V
Condition :
New
Warranty :
1 year
Storage Capacity :
100-1000m
Power :
150kw-1000kw
Type :
Pipe Production Line
Dimension(L*W*H) :
customized
Weight :
6.5T
After-sales Service Provided :
Online support, Field maintenance and repair service, Video tec
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works, Energy & Mining
Raw Material :
Carbon Steel, Iron
Pipe Material :
Carbon Steel
Application :
Carbon Steel Strips
Production Capacity: :
30-50m/min
Description

8-11M Strip Accumulator Steel Strip Horizontal Accumulator Machine for Pipe Production Line

Introduction

The accumulator is indispensable and important equipment to ensure the automatic production of high-frequency straight seam welded pipe, which can ensure the continuous operation of the main rolling mill and material storage.

Workflow:

material--load--uncoil -- shear -- butt welding -- level orientation--feeding--storage--discharging (electric control system, hydraulic system)

8-11M Strip Accumulator Machine 30-50m/Min high speed

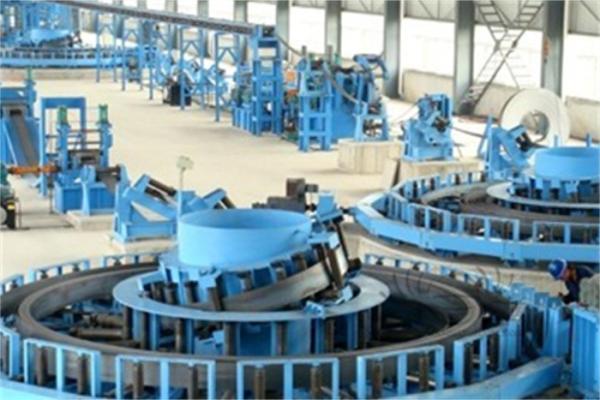

ZTZG production of the accumulator has truck accumulator, cage accumulator, spiral accumulator, and other forms. With the continuous improvement of production speed and quality of modern pipe welding units, the requirements for the quality of accumulator plate and strip steel storage are becoming higher and higher. The spiral accumulator has many incomparable advantages, such as large accumulator reserve, small damage to the plate surface, and fast filling speed.

8-11M Strip Accumulator Machine 30-50m/Min high speed

Boundary Dimension 1150(mm)
(1) Structure: Double station. Power coiling. Stepless variable speed
(2) Coiling speed: 50-150m /min
(3) Motor power: 4KW
(4) Plate diameter: Φ1600mm
(5) Coiling center height: 1150mm


ZTZG Company Introduction
8-11M Strip Accumulator Machine 30-50m/Min high speed
8-11M Strip Accumulator Machine 30-50m/Min high speed
8-11M Strip Accumulator Machine 30-50m/Min high speed
8-11M Strip Accumulator Machine 30-50m/Min high speed

FAQ

Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Moulding ). We also have our own R&D department. Welcome to visit us.
Q: What kind of payment term do you do?
A: We do T/T.
Q: What info do you need before giving me the price and proposal?
A: Since we design individual machines based on our customer's requirements, we need your desired products' basic dimensions, including all the pipe diameter(or tube length), thickness range, usage, raw material steel grade, coil weight, and degree of automation.
Q: What should I do if I just start a new business?
A: Contact us immediately, we provide a free consultant for pre-sales service. Also, we can help you solve the raw material (steel coil) purchase, worker training, international market price, and more.
Q: How do you do QA?
A: We have a special team to do strict QA, this is one of our strengths:
(1)Every gearbox will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for centering jumpiness.
(3)Every roller will be checked to make sure it's in the range of tolerance critical parts will be inspected for all dimensions.
Q: Why I should choose you? what are the differences between you and other Chinese suppliers?
A: We are concentrating on pipe-making machines for more than 20 years. We have constructed many steady trading partners in Asia, Africa, the middle east, Europe, and South America throughout the years. Our innovative designed production line and every single unit of the production line are economical and practical.
