Metal 30m/Min Accumulator Machine Continuous Strip Feeding To Tube Mill
Metal 30m/Min Accumulator Machine Continuous Strip Feeding To Tube Mill
Metal 30m/Min Accumulator Machine Continuous Strip Feeding To Tube Mill
Metal 30m/Min Accumulator Machine Continuous Strip Feeding To Tube Mill
Metal 30m/Min Accumulator Machine Continuous Strip Feeding To Tube Mill
Metal 30m/Min Accumulator Machine Continuous Strip Feeding To Tube Mill
Metal 30m/Min Accumulator Machine Continuous Strip Feeding To Tube Mill
Metal 30m/Min Accumulator Machine Continuous Strip Feeding To Tube Mill
Specifications
Brand Name :
ZTZG
Model Number :
ZTZG -looper
Certification :
ISO9001 BV CAC CE
Place of Origin :
Hebei, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets/year
Delivery Time :
120 days
Packaging Details :
All mechanical equipment is nude packing and electrical parts are packed in wooden cases
Name :
Metal Strip Accumulator Providing A Continuous Strip Feeding To The Tube Mill
Type :
Pipe Production Line
Pipe Material :
Carbon Steel
Application :
Steel strip store
Production Capacity :
30-50m/min
Voltage :
380V
Power :
35KW
Dimension(L*W*H) :
Customized
Weight :
6.5T
Warranty :
1 Year
Description

Metal Strip Accumulator Providing A Continuous Strip Feeding To The Tube Mill

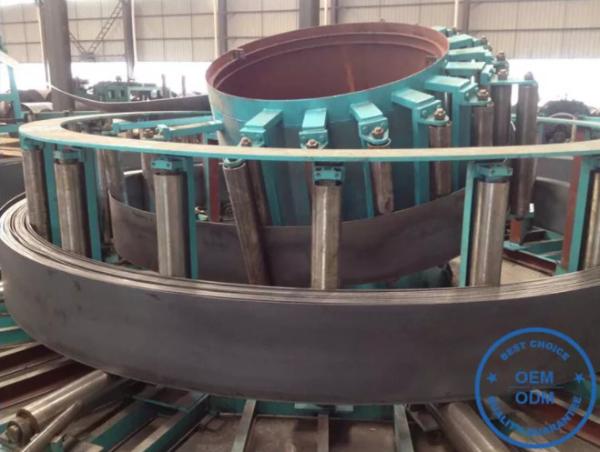

(1) Spiral accumulator unit is mainly included in press& carry material device, accumulator assemble, carry off material unit, electric control unit.

(2)It is main include frame, electric motor, brake unit, circling direction transfer power axle of the reduce velocity, press & carry roll, pressure air system of guide roll, inspected velocity unit; it can supply the strip steel to accumulator and the mean times it will transfer the carry velocity information to electric control system, when we demand stop carry the material to this unit, it will stop roll to the electric motor and press& carry material roll by the break, and also could adjust the velocity to carry electric motor and the unit carry material velocity.

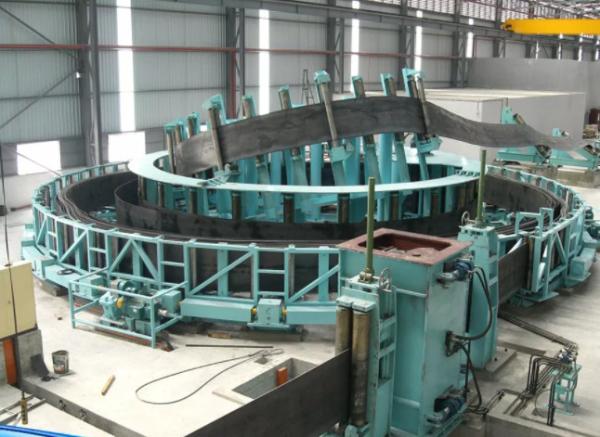

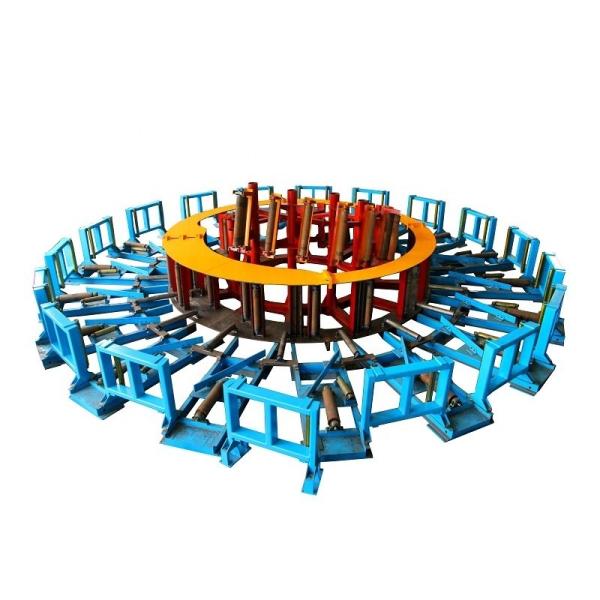

(3)Accumulator frame assemble: include the electric motor, frame , inner circle roll, out circle roll and pressure roll. It can be used to storage the strip steel material from press& carry unit and it could be draw from the center send-off material roll.

Technical Parameters:

Name Metal Strip Accumulator Providing A Continuous Strip Feeding To The Tube Mill
Type Pipe Production Line
Pipe Material Carbon Steel
Application Steel strip store
Production Capacity 30-50m/min
Place of Origin Hebei, China
Voltage 380V
Power 35KW
Dimension(L*W*H) Customized
Weight 6.5T
Certification ISO9001 BV CAC CE
Warranty 1 Year
.
Model
Steel Strip Width
Steel Strip Thickness
Feeding Speed(m/min)
Length(m)
Motor(Kw)
1
φ2.5M
60~180mm
0.5~2.0mm
160
15
7.5
2
φ3.5M
60~230mm
0.8~2.5mm
160
15
7.5
3
φ4.0M
60~350mm
0.8~3.0mm
160
18
11
4
φ4.2M
80~400mm
0.8~3.5mm
160
18
15
5
φ4.5M
100~400mm
0.8~4.0mm
160
18
18.5
6
φ4.8M
100~450mm
1.0~4.5mm
160
18
18.5
7
φ5.0M
120~500mm
1.0~5.0mm
160
23
22
8
φ5.5M
150~600mm
1.0~5.5mm
160
23
30
9
φ6.0M
180~700mm
1.2~6.0mm
160
23
30
10
φ8.0M
200~800mm
1.5~8.0mm
120
43
55
11
φ10M
300~800mm
2.0~10.0mm
120
43
75
12
φ12M
500~900mm
5.0~12.0mm
100
48
110
13
φ14M
500~900mm
5.0~14.0mm
100
48
132
14
φ16M
500~1000mm
6.0~16.0mm
100
55
160
Remarks
We can design according to the customer's demand, please feel free to contact us if you have any questions!

Product Application

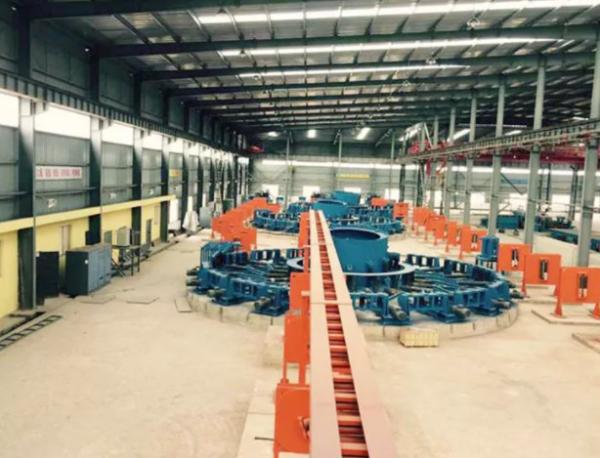

The machine is used for the welded pipe production line,between the shear welder and host(molding and sizing machine),

Its function is in the time since the first roll of strip steel are used up,the next roll strip prepared from uncoiling,shearing

and butt welding store enough steel strip to ensure that the host(forming and sizing machine) continuous production.

Q:Are you manufacturer?
A:Yes,we are manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Moulding ). We also have

our own R&D department. Welcome to visit us.
Q:What kind of payment term do you do?
A: We do T/T and L/C.
Q:What info do you need before giving me the price and proposal?
A: Since we design individual machine based on our customer's requirement, we need your desired products' basic

dimension, including all the pipe diameter(or tube length), thickness range , usage, raw material steel grade, coil weight,

and degree of automation.
Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant for pre-sales service .Also we can help you solve the raw material

(steel coil) purchase, worker training, international market price, and more.
Q:How do you do QA?
A:We have special team to do strict QA,this is one of our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of tolerance critical parts will be inspected for all dimensions.
Q:Why I should choose you? what are the differences between you and other Chinese suppliers?
A:We are concentrate on pipe making machines for more than 20 years. We have constructed many steady trading partners

in Asia,Africa, middle east, Europe, and South America throughout the years. Our innovative designed production line and

each single unit of the production line are not only economical but also practical.
