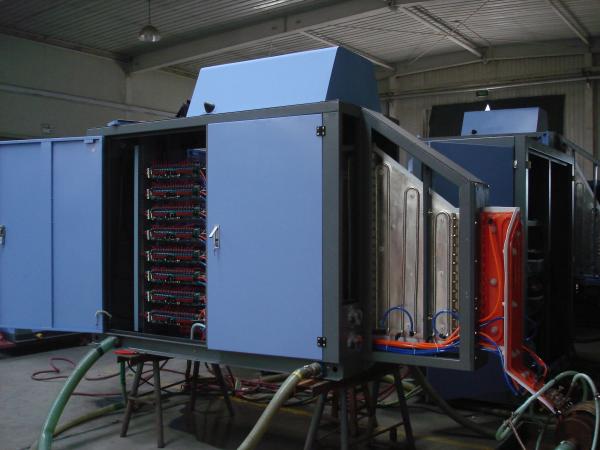

400kw Automatic High Speed Welding 2 DC Driver High Frequency Welder

Function:

1.1 The solid state H.F. welder adopts Germany IXYS company IXFN38N100Q2 38A/1000V high-power MOSFET and DSEI 2×61-12B 60A/1200V rapid recovery diode to compose series type invertible circuit.

1.2 The solid state H.F. welder adopts modularization design with more compact structure which makes maintenance and high-power realization much easier.

1.3 It has particular technology of bridge-divided over-current protection that guarantees equipment safety.

1.4 It combines international advanced control method of same products, adopts advanced technologies like fixed angle phase-locking control, upper frequency limit/lower frequency limit lock-lost protection and etc. With these technologies, the equipments run more stably, more efficiently, more accurate and effective protections to the inductor short-circuit and open-circuit malfunction during pipe welding production.

1.5 Line-in end of solid state H.F. welder does not need step-up /step-down rectifier transformer, compared with vacuum tube welder and parallel type welder; it has significant energy-saving effects (Under same welding condition, energy-saving ≥30% compared with vacuum tube welder).

Technical Features

1.Display instrument digitization
The rectifying cabinet panel is equipped with a multi-function digital meter, which has three phase input line voltage, three-phase line current, power factor, reactive power, active power, power, DC voltage, DC current and other parameters, and can be controlled, displayed and recorded through communication far to the upper computer.
2.The high frequency voltmeter and the ammeter touch screen display of the operation console
The welding machine and the operating table are connected by communication, and the resonant frequency of high frequency, active, reactive, power, DC voltage, DC current, armature voltage and armature current are displayed in the touch screen of the operating table.

Process flow

Uncoiling →Shear & Welder → Accumulator → Forming → H.F. Induction Welding → Burr Removing→ Cooling → Sizing → Cutting → Run out table → Checking & Collecting → Accessing Warehouse

Option configuration

Speed and power closed-loop control, Ethernet networking technology, and cloud control technology.





Our company

FAQ

Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Moulding ). We also have our own R&D department. Welcome to visit us.
Q: What kind of payment term do you do?
A: We do T/T.
Q: What info do you need before giving me the price and proposal?
A: Since we design individual machines based on our customer's requirement, we need your desired products' basic dimensions, including all the pipe diameter(or tube length), thickness range, usage, raw material steel grade, coil weight, and degree of automation.
Q: What should I do if I just start a new business?
A: Contact us immediately, we provide a free consultant for pre-sales service. Also, we can help you solve the raw material (steel coil) purchase, worker training, international market price, and more.
Q: How do you do QA?
A:We have a special team to do strict QA, this is one of our strengths:
(1)Every gearbox will be tested for 8 hours with oil inside to guarantee there is no leak.
