Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Kampa
Model Number :
LC1-D18
Electricity Type :
AC
Number of Pole :
3
Phase :
3
Main Circuit Rating Voltage :
380V
Main Circuit Rating Current :
18A
Standard :
CE/IEC60947-4-1
Frequency :
50Hz/60Hz
Rated voltage :
110V 220V 380V 660V
Application :
AC Motor
Packaging Details :
Normal package
Delivery Time :
3days
MOQ :
10 Pieces
Price :
$5.00/Pieces 10-99 Pieces
Description

1.Product Data Description of AC Contactor:

Specification
Model Rated working current (A) Rated heat current (A) AC3 capacity of three-phase squirrel-cage motor AC3(KW)
220/230V 380/400V 415V 440V 500V 600/690V
AC3 AC4 KW KW KW KW KW KW
LC1-D09 9 3.5 20 2.2 4 4 4 5.5 5.5
LC1-D12 12 5 20 3 5.5 5.5 5.5 7.5 7.5
LC1-D18 18 7.7 32 4 7.5 9 9 10 10
LC1-D25 25 8.5 40 5.5 11 11 11 15 15
LC1-D32 32 12 50 7.5 15 15 15 18.5 18.5
LC1-D40 40 18.5 60 11 18.5 22 22 22 30
LC1-D50 50 24 80 15 22 25 30 30 33
LC1-D65 65 28 80 18.5 30 37 37 37 37
LC1-D80 80 37 125 22 37 45 45 55 45
LC1-D95 95 44 125 25 45 45 45 55 45
Number of the contact 3P+NO
3P+NC
3P+(NO+NC)
Matched auxiliry contactor LA1-DN02(2NC),LA1-DN11(1NO+1NC),LA1-DN20(2NO),LA1-DN22(2NO+2NC)
LA1-DN40(4NO),LA1-DN04(4NC),LA1-DN13(1NO+3NC),LA1-DN31(3NO+1NC)
Matched time delay auxiliary contact Time delay after power on:LA2-DT0(0.1-3s),LA2-DT2(0.1-30s),LA2-DT4(10-180s)
Time delay after power off:LA3-DR0(0.1-3s),LA3-DR2(0.1-30s),LA3-DR4(10-180s)
External dimensions & Installation dimensions
Type Amax Bmax Cmax a b φ
LC1-D09/12/18 45 74 80 35±0.50 50±0.50/60±0.60 4.5
LC1-D25 56 84 93 40±0.50 50±0.50/60±0.60 4.5
LC1-D32 98
LC1-D40/50/65 75 127 114 40±0.50 100±0.70/110±0.70 6.5
LC1-D80/95 85 127 125 40±0.50 100±0.70/110±0.70 6.5

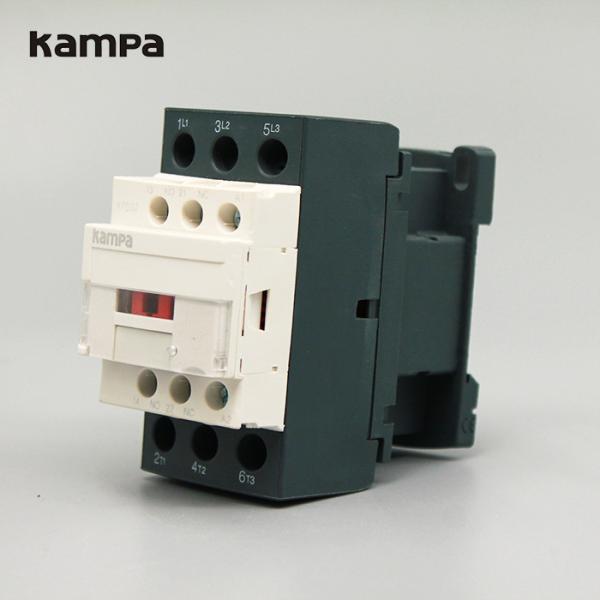

2.Product pictures of AC Contactor:

Kampa Wholesales High quality sensitivoty Precisely LC1-D18 AC Magnetic Contactor

Kampa Wholesales High quality sensitivoty Precisely LC1-D18 AC Magnetic Contactor
