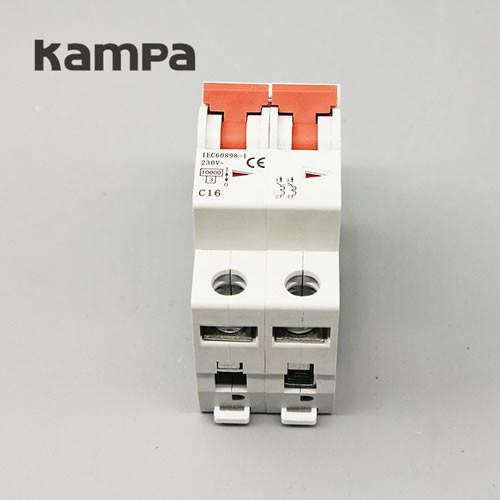

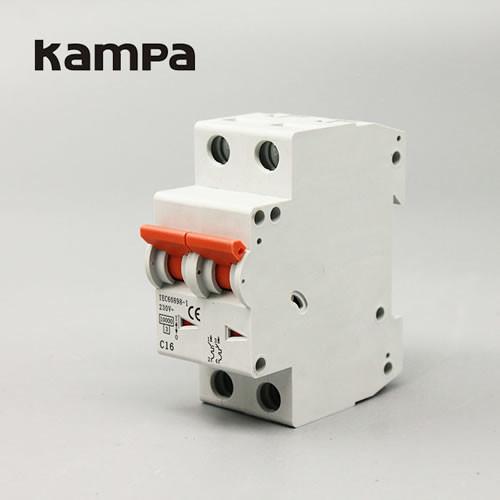

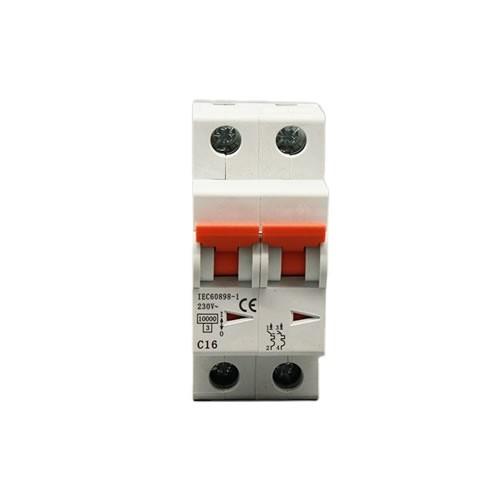

10-63A/Miniature Circuit Breakers L7 2P(new type) MCB
10-63A/Miniature Circuit Breakers L7 2P(new type) MCB
10-63A/Miniature Circuit Breakers L7 2P(new type) MCB
10-63A/Miniature Circuit Breakers L7 2P(new type) MCB
10-63A/Miniature Circuit Breakers L7 2P(new type) MCB
10-63A/Miniature Circuit Breakers L7 2P(new type) MCB
10-63A/Miniature Circuit Breakers L7 2P(new type) MCB
10-63A/Miniature Circuit Breakers L7 2P(new type) MCB
Specifications
Place of Origin :
China, China
Brand Name :
Kampa, Kampa
Model Number :
L7 2p
Model Number: :
L7 2P
Number of poles: :
1P,2P,3P,4P
Electric life: :
6000
Type :
Mini
Poles Number :
2
Packaging Details :
standard export cartons OR as customers' needs
MOQ :
10 Pieces
Price :
$2.50/Pieces 10-99 Pieces
Description

Kampa-Miniature Circuit Breakers L7 2P(new type) MCB

Number of poles

1P,2P,3P,4P

Rated current(In)

A

1,2,3,4,5,6,8,10,12,16,20,25,32,40,50,63

Rated operating voltage (Ue)

V

230/400V~

Rated frequency

Hz

50/60Hz

Insulation voltage(Ui)

V

500

Rated withstand impulse voltage (Uimp)

kV

4.5/6/10

Main circuit dielectric strength (1 min
power-frequency withstand voltage test)

kV

2

Protection degree

IP20

Instantaneous tripping type

B C D (According to GB10963.1 IEC/EN60898-1)

Instantaneous tripping type

K (According to GB14048.2 IEC/EN60947-2)

Electric life

times

6000

Mechanical life

times

10000

Rated short-circuit breaking capacity (Icn)

kV

6 or 10 (According to GB10963.1 IEC/EN60898-1)

Rated ultimate short-circuit breaking capacity (lcu)

kV

10

Position indicator of main contact

√

Standard operation condition Protection degree

2

Standard operation condition Ambient temperature

-5℃~+40℃ and its average over aperiod of 24h does not exceed +35℃

Standard operation condition Storage temperature

-25℃to+55℃,for short periods not exceeding 24h,up to +70℃

Standard operation condition Altitude

m

≤2000

Terminal connection types

type cable,type U bus,type bus

Wiring terminal connection conductor

mm2

1~25

Wiring terminal copper size

mm2

25

Tightening torque

N*m

1.5~2.5

Installation mode

using TH35-7.5 profile steel installation rail, the tilt of
installation face and vertical face is not greater than 5°

Line coming mode

upper and lower incoming is possible


10-63A/Miniature Circuit Breakers L7 2P(new type) MCB10-63A/Miniature Circuit Breakers L7 2P(new type) MCB10-63A/Miniature Circuit Breakers L7 2P(new type) MCB

Packaging&shipping

10-63A/Miniature Circuit Breakers L7 2P(new type) MCB

Company information

10-63A/Miniature Circuit Breakers L7 2P(new type) MCB10-63A/Miniature Circuit Breakers L7 2P(new type) MCB

Yueqing Kampa Electric Co.,Ltd. is Established in 1990.Has variety of goods ,such as

Relay,Circuit breaker,Switches,Thermocouple,Thermostat,Temperature controller,

Switch power supply,AVS,Heat sink,Heater,Distribution box,Junction box and so on.

We are manufacturer and have ten years experience in Electrical industry.

10-63A/Miniature Circuit Breakers L7 2P(new type) MCB10-63A/Miniature Circuit Breakers L7 2P(new type) MCB

Our service10-63A/Miniature Circuit Breakers L7 2P(new type) MCB

A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.
