120DA SSR Control 3-32V DC output 24~480VAC High voltage single phase AC solid state relay
120DA SSR Control 3-32V DC output 24~480VAC High voltage single phase AC solid state relay
120DA SSR Control 3-32V DC output 24~480VAC High voltage single phase AC solid state relay
120DA SSR Control 3-32V DC output 24~480VAC High voltage single phase AC solid state relay
120DA SSR Control 3-32V DC output 24~480VAC High voltage single phase AC solid state relay
120DA SSR Control 3-32V DC output 24~480VAC High voltage single phase AC solid state relay
120DA SSR Control 3-32V DC output 24~480VAC High voltage single phase AC solid state relay
120DA SSR Control 3-32V DC output 24~480VAC High voltage single phase AC solid state relay
120DA SSR Control 3-32V DC output 24~480VAC High voltage single phase AC solid state relay
120DA SSR Control 3-32V DC output 24~480VAC High voltage single phase AC solid state relay
120DA SSR Control 3-32V DC output 24~480VAC High voltage single phase AC solid state relay
120DA SSR Control 3-32V DC output 24~480VAC High voltage single phase AC solid state relay
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Kampa
Model Number :
SSR-120DA
Theory :
Solid State Relay
Usage :
General Purpose
Size :
Miniature
Protect Feature :
Sealed
Contact Load :
High Power
Type :
Solid State Relay
Controlling voltage :
032:3-32VDC
Controlling current :
6-35mA
Make-on voltage :
3VDC
Break-off voltage :
1VDC
Reverse voltage :
32VDC
Output voltage :
AC24-440V
Load current :
10A,15A,20A,25A,30A,60A,80A,100A,120A
MOQ :
10pcs Solid State Relay
OEM :
Acceptable
Packaging Details :
Solid State Relay
Standard Export Carton
Port :
NingBo
Supply Ability :
30000 Piece/Pieces per Month
MOQ :
50 Pieces
Price :
$0.50 - $2.50/Pieces
Description

120DA SSR Control 3-32V DC output 24~480VAC High voltage single phase AC solid state relay

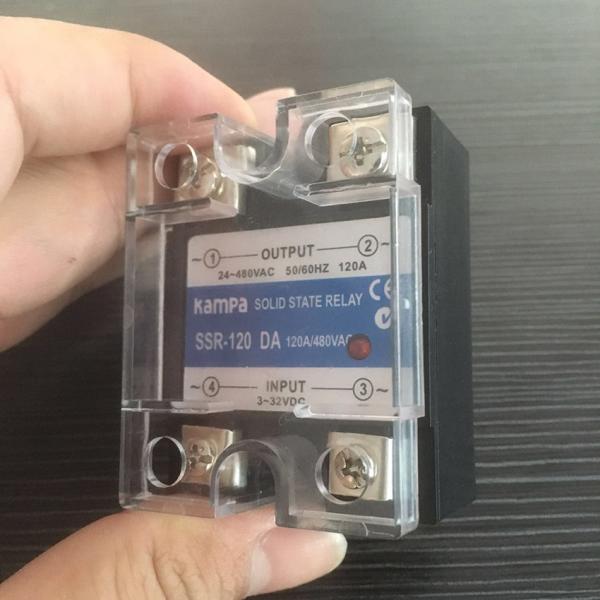

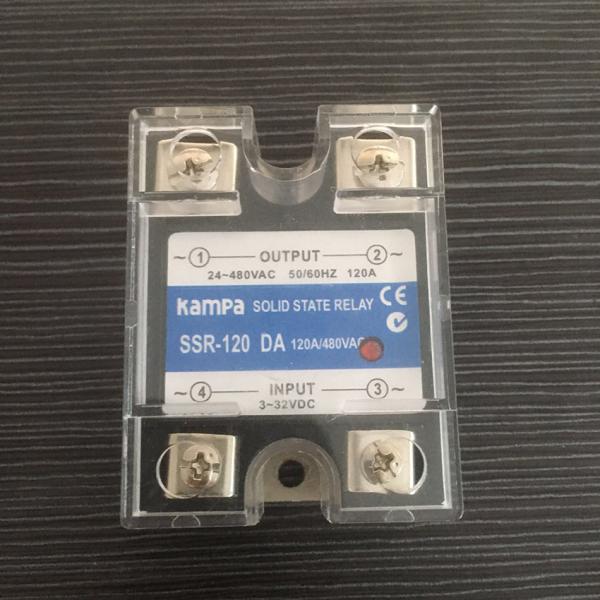

1.PITURE

120DA SSR Control 3-32V DC output 24~480VAC High voltage single phase AC solid state relay

120DA SSR Control 3-32V DC output 24~480VAC High voltage single phase AC solid state relay

120DA SSR Control 3-32V DC output 24~480VAC High voltage single phase AC solid state relay

120DA SSR Control 3-32V DC output 24~480VAC High voltage single phase AC solid state relay

120DA SSR Control 3-32V DC output 24~480VAC High voltage single phase AC solid state relay

Type

HHG1-1/250F~22.38 10-120A(SSR-DA)
Controlling voltage 032:3-32VDC
Controlling current 6-35mA
Make-on voltage 3VDC
Break-off voltage 1VDC
Load voltage 22:30-240vac,38-40-440vac
Load current 10A,15A,20A,25A,30A,40A,60A,80A,100a,120a
Instant voltage 20:600VDC,38:900VAC
Voltage Dropin On <16VDC
On-Off Time
Leakage current in off: ≤10mA
Dielectric Strength ≥2500VAC
Insulation Resistance 500MΩ 500VDC test
Ambient temperature -30~+80℃
Dimensions 57.2L×43.2W×29H
Indicate Methods LED
Mounting Type bolt fixed
Weight

130g or so

120DA SSR Control 3-32V DC output 24~480VAC High voltage single phase AC solid state relay

120DA SSR Control 3-32V DC output 24~480VAC High voltage single phase AC solid state relay

120DA SSR Control 3-32V DC output 24~480VAC High voltage single phase AC solid state relay
