T93 12Vdc 30/40a spdt high power pcb relay
T93 12Vdc 30/40a spdt high power pcb relay
T93 12Vdc 30/40a spdt high power pcb relay
T93 12Vdc 30/40a spdt high power pcb relay
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Kampa
Model Number :
T93
Theory :
Electromagnetic Relay, Electromagnetic Relay
Usage :
PCB, Protective
Size :
Miniature
Protect Feature :
Sealed
Contact Load :
High Power
Product name :
Hot selling small size pcb relay 5A 240VAC 28VDC
Type :
pcb relay
Contact type :
1H,1Z
Contact overload :
AC:7A 125V/5A 220V DC:24VDC
Rated coil power :
0.6W
Coil specification :
3-24V DC
Outline dimensions :
15.7*12.3*14mm
MOQ :
50PCS
Packaging Details :
Standard Export Carton-500pcs
Port :
Ningbo/Shanghai
Supply Ability :
500000 Piece/Pieces per Month
MOQ :
50 Pieces
Price :
$0.30 - $1.00/Pieces
Description

T93 12Vdc 30/40a spdt high power pcb relay

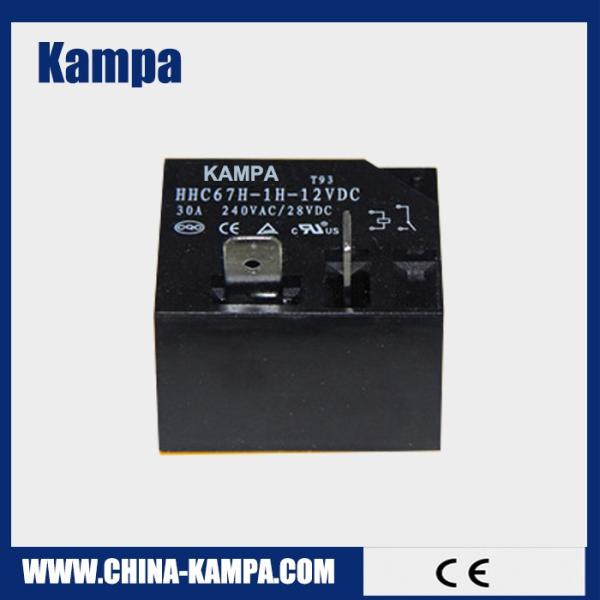

1.Pictures of pcb relay

T93 12Vdc 30/40a spdt high power pcb relay\

T93 12Vdc 30/40a spdt high power pcb relay

2.Technical info. of PCB Relay

Part NO. HHC67F(T93)
Dimension 32.5*27.5*27.5mm
Contact
Feature
 Form 1H,1D,1Z
Rated load 30A,40A
Max switching voltage 240VAC/28VDC
Contact resistance ≤100mΩ
Material Silver Alloy
Electrical life ≥1*105
Mechanical life ≥1*107
Operate voltage DC:≤75%*Rated voltage
AC:≤80%*Rated voltage
Release voltage DC:≥10%*Rated voltage
AC:≥30%*Rated voltage
Maximum voltage 110%*Rated voltage
Normal coil voltage DC 3-11OV
AC 6-240V
Normal coil power DC 0.93W
AC 1.2VA
Pick-up time(Rated voltage) ≤15ms
Release time(Rated voltage) ≤10ms
Dielectric
strength
 Between Same-pole contacts 1500VAC/1min(leakage current 1mA)
Between Opposite-pole contacts
Between contacts and coil 1500VAC/1min(leakage current 1mA)
Insulation resistance ≥100mΩ(500VDC)
Ambient humidity 35%-80%RH
Atmospheric pressure 86-106KPa
Shock resistance 10G (sinusoidal half-wave pulse:11ms)
Vibration resistance 10-55Hz (double amplitude: 1.0mm)
Installation PCB

3.Dimension of T93 PCB Relay

T93 12Vdc 30/40a spdt high power pcb relay

4. Performance graph

T93 12Vdc 30/40a spdt high power pcb relay


T93 12Vdc 30/40a spdt high power pcb relay

T93 12Vdc 30/40a spdt high power pcb relay

T93 12Vdc 30/40a spdt high power pcb relay

T93 12Vdc 30/40a spdt high power pcb relay

T93 12Vdc 30/40a spdt high power pcb relay

T93 12Vdc 30/40a spdt high power pcb relay

T93 12Vdc 30/40a spdt high power pcb relay

T93 12Vdc 30/40a spdt high power pcb relay

A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.

B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.
