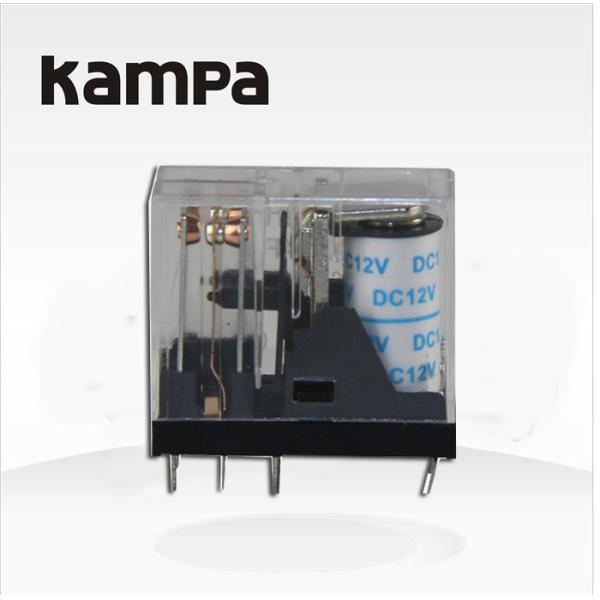

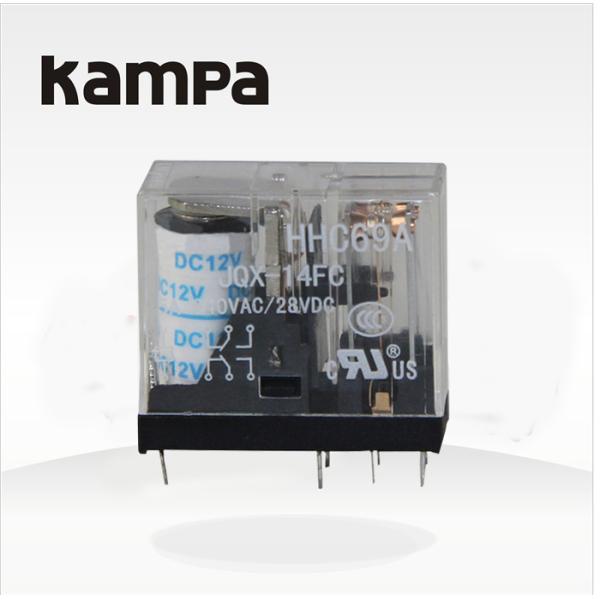

jqx-14fc-1z 10A 12V 220V small latching electromagnetic relay
jqx-14fc-1z 10A 12V 220V small latching electromagnetic relay
jqx-14fc-1z 10A 12V 220V small latching electromagnetic relay
jqx-14fc-1z 10A 12V 220V small latching electromagnetic relay
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Kampa
Model Number :
jqx-14fc-1z
Theory :
Thermal Relay
Usage :
General Purpose, Protection
Size :
Subminiature
Protect Feature :
Sealed
Contact Load :
Low Power
Name :
JQX-14FC-1Z
Contact type :
1Z,1H,1D
Contact overload :
10A 16VAC 240VAC/28VDC
Rated coil power :
DC0.55W 240VAC/28VDC
Packing :
DC0.55W 240VAC/28VDC
Coil specification :
5~110VDC 6~220VAC
Sample time :
3days- general purpose relay
Open port :
Ningbo
Supply Ability :
50000 Piece/Pieces per Month
Packaging Details :
Standard Export Carton/200pcs/ctn
Port :
Ningbo
MOQ :
1000 Pieces
Price :
$0.30 - $0.90/Pieces
Description

jqx-14fc-1z 10A 12V 220V small latching electromagnetic relay

Part NO. HHC69A(JQX-14FC)
Dimension 29*13*25.3
Contact Feature Form 1A,1B,1C 2A,2B,2C
Rated load 10A/240VAC 28VDC 16A/240VAC 28VDC 5A/240VAC 28VDC
Contact resistance ≤100mΩ
Material Silver Alloy
Electrical life ≥1*105
Mechanical life ≥1*107
Operate voltage (23℃) DC:≤75%*Rated voltage
AC:≤80%*Rated voltage
Release voltage (23℃) DC:≥10%*Rated voltage
AC:≥30%*Rated voltage
Maximum voltage (23℃) 110%*Rated voltage
Normal coil voltage DC 3-11OV
AC 6-220V
Normal coil power DC 0.53W
AC 1.0VA
Pick-up time ≤20ms
Release time ≤10ms
Dielectric strength Between Same-pole contacts 1000VAC/1min(leakage current 1mA)
Between Opposite-pole contacts
Between contacts and coil 5000VAC/1min(leakage current 1mA)
Insulation resistance ≥100mΩ(500VDC)
Ambient temperature -55℃ ~70℃
Ambient humidity 35%-80%RH
Atmospheric pressure 86-106KPa
Shock resistance 10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance 10-55Hz (double amplitude: 1.5mm)
Installation PCB,Socket

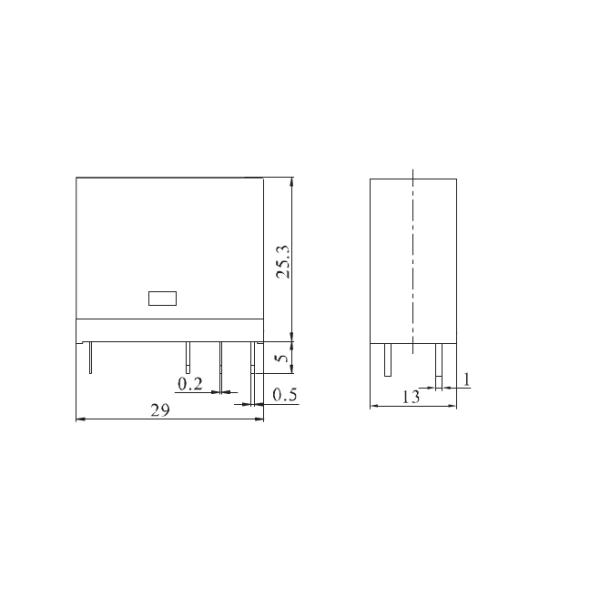

Dimensions

jqx-14fc-1z 10A 12V 220V small latching electromagnetic relay

jqx-14fc-1z 10A 12V 220V small latching electromagnetic relay

jqx-14fc-1z 10A 12V 220V small latching electromagnetic relayjqx-14fc-1z 10A 12V 220V small latching electromagnetic relay

More Products Choose

jqx-14fc-1z 10A 12V 220V small latching electromagnetic relay

Company Information

jqx-14fc-1z 10A 12V 220V small latching electromagnetic relay

Yueqing Kampa Electric Co.,Ltd. is Established in 1990.Has variety of goods ,such

as Relay,Circuit breaker,Switches,Thermocouple,Thermostat,Temperature controller,

Switch power supply,AVS,Heat sink,Heater,Distribution box,Junction box and so on.

We are manufacturer and have ten years experience in Electrical industry.

jqx-14fc-1z 10A 12V 220V small latching electromagnetic relay

jqx-14fc-1z 10A 12V 220V small latching electromagnetic relay

A.Punctual delivery time:

We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.

B.After sales service:

We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.
