NY24W-K 24VDC 5A 4 pins 30VDC/250VAC miniature power relay
NY24W-K 24VDC 5A 4 pins 30VDC/250VAC miniature power relay
NY24W-K 24VDC 5A 4 pins 30VDC/250VAC miniature power relay
NY24W-K 24VDC 5A 4 pins 30VDC/250VAC miniature power relay
NY24W-K 24VDC 5A 4 pins 30VDC/250VAC miniature power relay
NY24W-K 24VDC 5A 4 pins 30VDC/250VAC miniature power relay
NY24W-K 24VDC 5A 4 pins 30VDC/250VAC miniature power relay
NY24W-K 24VDC 5A 4 pins 30VDC/250VAC miniature power relay
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Kampa
Model Number :
NY24W-K
Theory :
power relay
Usage :
PROTECTIVE
Size :
Miniature
Protect Feature :
Sealed
Contact Load :
Low Power

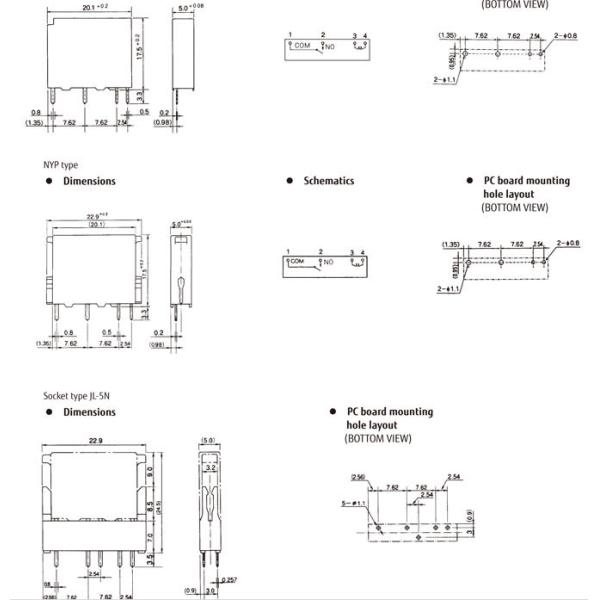

dimension :
20.1mm*5mm*17.5mm
Contact Form :
1A(SPST)
Control Load :
3A 250VAC or 3A 30VAC
Rated current :
5A
Rated voltage :
DC24V
Temperature :
-40℃~+90℃
Coil power :
120mW
COIL VOLTAGE :
DC16.1DC
Packaging Details :
standard package
Port :
Ningbo
Supply Ability :
100000 Piece/Pieces per Month
MOQ :
10 Pieces
Price :
$1.00 - $2.00/Pieces
Description

NY24W-K 24VDC 5A 4 pins 30VDC/250VAC miniature power relay

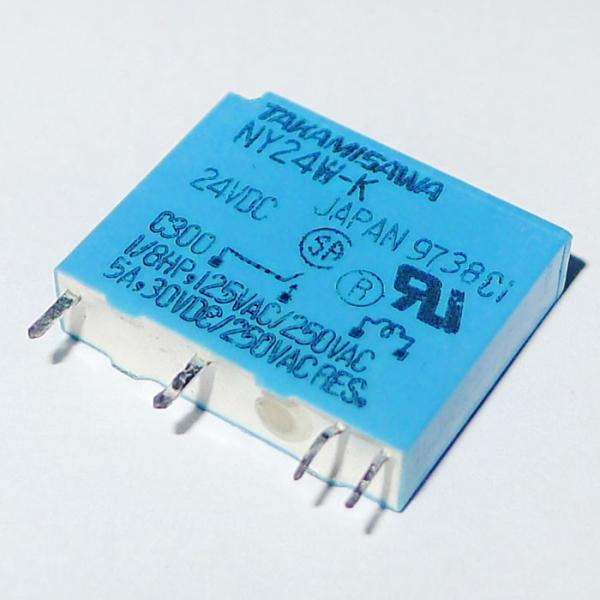

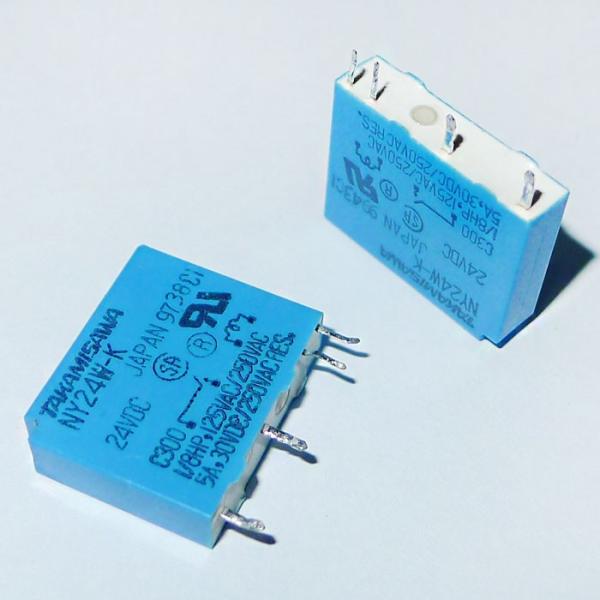

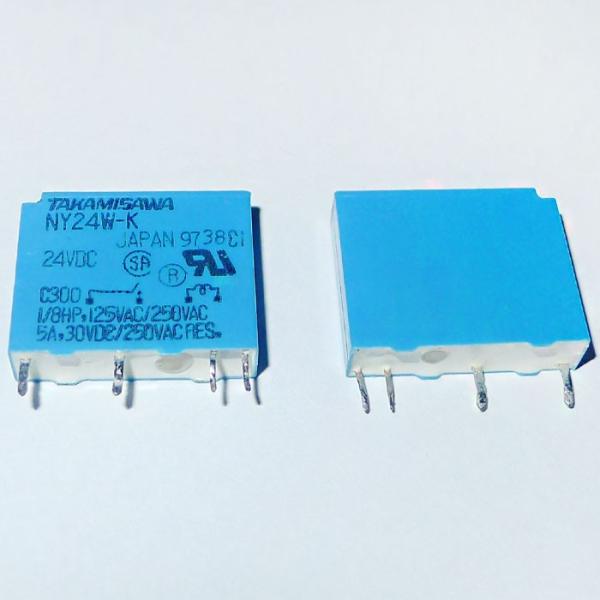

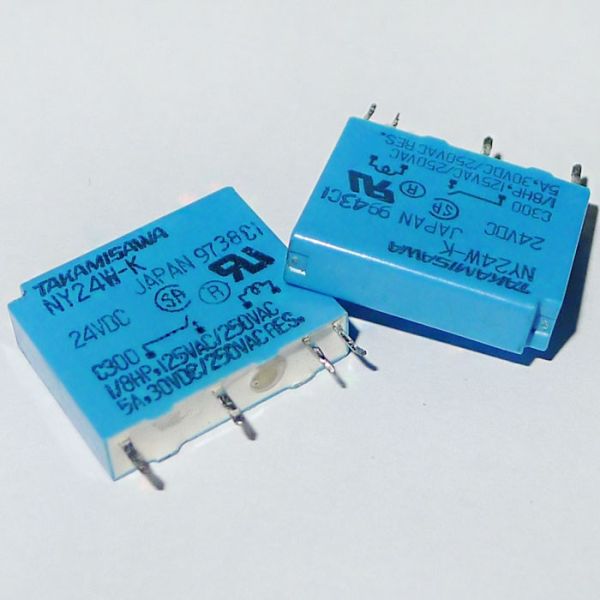

1.PICTURE

NY24W-K 24VDC 5A 4 pins 30VDC/250VAC miniature power relay

NY24W-K 24VDC 5A 4 pins 30VDC/250VAC miniature power relay

NY24W-K 24VDC 5A 4 pins 30VDC/250VAC miniature power relayNY24W-K 24VDC 5A 4 pins 30VDC/250VAC miniature power relay

1.FEATURES

*Slim type wth 5mm thickmess,suited for high density mounting

*Low power consumption and high sensitity

*Nominal coil power:120mW

*Operating powe:54mV

*UL and CSA recognized

*Conforms to IEC61010,61131

*High insulation

*Surge voltage:5.080V

*Dielectric strength:3.000VAC(coil and contacts)

*SIL pitch terminals

*Plastic sealed type,RTIII

*Compatible with solid state 1/0 module type SN in Size and pin (terminal)arrangement

*Environmentally friendly cadmium free conract type

*RoHS compliant

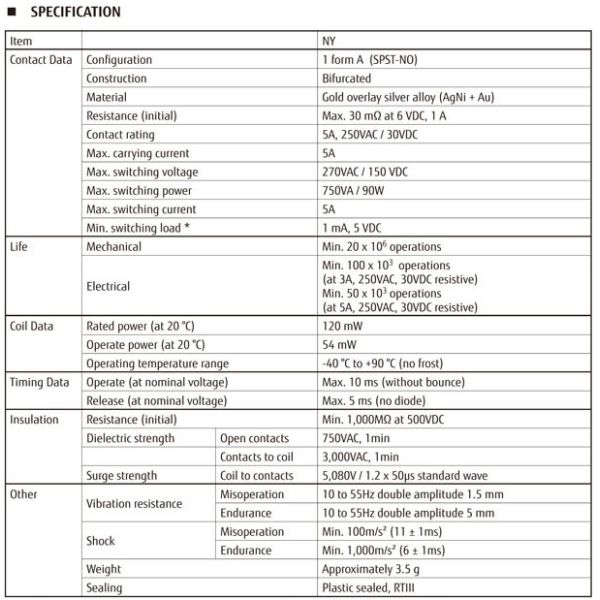

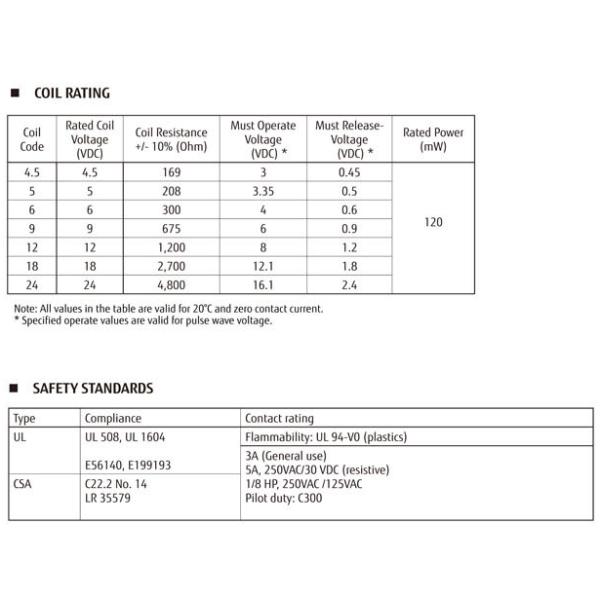

Contact Parameter Coil Parameter
Conatact Form1A(SPST)Value of resistance(±10%)4800Ω
Contact load3A 250VAC or 3 A 30VDCCoil power120mW
Impedance≤30mΩRated voltageDC24V
Rated current5AAbsord voltageDC16.1V
Electric life≥150000Release voltageDC2.4V
Mechanical life≥20000000Working temperature-40℃~+90℃
Insulation Resistance≥1000MΩ
Coil and contact pressure3000VAC/1M
Contact and vontact pressure750VAC/1M
