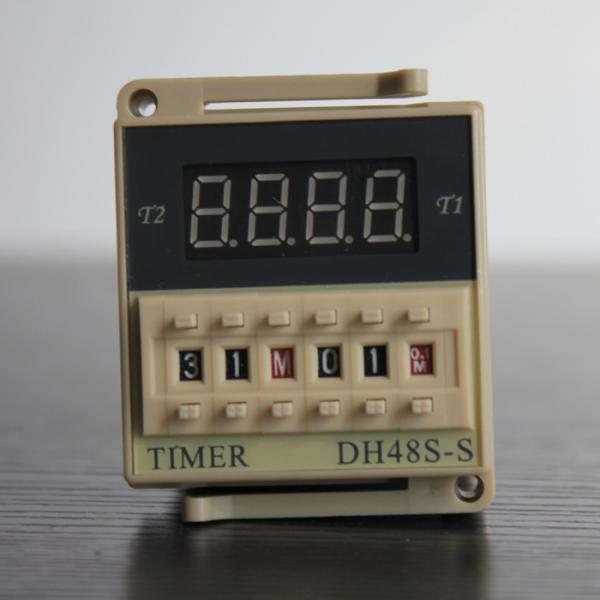

DH48S-S/1Z/2Z/1Z/Repeat cycle SPDT Time Relay solid state relay Sealed With Relay Socket
DH48S-S/1Z/2Z/1Z/Repeat cycle SPDT Time Relay solid state relay Sealed With Relay Socket
DH48S-S/1Z/2Z/1Z/Repeat cycle SPDT Time Relay solid state relay Sealed With Relay Socket
DH48S-S/1Z/2Z/1Z/Repeat cycle SPDT Time Relay solid state relay Sealed With Relay Socket
DH48S-S/1Z/2Z/1Z/Repeat cycle SPDT Time Relay solid state relay Sealed With Relay Socket
DH48S-S/1Z/2Z/1Z/Repeat cycle SPDT Time Relay solid state relay Sealed With Relay Socket
DH48S-S/1Z/2Z/1Z/Repeat cycle SPDT Time Relay solid state relay Sealed With Relay Socket
DH48S-S/1Z/2Z/1Z/Repeat cycle SPDT Time Relay solid state relay Sealed With Relay Socket
DH48S-S/1Z/2Z/1Z/Repeat cycle SPDT Time Relay solid state relay Sealed With Relay Socket
DH48S-S/1Z/2Z/1Z/Repeat cycle SPDT Time Relay solid state relay Sealed With Relay Socket
DH48S-S/1Z/2Z/1Z/Repeat cycle SPDT Time Relay solid state relay Sealed With Relay Socket
DH48S-S/1Z/2Z/1Z/Repeat cycle SPDT Time Relay solid state relay Sealed With Relay Socket
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
kampa
Model Number :
DH48S-S
Theory :
Time Relay
Usage :
PROTECTIVE
Size :
Miniature
Protect Feature :
Sealed
Contact Load :
Low Power
Name :
time delay relay
OEM :
Yes
Certificate :
CE
Type :
DH48S-S
Dimension :
123*48*48mm
Work Form :
Cycle Delay
Contact Electrical Life :
100,000times
Operation Temperature :
~5°C~+40°C
Delay Specification :
0.01s~99h
Installation` :
Front-Panel,Din Rail,Device
Packaging Details :
Standard export package
Port :
Ningbo/shanghai
Supply Ability :
10000 Piece/Pieces per Month
MOQ :
60 Pieces
Price :
$3.00 - $5.00/Pieces
Description

DH48S-S/1Z/2Z/1Z/Repeat cycle SPDT Time Relay solid state relay Sealed With Relay Socket

DH48S series digital time relay

finglaiContact form and delay time
Model numberProduct nameContact formDelay timeRelated product
DH48S-1ZTime relayOn-delay SPDT1m-99h99m; 1s-99m99s; 0.01s-99.99sVisiting...
DH48S-2ZTime relayOn-delay DPDT1m-99h99m; 1s-99m99s; 0.01s-99.99sOrder
DH48S-2ZHTime relayOn-delay SPDT with SPDT instantaneous1m-99h99m; 1s-99m99s; 0.01s-99.99sOrder
DH48S-STime relayRepeat cycle SPDT0.1s-99hOrder
DH48S-S-2ZTime relayRepeat cycle DPDT0.1s-99hOrder
finglaiGeneral
Model numberDH48S
Supply voltage36, 110, 220 or 380 Vac, 50/60 Hz; 12Vac/Vdc, 24Vac/Vdc
Tolerance-15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage
Power consumption2W max
Setting methodDial switch
Indication method8-segment 4-digital display
External dimensions48x48x97.4 mm
Perforate dimensions45 10x45 10 mm
Contact rating3A@250Vac, 5A@28Vdc
Repeat accuracy±0.3%, ±0.05 sec
Setting error±0.5%, ±0.05 sec
Termination8 pins
MountingPanel, din rail
Matched socketPF083A, PF083A-E
Mechanical life1x106
Electrical life1x105
Operating temperature0 to 50 °C (32 to 122 °F)
Operating humidity95% RH max, non-condensing
Alias nameDH48S digital timer
