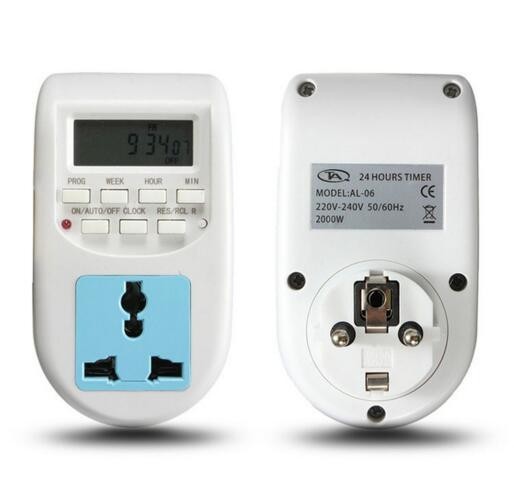

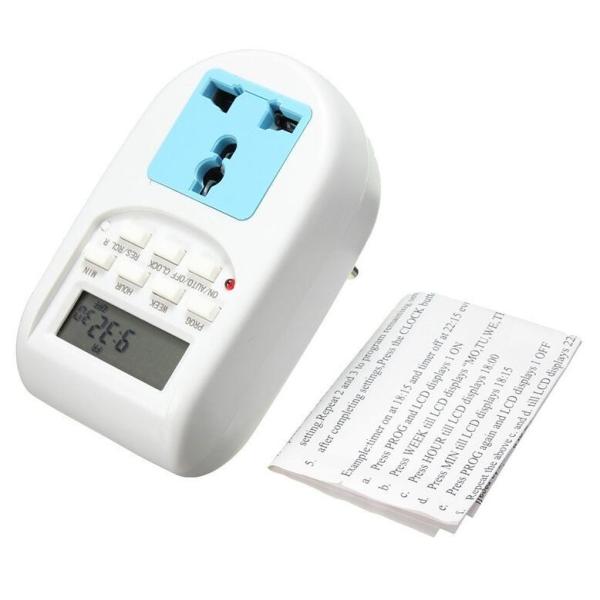

AL-06 24 Hours Timer 220V-240V 50/60Hz 2000W Digital Time Switch Timer With UK Socket and UK Plug
AL-06 24 Hours Timer 220V-240V 50/60Hz 2000W Digital Time Switch Timer With UK Socket and UK Plug
AL-06 24 Hours Timer 220V-240V 50/60Hz 2000W Digital Time Switch Timer With UK Socket and UK Plug
AL-06 24 Hours Timer 220V-240V 50/60Hz 2000W Digital Time Switch Timer With UK Socket and UK Plug
AL-06 24 Hours Timer 220V-240V 50/60Hz 2000W Digital Time Switch Timer With UK Socket and UK Plug
AL-06 24 Hours Timer 220V-240V 50/60Hz 2000W Digital Time Switch Timer With UK Socket and UK Plug
AL-06 24 Hours Timer 220V-240V 50/60Hz 2000W Digital Time Switch Timer With UK Socket and UK Plug
AL-06 24 Hours Timer 220V-240V 50/60Hz 2000W Digital Time Switch Timer With UK Socket and UK Plug
AL-06 24 Hours Timer 220V-240V 50/60Hz 2000W Digital Time Switch Timer With UK Socket and UK Plug
AL-06 24 Hours Timer 220V-240V 50/60Hz 2000W Digital Time Switch Timer With UK Socket and UK Plug
AL-06 24 Hours Timer 220V-240V 50/60Hz 2000W Digital Time Switch Timer With UK Socket and UK Plug
AL-06 24 Hours Timer 220V-240V 50/60Hz 2000W Digital Time Switch Timer With UK Socket and UK Plug
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
OEM
Model Number :
AL-06
Theory :
Digital
Usage :
Timer Switch
Type :
Mini
Type: :
Plug with Socket
Net weight: :
116g
set-up: :
Easy to set-up
Rated Current: :
10A
Standard: :
EU Plug
AC: :
220V-240V

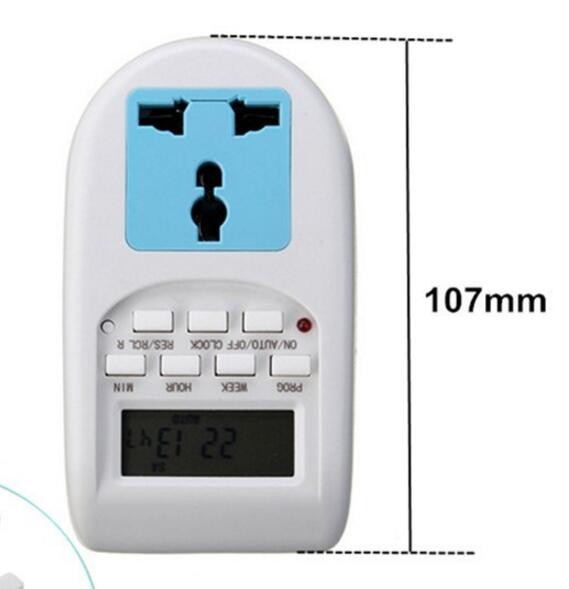

Item size: :
107*65*35mm
Packet content: :
1 x Digital Timer Plug ,1 x User manual
Operating temperature :
-10 to +40℃
Packaging Details :
Unit Type: piece Package Weight: 0.300kg (0.66lb.)
Package Size: 15cm x 11cm x 8cm (5.91in x 4.33in x 3.15in)
Port :
ningbo/shanghai
Supply Ability :
10000 Piece/Pieces per Month
MOQ :
10 Pieces
Price :
$3.80 - $5.50/Pieces
Description

AL-06 Programmable Electronic timer socket EU Plug and UK Plug Optional 220V-240V 10A 50/60Hz 2200W

AL-06 24 Hours Timer 220V-240V 50/60Hz 2000W Digital Time Switch Timer With UK Socket and UK PlugAL-06 24 Hours Timer 220V-240V 50/60Hz 2000W Digital Time Switch Timer With UK Socket and UK PlugAL-06 24 Hours Timer 220V-240V 50/60Hz 2000W Digital Time Switch Timer With UK Socket and UK Plug

AL-06 24 Hours Timer 220V-240V 50/60Hz 2000W Digital Time Switch Timer With UK Socket and UK PlugAL-06 24 Hours Timer 220V-240V 50/60Hz 2000W Digital Time Switch Timer With UK Socket and UK PlugAL-06 24 Hours Timer 220V-240V 50/60Hz 2000W Digital Time Switch Timer With UK Socket and UK Plug

SETTING CURRENT TIME

  1. Press the CLOCK button and hold,simultaneously press the week button until the actual day is displayed.Continue by pressing HOUR or MINUTE button until the current hour or minute is displayed.When setting,the buttons week,hour or minute can be held down for rapid forward counting.
  2. release both buttons.The week and time will be set .
  3. to reset incorrect time ,repeat previous steps.

SETTING PROGRAMS

  1. press the PROG button and release.The first on setting can be made now .
  2. press WEEK button to set the day or blocks of days.Set the time by pressing the HOUR button and then MIN button.
  3. press the PROG button again to finish the first on setting and enter into the first off setting.By repeating 2 to make the first off setting.
  4. press the PROG button again to finish the first off setting and enter into the 2 on setting.Repeat 2 and 3to program remaining settings.
  5. after completing settings,Press the CLOCK button and the timer is ready to operate.

MANUAL ON/AUTO/MANUAL OFF SETING

  1. Press ON/AUTO/OFF button to revert the three mode in turn.
  2. In ON or OFF mode the TIMER doesn’t operate as settings in AUTO mode.
  3. When the mode is turned from ON(or OFF)to AUTO ,the Timer will keep the setting of ON(or OFF) until to the next timer setting.

SPECIFICATIONS

Voltage 220-240V AC 50Hz

Max Load 10A,

Min setting Time 1Minute

Operating temperature -10 to +40℃

Accuracy +/-1minute per month

Batterybackup Ni-Mh 1.2V 80mAH




Packaging & Shipping

AL-06 24 Hours Timer 220V-240V 50/60Hz 2000W Digital Time Switch Timer With UK Socket and UK Plug

Company Information

AL-06 24 Hours Timer 220V-240V 50/60Hz 2000W Digital Time Switch Timer With UK Socket and UK Plug

Yueqing Kampa Electric Co.,Ltd. is Established in 1990.Has variety of goods ,such as Relay,Circuit breaker,Switches,Thermocouple,Thermostat,Temperature controller,Switch power supply,AVS,Heat sink,Heater,Distribution box,Junction box and so on.We are manufacturer and have ten years experience in Electrical industry.

AL-06 24 Hours Timer 220V-240V 50/60Hz 2000W Digital Time Switch Timer With UK Socket and UK Plug

AL-06 24 Hours Timer 220V-240V 50/60Hz 2000W Digital Time Switch Timer With UK Socket and UK Plug

Our Services

AL-06 24 Hours Timer 220V-240V 50/60Hz 2000W Digital Time Switch Timer With UK Socket and UK Plug

A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.
