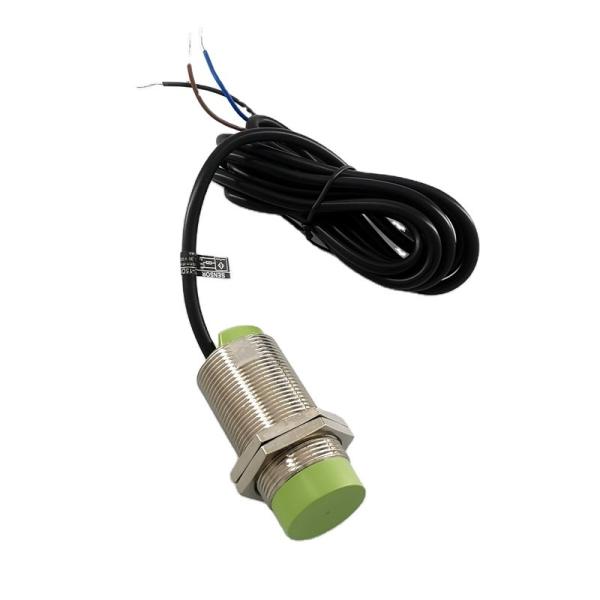

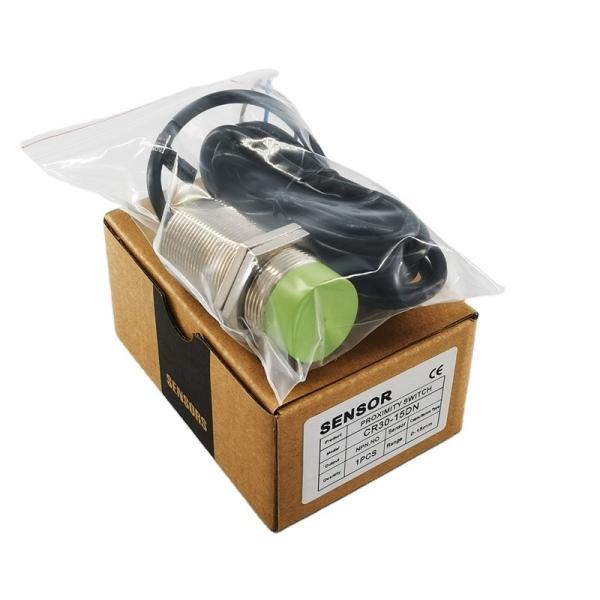

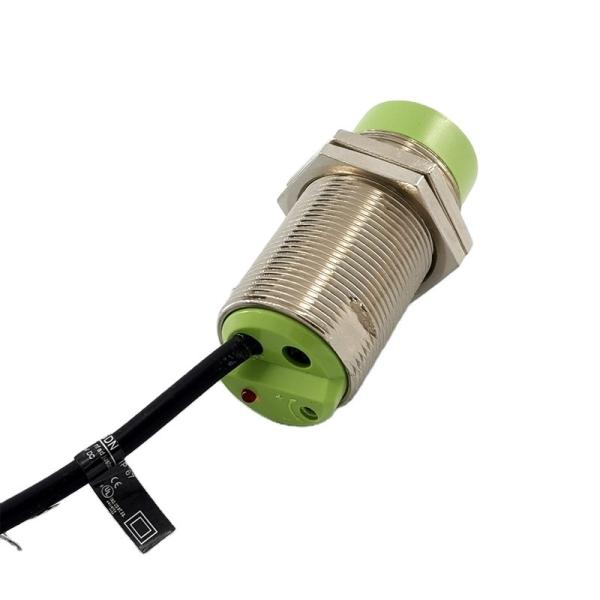

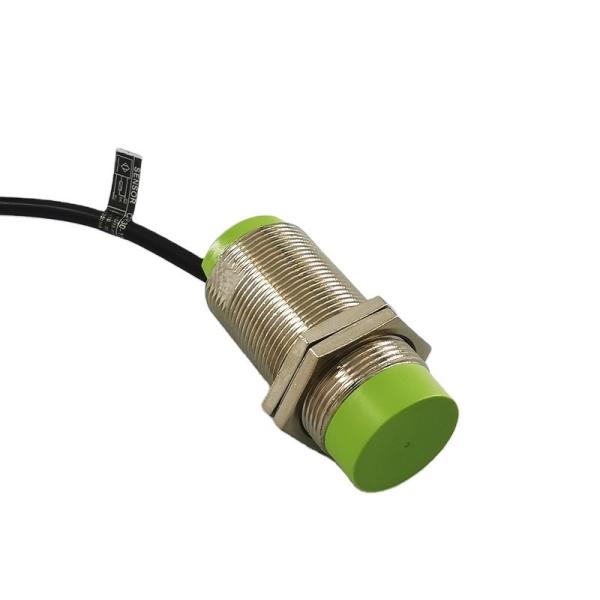

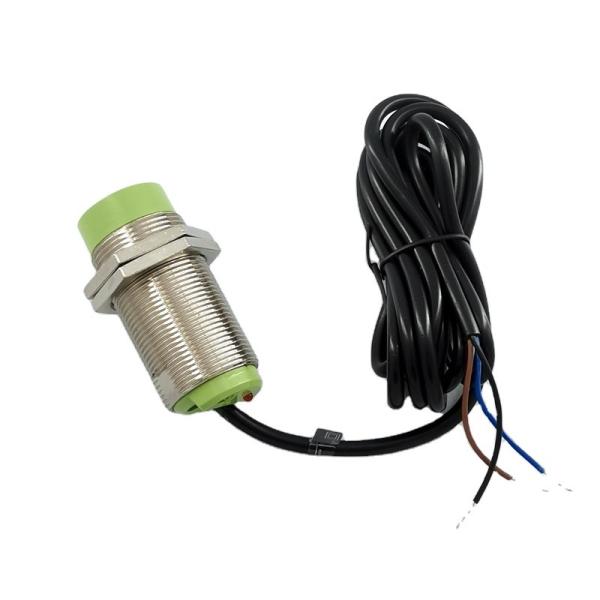

CR30-15AO proximity sensor 15mm sensing distance AC240V 2-wire sensor switch
CR30-15AO proximity sensor 15mm sensing distance AC240V 2-wire sensor switch
CR30-15AO proximity sensor 15mm sensing distance AC240V 2-wire sensor switch
CR30-15AO proximity sensor 15mm sensing distance AC240V 2-wire sensor switch
CR30-15AO proximity sensor 15mm sensing distance AC240V 2-wire sensor switch
CR30-15AO proximity sensor 15mm sensing distance AC240V 2-wire sensor switch
CR30-15AO proximity sensor 15mm sensing distance AC240V 2-wire sensor switch
CR30-15AO proximity sensor 15mm sensing distance AC240V 2-wire sensor switch
CR30-15AO proximity sensor 15mm sensing distance AC240V 2-wire sensor switch
CR30-15AO proximity sensor 15mm sensing distance AC240V 2-wire sensor switch
Specifications
Model Number :
CR30-15AO
Type :
Capacitive Proximity Sensor
Place of Origin :
Zhejiang, China
Brand Name :
KAMPA
Usage :
Position Sensor
Theory :
Capacitive Sensor
Output :
Switching Transducer
Description :
Capacitive Proximity Sensor
Product name :
Capacitive Proximity Sensor
Model :
CR30-15AO
Wire type and power :
AC 2-wire type 100-240VAC
Sensing side diameter :
M30
Sensing distance :
15mm
Control output :
NO
Standard sensing target :
Iron 50*50*1mm
Response frequency :
20Hz
Leakage current :
<2.2mA
Material :
Brass Nickel-plated
Packaging Details :
standard export carton packing.
Port :
Ningbo
Supply Ability :
10000 Piece/Pieces per Month
MOQ :
100 Pieces
Price :
$6.30/Pieces 100-499 Pieces
Description
Specification
Product name
Proximity Sensor
Place of origin
Zhejiang,China
Brand name
KAMPA
Usage
Position Sensor
Model number
CR30-15AO
Wire type and power
AC 2-wire type 100-240VAC
Sensing side diameter
M30
Sensing distance
15mm
Standard sensing target
50×50×1mm(iron)
Response frequency
20Hz
Leakage current
＜2.2mA
Control output
NO (Normally Open)
Protection structure
IP65
Material
Brass Nickel-plated
Environment_Ambient temperature
-25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity
35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance)
Max. 20% of sensing distance

Specifications of CR Series

DC 3-wire type 12-24VDC, AC 2-wire type 100-240VAC
Wire type
Model
Control output
DIA. of sensing side
Sensing distance
Setting distance



DC 3-wire
CR18-8DN
CR18-8DN2
CR18-8DP
NPN NO (Normally Open)
NPN NC (Normally Closed)
PNP NO (Normally Open)

∅18mm

8mm

0~5.6mm
CR30-15DN
CR30-15DN2
CR30-15DP
NPN NO (Normally Open)
NPN NC (Normally Closed)
PNP NO (Normally Open)

∅30mm

15mm

0~10.5mm


AC 2-wire
CR18-8AO
CR18-8AC
NO (Normally Open)
NC (Normally Closed)

∅18mm

8mm

0~5.6mm
CR30-15AO
CR30-15AC
NO (Normally Open)
NC (Normally Closed)

∅30mm

15mm

0~10.5mm
Hysteresis
≤20% of sensing distance
Standard sensing target
Iron 50*50*1mm
Response frequency
DC:50Hz，AC:20Hz
Wire type and power
DC 3-wire type 12-24VDC，
AC 2-wire type 100-240VAC
Affection by temperature
≤±20% for sensing distance at ambient temperature 20℃
Indicator
Operation indicator (red)
Appearance
Cylindrical
Power supply
12-24 VDC, operating voltage 10-30 VDC,
100-240VAC 50/60Hz, operating voltage 85-264VAC
Current consumption DC
≤15mA
Leakage current AC
≤2.2mA
Control output
DC:≤200mA, AC:5-200mA
Ambient temperature
-25 to 70℃, storage: -30 to 80℃(non-freezing or non-condensation)
Ambient humidity
35 to 95%RH, storage: 35 to 95%RH(non-freezing or non-condensation)
Protection structure
DIA. of sensing side ∅18mm: IP66(IEC standard)/
DIA. of sensing side ∅30mm: IP65(IEC standard)
Connection
Cable type
Cable spec.
DIA. of sensing side ∅18mm: ∅4mm, 3-wire, 2m
DIA. of sensing side ∅30mm: ∅5mm, 3-wire, 2m
Wire spec.
AWG 22 (0.08mm,60-wire), insulator DIA.: ∅1.25mm



Material
Standard type cable (black): PVC
DIA. of sensing side ∅18mm: case/nut: PA6
DIA. of sensing side ∅30mm:
case/nut: nickel-plated brass
washer: nickel-plated iron
sensing side: PBT
Product Description
CR30-15AO proximity sensor 15mm sensing distance AC240V 2-wire sensor switch
CR30-15AO proximity sensor 15mm sensing distance AC240V 2-wire sensor switch
CR30-15AO proximity sensor 15mm sensing distance AC240V 2-wire sensor switch
CR30-15AO proximity sensor 15mm sensing distance AC240V 2-wire sensor switch
Company Profile
Yueqing Kampa Electric Co., Ltd. is Established in 1990.Has variety of goods,such as Relay,Circuit breaker,Switching Power Supply,Time Relay,Distribution Box,Proximity Switch, temperature controller, contactor, solid state relay, Mould Case Circuit Breaker, hour meter, electric power relay and so on. Most of them are exported to Europe , America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts.
CR30-15AO proximity sensor 15mm sensing distance AC240V 2-wire sensor switch
CR30-15AO proximity sensor 15mm sensing distance AC240V 2-wire sensor switch
CR30-15AO proximity sensor 15mm sensing distance AC240V 2-wire sensor switch
CR30-15AO proximity sensor 15mm sensing distance AC240V 2-wire sensor switch
CR30-15AO proximity sensor 15mm sensing distance AC240V 2-wire sensor switch
CR30-15AO proximity sensor 15mm sensing distance AC240V 2-wire sensor switch
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2009,sell to Africa(56.00%),South America(25.00%),Eastern Europe(10.00%),Southeast Asia(5.00%),Oceania(2.00%),Mid East(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Solid state relay,Proximity sensor,Surge protector device

4. why should you buy from us not from other suppliers?
1. 15years' export experience. 2. We can help one electric shop to arrange the products. 3. OEM, ODM available. Quality product with Quality service. 7*24 hours standby. 4. Young sales but professional.

5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese
