LJ16A3-5-Z/EX M16 PNP NO 3-wire 1DC6-36V 1-5mm Magnetic Proximity Sensor waterproof
LJ16A3-5-Z/EX M16 PNP NO 3-wire 1DC6-36V 1-5mm Magnetic Proximity Sensor waterproof
LJ16A3-5-Z/EX M16 PNP NO 3-wire 1DC6-36V 1-5mm Magnetic Proximity Sensor waterproof
LJ16A3-5-Z/EX M16 PNP NO 3-wire 1DC6-36V 1-5mm Magnetic Proximity Sensor waterproof
LJ16A3-5-Z/EX M16 PNP NO 3-wire 1DC6-36V 1-5mm Magnetic Proximity Sensor waterproof
LJ16A3-5-Z/EX M16 PNP NO 3-wire 1DC6-36V 1-5mm Magnetic Proximity Sensor waterproof
Specifications
Model Number :
LJ16A3-5-Z/EX
Place of Origin :
Zhejiang, China
Brand Name :
Kampa
Usage :
Ray Sensor
Theory :
Inductance Sensor
Output :
Analog SENSOR
Detect object :
conductor and dielectric body
Consumption current :
DC<15mA AC<10mA
Output current :
DC:200mA AC:300mA
Output voltage drop :
DC<3V AC<7V
Response frequency :
DC:50HZ AC:10HZ
Shell material :
Resin/Metal
Working environment temperature :
below 25C to 70C
Insulation resistance :
50MΩ
Packaging Details :
Poids du colis : 0.500kg (1.10lb.) Dimensions du colis : 10cm x 10cm x 5cm (3.94in x 3.94in x 1.97in)
Port :
Ningbo/Shanghai
Supply Ability :
100000 Piece/Pieces per Month
MOQ :
10000 Pieces
Price :
$2.60 - $6.80/Pieces
Description

LJ16A3-5-Z/EX M16 PNP NO 3-wire 1DC6-36V 1-5mm Magnetic Proximity Sensor waterproof

1.Picture

Installation MethodNonshielded Cathode

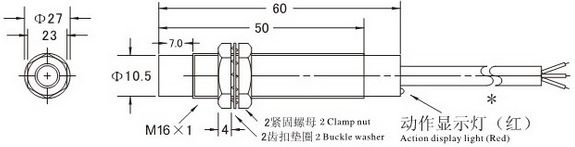

SizeLJ16A3-5-Z/EX M16 PNP NO 3-wire 1DC6-36V 1-5mm Magnetic Proximity Sensor waterproof
TYPEDC TypeNPNNOLJ16A3-5-Z/BX
NCLJ16A3-5-Z/AX
NO+NCLJ16A3-5-Z/CX
PNPNOLJ16A3-5-Z/BY
NOLJ16A3-5-Z/AY
NO+ACLJ16A3-5-Z/CY
2-wiresNOLJ16A3-5-Z/EX
NCLJ16A3-5-Z/DX
AC Type2-wiresNOLJ16A3-5-J/EX
NCLJ16A3-5-T/DZ
3-WiresNP+NC
Dected distance5mm±10%
Set distance0-4mm
Delay distanceBelo10% detected distance
Detect objectMagnetic metal
Standard detected object

Iron 30*30*1mm

Resonance FrequencyDC:0.5KHZ AC:25HZ
Supply voltage

DC type:DC12V-24V(6-36V) Below 10% (P-P)

AC type:AC110-220V(36-250V)50/60HZ

Withstand voltage

AC1000V 50/60Hz 1min

Effect of applied potential

Within range of rated voltage ±15%

Within Value of range dection rated voltage±10%

consumption current

N.P Type:below 13mA

D type:below 0.8mA

A type:below 1.7mA

Control Input

N.P Type:below 300mA

D Type:below 200mA

A Type:below 400mA

Circuit pretection

N.P.D Type:Reserse connect protection,surge absorption,load short circuit protection

A stlye:Surge absoption

Temperature

Humidity

-30~+65a℃

-35-60%RH

Insulation resistance

50MΩ

Protection instruction

IP67

2.PICTURE

LJ16A3-5-Z/EX M16 PNP NO 3-wire 1DC6-36V 1-5mm Magnetic Proximity Sensor waterproof

LJ16A3-5-Z/EX M16 PNP NO 3-wire 1DC6-36V 1-5mm Magnetic Proximity Sensor waterproof

Packaging & Shipping

LJ16A3-5-Z/EX M16 PNP NO 3-wire 1DC6-36V 1-5mm Magnetic Proximity Sensor waterproof

Company Information

LJ16A3-5-Z/EX M16 PNP NO 3-wire 1DC6-36V 1-5mm Magnetic Proximity Sensor waterproofLJ16A3-5-Z/EX M16 PNP NO 3-wire 1DC6-36V 1-5mm Magnetic Proximity Sensor waterproof

LJ16A3-5-Z/EX M16 PNP NO 3-wire 1DC6-36V 1-5mm Magnetic Proximity Sensor waterproof

A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.

B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.
