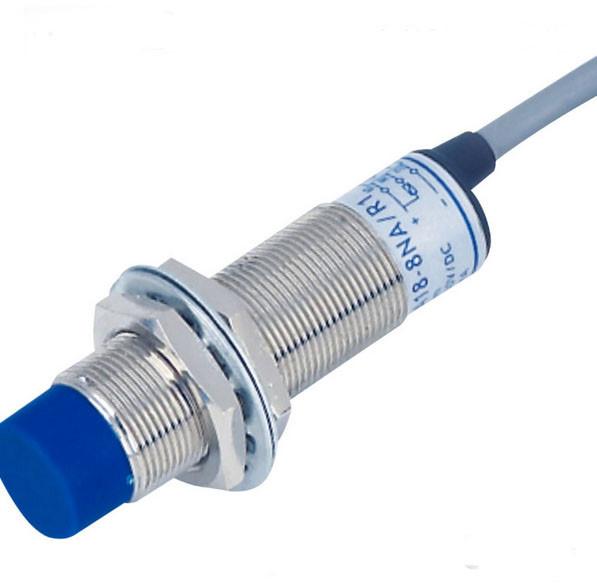

LJ18A3-8-Z/BX M18 DC NPN NO 8mm Inductive Electric Proximity Sensor Switch
LJ18A3-8-Z/BX M18 DC NPN NO 8mm Inductive Electric Proximity Sensor Switch
LJ18A3-8-Z/BX M18 DC NPN NO 8mm Inductive Electric Proximity Sensor Switch
LJ18A3-8-Z/BX M18 DC NPN NO 8mm Inductive Electric Proximity Sensor Switch
LJ18A3-8-Z/BX M18 DC NPN NO 8mm Inductive Electric Proximity Sensor Switch
LJ18A3-8-Z/BX M18 DC NPN NO 8mm Inductive Electric Proximity Sensor Switch
Specifications
Model Number :
M181LJ18A3-8-Z/EZ
Place of Origin :
Zhejiang, China
Brand Name :
Kampa
Usage :
Ray Sensor
Theory :
Inductance Sensor
Output :
Analog SENSOR
Detect object :
conductor and dielectric body
Detection distance :
8mm + 10%
Standard test object :
Iron 30*30*1mm
Current consumption :
Type N.P: 13mA, D: 0.8mA, A: 1.7mA
Protection structure :
IP67 (IEC)
Frequency response :
DC:0.5kHz AC:25Hz
Set the distance :
Type N.P: 300mA, D: 200mA, A:400mA
supply voltage :
DC type: DC12 - 24V (6-36V) AC: AC110 - 220V (36 - 250V)
Packaging Details :
Poids du colis : 0.500kg (1.10lb.) Dimensions du colis : 10cm x 10cm x 5cm (3.94in x 3.94in x 1.97in)
Port :
Ningbo/Shanghai
Supply Ability :
100000 Piece/Pieces per Month
MOQ :
100000 Pieces
Price :
$2.80 - $5.00/Pieces
Description

LJ18A3-8-Z/BX M18 DC NPN NO 8mm Inductive Electric Proximity Sensor Switch

1.SPECIFICATION
LJ18A3-8-Z/BX M18 DC NPN NO 8mm Inductive Electric Proximity Sensor Switch
TYPEDC TypeNPNNOLJ18A3-8-Z/BX
NCLJ18A3-8-Z/AX
NO+NCLJ18A3-8-Z/CY
PNPNOLJ18A3-8-Z/BY
NOLJ18A3-8-Z/AY
NO+ACLJ18A3-8-Z/CY
2-wiresNOLJ18A3-8-Z/EX
NCLJ18A3-8-Z/DC
AC Type2-wiresNOLJ18A3-8-J/EZ
NCLJ18A3-8-J/DZ
3-WiresNP+NC
Dected distance8mm±10%
Set distance0-7mm
Delay distanceBelo10% detected distance
Detect objectMagnetic metal
Standard detected object

Iron 30*30*1mm

Resonance FrequencyDC:0.5KHZ AC:25HZ
Supply voltage

DC type:DC12V-24V(6-36V) Below 10% (P-P)

AC type:AC110-220V(36-250V)50/60HZ

Withstand voltage

AC1000V 50/60Hz 1min

Effect of applied potential

Within range of rated voltage ±15%

Within Value of range dection rated voltage±10%

consumption current

N.P Type:below 13mA

D type:below 0.8mA

A type:below 1.7mA

Control Input

N.P Type:below 300mA

D Type:below 200mA

A Type:below 400mA

Circuit pretection

N.P.D Type:Reserse connect protection,surge absorption,load short circuit protection

A stlye:Surge absoption

Temperature

Humidity

-30~+65a℃

-35-60%RH

Insulation resistance

50MΩ

Protection instruction

IP67

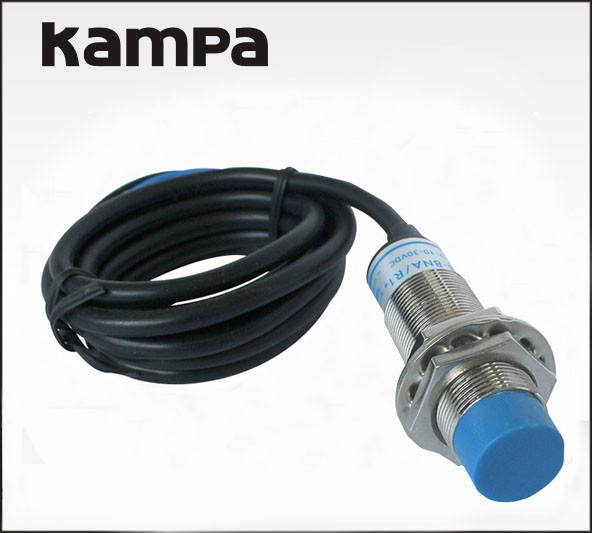

2.PICTURE
LJ18A3-8-Z/BX M18 DC NPN NO 8mm Inductive Electric Proximity Sensor SwitchLJ18A3-8-Z/BX M18 DC NPN NO 8mm Inductive Electric Proximity Sensor SwitchLJ18A3-8-Z/BX M18 DC NPN NO 8mm Inductive Electric Proximity Sensor Switch
