Specifications
Model Number :
M181LJ18A3-8-Z/EZ
Place of Origin :
Zhejiang, China
Brand Name :
Kampa
Usage :
Ray Sensor
Theory :
Inductance Sensor
Output :
Analog SENSOR
Detect object :
conductor and dielectric body
Detection distance :
8mm + 10%
Standard test object :
Iron 30*30*1mm
Current consumption :
Type N.P: 13mA, D: 0.8mA, A: 1.7mA
Protection structure :
IP67 (IEC)
Frequency response :
DC:0.5kHz AC:25Hz
Set the distance :
Type N.P: 300mA, D: 200mA, A:400mA
supply voltage :
DC type: DC12 - 24V (6-36V) AC: AC110 - 220V (36 - 250V)
Packaging Details :
Poids du colis : 0.500kg (1.10lb.) Dimensions du colis : 10cm x 10cm x 5cm (3.94in x 3.94in x 1.97in)
Port :
Ningbo/Shanghai
Supply Ability :
100000 Piece/Pieces per Month
MOQ :
100000 Pieces
Price :
$2.80 - $6.80/Pieces
Description

M18 3 wires 12v npn capacitive proximity approach capacitance cylinder sensor light switch

Product Description

1. Pictures of sensor switch

M18 3 wires 12v npn capacitive proximity approach capacitance cylinder sensor light switchM18 3 wires 12v npn capacitive proximity approach capacitance cylinder sensor light switchM18 3 wires 12v npn capacitive proximity approach capacitance cylinder sensor light switch

2.Description of sensor switch

modelLJ18A3-8-.

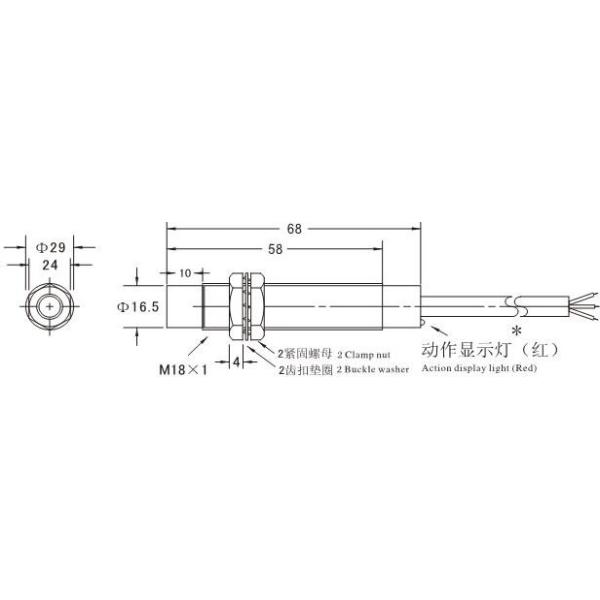

sizeM18 3 wires 12v npn capacitive proximity approach capacitance cylinder sensor light switch
Installation modeNonshielded
modelDC typeNPNNOLJ18A3-8-Z/BX
NCLJ18A3-8-Z/AX
NO+NCLJ18A3-8-Z/CX
PNPNOLJ18A3-8-Z/BY
NC-8-Z/AY
NO+NCLJ18A3-8-Z/CY
second line—an advisory postNOLJ18A3-8-Z/EX
NCLJ18A3-8-Z/DX
ACsecond line—an advisory postNOLJ18A3-8-J/EZ
NCLJ18A3-8-J/DZ
Three lineNO+NCLJ18A3-8-J/EDZ
Detection distance8mm + 10%
Set the distance0 - 7mm
Lag distanceThe detection range below 10%
Object detectionMagnetic metal (non magnetic metal detection distance decreases)
Standard test objectIron 30*30*1mm
Frequency responseDC:0.5kHz AC:25Hz
supply voltageDC type: DC12 - 24V (6-36V) pulse (P-P) below 10%,
AC: AC110 - 220V (36 - 250V) 50/60Hz
Withstanding voltageAC1000V 50/60Hz 1min charging part and the shell.
The influence of voltageWithin the rated supply voltage range 15% rated supply voltage of + 10% detection distance
Current consumptionType N.P: 13mA, D: 0.8mA, A: 1.7mA
Output controlType N.P: 300mA, D: 200mA, A: 400mA
Loop protectionType N.P.D: reverse connection protection, surge absorption, load short-circuit protection, type A: surge absorption
The environment temperature and humidityWhen the movement, save the -30 +65 C
(ice, frost), action, save time: 35 - 95%RH
The influence of temperatureThe temperature range of -30 DEG C - +65, +23 C, + 15% detection distance
The temperature range of -25 DEG C - +60, +23 C, + 10% detection distance
Insulation resistanceThe above 50M (DC500 megameter) charging part and the shell.
texture of materialShell: nickel plated brass surface detection: ABS
Protection structureIP67 (IEC)
