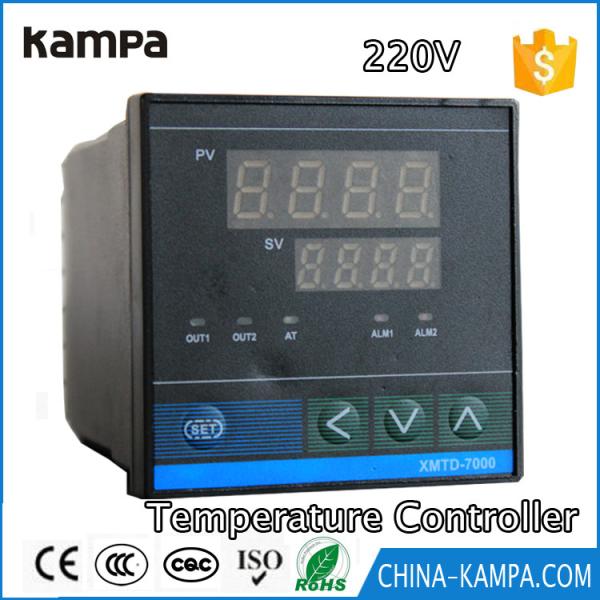

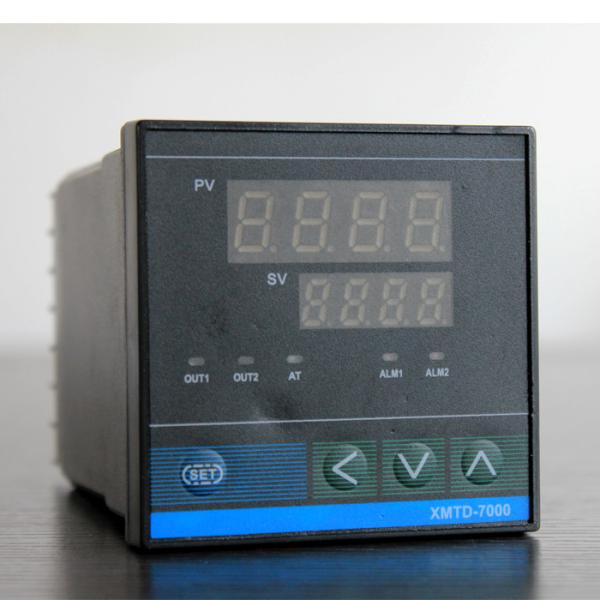

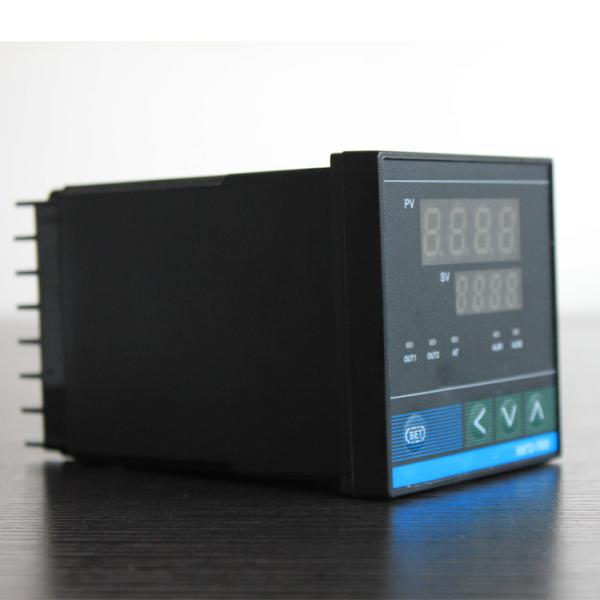

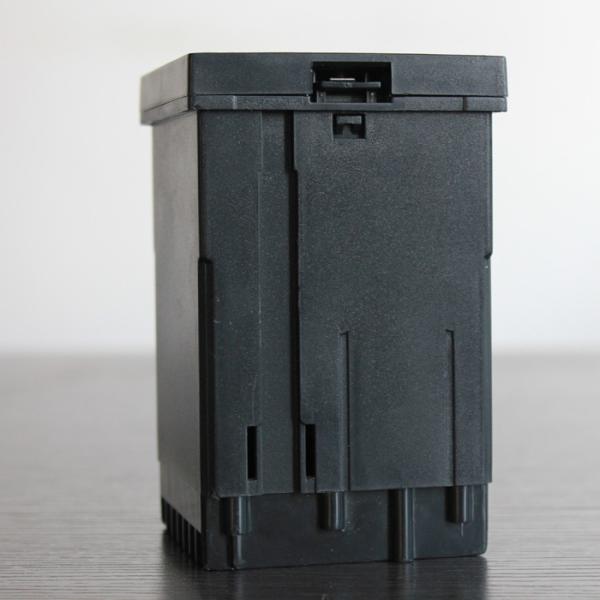

XMTD-7000 series XMTD-7411 7412 thermostat temperature control table PID intelligent temperature controller
XMTD-7000 series XMTD-7411 7412 thermostat temperature control table PID intelligent temperature controller
XMTD-7000 series XMTD-7411 7412 thermostat temperature control table PID intelligent temperature controller
XMTD-7000 series XMTD-7411 7412 thermostat temperature control table PID intelligent temperature controller
XMTD-7000 series XMTD-7411 7412 thermostat temperature control table PID intelligent temperature controller
XMTD-7000 series XMTD-7411 7412 thermostat temperature control table PID intelligent temperature controller
XMTD-7000 series XMTD-7411 7412 thermostat temperature control table PID intelligent temperature controller
XMTD-7000 series XMTD-7411 7412 thermostat temperature control table PID intelligent temperature controller
XMTD-7000 series XMTD-7411 7412 thermostat temperature control table PID intelligent temperature controller
XMTD-7000 series XMTD-7411 7412 thermostat temperature control table PID intelligent temperature controller
XMTD-7000 series XMTD-7411 7412 thermostat temperature control table PID intelligent temperature controller
XMTD-7000 series XMTD-7411 7412 thermostat temperature control table PID intelligent temperature controller
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
KAMPA
Model Number :
XMTD-7000
Temperature Controller :
HOT SALE XMTD-7000 Digital Temperature Controller
Input Signal :
Thermocouple:K,E,J resistance:Pt100,Cu50
Work Power :
AC220V 10%(50/60Hz)
Mounting Style :
Matching Panel Style
OEM :
YES
Panel size :
72*72mm
hole size :
68*68mm
Color :
Black
Sample time: :
within 3days
control :
pid
Packaging Details :
HOT SALE XMTD-7000 Digital Temperature Controller Packing: standard expert carton
Port :
NINGBO
Supply Ability :
10000 Piece/Pieces per Month
MOQ :
10 Pieces
Price :
$5.00 - $8.00/Pieces
Description

HOT SALE XMTD-7000 Digital Temperature Controller

XMTD-7000 series XMTD-7411 7412 thermostat temperature control table PID intelligent temperature controller

Description:

(1)Outline dimension

See the outline dimension picture

(2)Control Mode

F:PID operation and auto calculating (reverse operation)

D:PID operation and auto calculating(Forward operation)

W: heating/cooling PID operation and auto calculating(cooling water)*1

A: heating/cooling PID operation and auto calculating(cooling wind)*1

(3)Input mode

Refer to Input Range Table

(4)Range Code

Refer to Input Range Table

(5)First control output(OUT1)

(Heating side)

M: Relay contact output

8: Current output(IC4-20mA)

V: Voltage impulse output

G: Thyratron driving & triggering output

T: Thyratron output

(6)Second controloutput (OUT2)

(Cooling side)*2

No mark: when the control mode is F or D

M: Relay contact output

T: Thyratron output

V: Voltage impulse output

8: Current output(IC 4-20mA)

(7)First alarm

(ALM1)

(8)Second alarm

(ALM2)*2

N: no alarm

A: Upper-limit deviation alarm

J: lower-limit input alarm

B: Lower-limit bias alarm

K: Standby upper-limit input alarm attached

C: Upper/lower limit bias alarm

L: Standby lower-limit input alarm attached

D: alarm in area

P: Heater line breakage alarm(CTL-6)*3

E: Standby upper-limit bias alarm attached

S: Heater line breakage alarm(CTL-12)*3

F: Standby lower-limit bias alarm attached

R: Control line breakage alarm *4

G: Standby upper/lower limit bias alarm

V: Upper-limit setting alarm

H: Upper-limit input value alarm

W: Lower-limit set value alarm

(9)Communication*5

N: No communication

(10)Water-proof/dust-proof

N: no water-proof/dust-proof

Input type

Set range

Input type

Set range

(TC)

Thermocouple Input(TC)

K

0 to 1372°c(0 to 2502°F)

J

0 to 1200°c(0 to 2192°F)

R

0 to 1769°c(0 to 3216°F)

S

0 to 1769°c(0 to 3216°F)

B

0 to 1820°c(0 to 3308°F)

E

0 to 1000°c(0 to 1832°F)

N

0 to 1300°c(0 to 2372°F)

T

-199.9 to +400.0°c(-199.9 to +752.0°F)

W5Re/W26Re

0 to 2320°c(0 to 4208)

PL

0 to 1390°c(0 to 2534°F)

L

0 to 900°c(0 to 1652°F)

U

-199.9 to +600.0°c(-199.9 to +999.9°F)

RTD Input

Pt100Ω(JIS/IEC)

-199.9 to +649.0°c

(-199.9 to +999.9°F)

JPt100Ω(JIS)

-199.9 to +649.0°c

(-199.9 to +999.9°F)

Voltage input

0 to 5V DC

1 to 5V DC

-1999 to +9999(programmable range)

Current input

0 to 20mADC

4 to 20mADC

-1999 to +9999(programmable range)
