PL-05 DC 6-36V 5 mm distance 3-wire inductive square proximity sensor switch
PL-05 DC 6-36V 5 mm distance 3-wire inductive square proximity sensor switch
PL-05 DC 6-36V 5 mm distance 3-wire inductive square proximity sensor switch
PL-05 DC 6-36V 5 mm distance 3-wire inductive square proximity sensor switch
PL-05 DC 6-36V 5 mm distance 3-wire inductive square proximity sensor switch
PL-05 DC 6-36V 5 mm distance 3-wire inductive square proximity sensor switch
PL-05 DC 6-36V 5 mm distance 3-wire inductive square proximity sensor switch
PL-05 DC 6-36V 5 mm distance 3-wire inductive square proximity sensor switch
PL-05 DC 6-36V 5 mm distance 3-wire inductive square proximity sensor switch
PL-05 DC 6-36V 5 mm distance 3-wire inductive square proximity sensor switch
Specifications
Model Number :
PL-05N
Type :
other
Place of Origin :
Zhejiang, China
Brand Name :
Kampa
Usage :
Magnetic Sensor
Theory :
Inductance Sensor
Output :
Analog SENSOR
Rated current :
200 M(A)
Rated volatge :
DC10~30(V)
Standard test object :
DC<15mA AC<10mA
Delection object :
Magnetic matel
detect distance :
1.5(mm)
DC/AC Response frequency :
500HZ/25HZ
Protection structure :
IP67(ICE specification)
Packaging Details :
Poids du colis : 0.500kg (1.10lb.) Dimensions du colis : 10cm x 10cm x 5cm (3.94in x 3.94in x 1.97in)
Port :
Ningbo/Shanghai
Supply Ability :
100000 Piece/Pieces per Month
MOQ :
100000 Pieces
Price :
$2.80 - $6.80/Pieces
Description

PL-05 DC 6-36V 5 mm distance 3-wire inductive square proximity sensor switch

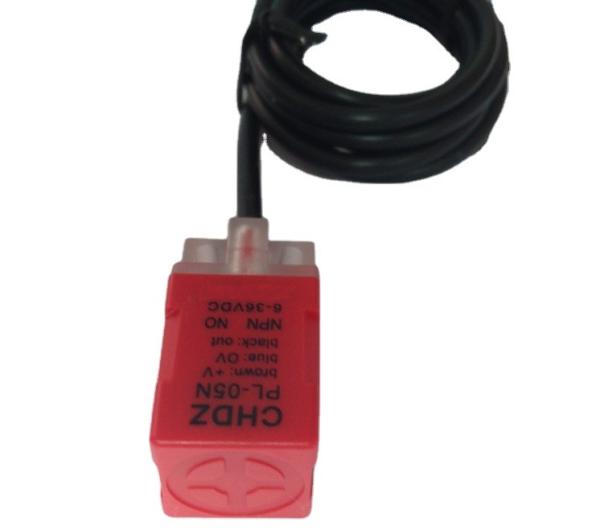

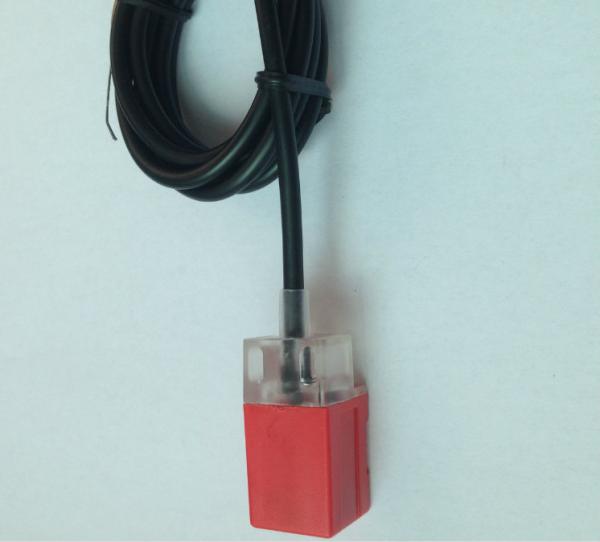

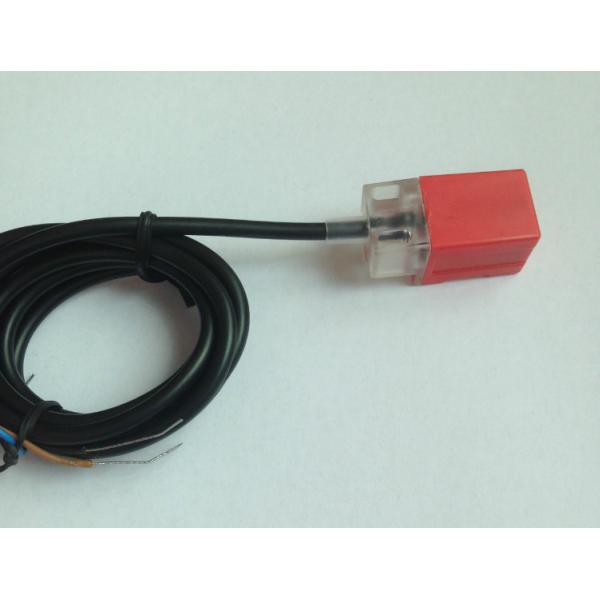

1. Pictures of sensor switch

PL-05 DC 6-36V 5 mm distance 3-wire inductive square proximity sensor switch

PL-05 DC 6-36V 5 mm distance 3-wire inductive square proximity sensor switch

PL-05 DC 6-36V 5 mm distance 3-wire inductive square proximity sensor switch

PL-05 DC 6-36V 5 mm distance 3-wire inductive square proximity sensor switch

PL-05 DC 6-36V 5 mm distance 3-wire inductive square proximity sensor switch

2.Description of sensor switch

*Power supply reversal connectiin protection,short-circut protrction,can direlty connect with PLC.

*Economic and simple operation.

*Long service life,hig reliability and strong resistance property state,

*Red LED indicated that it's avaliable to detect the sensor operating state.

*IP67 protection structive(ICE specification)

*Read the *Matters needing attention"of the product instruction before use.

Delay distance 10% below often delection distance
Delection object Magnetic matel(the detection distance decrease when it is non-magnetic,metal)
Supply voltage DC type:DC12-24V(6-36V) inpulse(p-p)10%below.AC type:AC110-220V(36-250V)50/60Hz
Consumption current N/P type.300mA below.D type:0.8mA below,A type:1.7mA below
Control output N/P.D type:reverse connection protection,surge absorption,load short-circut protection,A type:surfe absorption
Ambient temoerature During operation ,storage:individually:-30~+65℃(NO FREEZE.NO DREW)
Ambient humidity During operation,stroge,individually 3.5-95%RH
Insualation impedance 50mΩ above(DC 500 megameter)between charging part and housing
Withstandard voltage AC1000v 50/60Hz 1min between charging part and housing
Temperature influence Temperature range:-30~+65℃ at +23℃ ±15% detection distance: Temperature range:-25~+60℃ at+23℃ ,at +23℃ ,±10% detection distance
Voltage influence Inside±15% Rated supply voltage range.at rated supply value.inside ±10% detction distance
Protection structure IP67(ICE specification)
Material Housing Nickel plated brass).(Detection surface:ABS)
