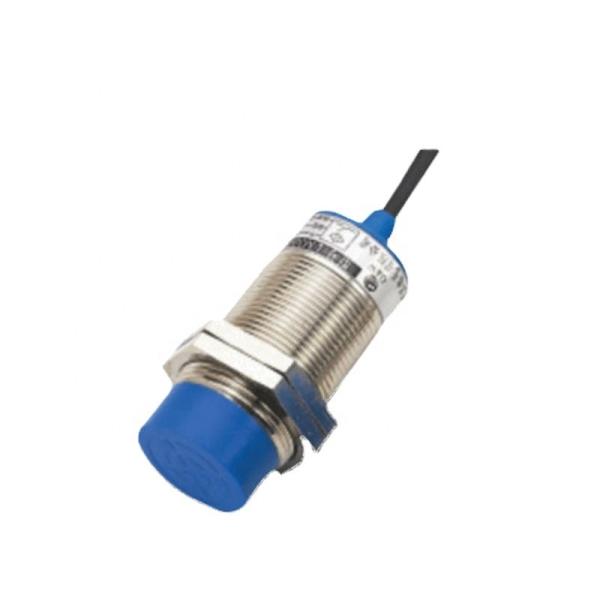

LM22 Series 10mm 15mm NPN PNP NO NC NO+NC DC6-36V Inductive Siemens Proximity Sensor switch
LM22 Series 10mm 15mm NPN PNP NO NC NO+NC DC6-36V Inductive Siemens Proximity Sensor switch
Specifications
Model Number :
LM30
Type :
other, Siemens proximity switch
Place of Origin :
Zhejiang, China
Brand Name :
Elexpert/KAMPA
Theory :
Inductance Sensor
Output :
Switching Transducer
Brand :
ELEXPERT/KAMPA
Certification :
CE
Model :
LM22
Usage :
Position Sensor
Packaging Details :
Siemens proximity switch
2pc in inner box,in export standard carton
Port :
NingBo/ShangHai
Supply Ability :
90000 Piece/Pieces per Week Siemens proximity switch
MOQ :
1000 Pieces
Price :
$1.00 - $15.00/Pieces
Description

Model:LM22 10mm 15mm NPN PNP NO NC NO+NC DC6-36V Inductive Siemens Proximity Sensor switc

2. Description of Proximity Sensor switch

Flush Detection distance 10MM
DC6-36V NPN NO 3010NA
NC 3010NB
NO+NC 3010NC
PNP NO 3010PA
NC 3010PB
NO+NC 3010PC
Two wire system NO 3010LA
NC 3010LB
AC90-250V SRC Control label silicon NO+NC 3010A
NC 3010B
NO+NC
Relay output
Non-flush flush Detection distance 15mm
DC6-36V NPN NO 3015NA
NC 3015NB
NO+NC 3015NC
PNP NO 3015PA
NC 3015PB
NO+NC 3015PC
Two wire system NO 3015LA
NC 3015LB
AC90-250V SRC Control label silicon NO 2015A
NC 2015B
NO+NC 2015C
Relay output
Control output DC 200mA
SCR/Relay 300mA
Output voltage drop DC/AC DC<3V AC<10mA
Consumption current DC<15mA AC<10mA
Standard detected object 15*15*1(A3 Iron)
Repeat precision 0.02
DC/AC Response frequency 300HZ/25HZ
Working environment temperature below 25°C to 75°C
Insulation resistance ≥50MΩ
Shell meterial Metal
Protection grade IEC standard IP67
Altemative model at home and abroad LJ30A3

3. Production Line of Product

LM22 Series 10mm 15mm NPN PNP NO NC NO+NC DC6-36V Inductive Siemens Proximity Sensor switch

4. More Product for You to Choose

LM22 Series 10mm 15mm NPN PNP NO NC NO+NC DC6-36V Inductive Siemens Proximity Sensor switch

5. Packing of Product

LM22 Series 10mm 15mm NPN PNP NO NC NO+NC DC6-36V Inductive Siemens Proximity Sensor switch

6. Sample Rooms of Product

LM22 Series 10mm 15mm NPN PNP NO NC NO+NC DC6-36V Inductive Siemens Proximity Sensor switch

Company Information

1. Introduction of Company

LM22 Series 10mm 15mm NPN PNP NO NC NO+NC DC6-36V Inductive Siemens Proximity Sensor switch

2. Our Company View

Yueqing Kampa Electric Co., Ltd. is Established in 1990.Has variety of goods,such as Circuit breaker,Switching Power Supply,Time Relay,Distribution Box,Proximity Switch, temperature controller, contactor, solid state relay, Mould Case Circuit Breaker, kilowatt-hour meter, electric power relay and so on. Most of them are exported to Europe , America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. The enterprise has gained ISO9001, RVA Quality System Attestation (Netherlands),and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China, successively, and has been insured by PICC.

3. Our Exhibitions

LM22 Series 10mm 15mm NPN PNP NO NC NO+NC DC6-36V Inductive Siemens Proximity Sensor switch
