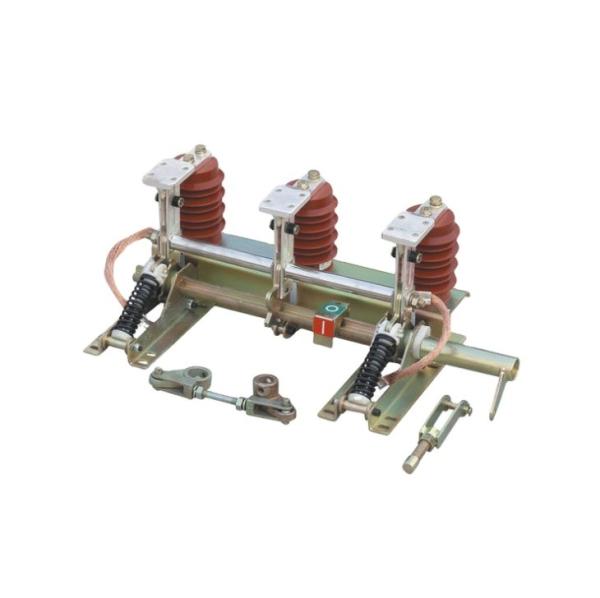

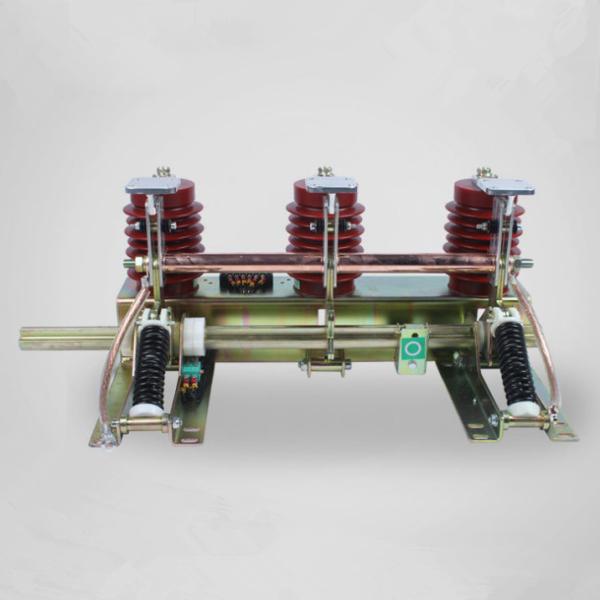

High Voltage Earthing Switch Kampa JN15-24KV-210 For Indoor
High Voltage Earthing Switch Kampa JN15-24KV-210 For Indoor
High Voltage Earthing Switch Kampa JN15-24KV-210 For Indoor
High Voltage Earthing Switch Kampa JN15-24KV-210 For Indoor
High Voltage Earthing Switch Kampa JN15-24KV-210 For Indoor
High Voltage Earthing Switch Kampa JN15-24KV-210 For Indoor
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
Kampa
Model Number :
JN15-24/31.5KA-210
Product name :
High Voltage Earthing Switch JN15-24KV-210 for Indoor
Type :
Earthing Switch
Rated voltage :
24KV
Rated short-time withstand current: :
31.5kA
Short time continue time :
4s
Lighting impulsive withstand voltage :
125kV
Short time power frequcey voltage :
65kV
Certification :
ISO9001
Max. Current :
other
Max. Voltage :
24KV
Packaging Details :
Normal package,one pcs one cartoon.
Port :
Ningbo
Supply Ability :
1000 Piece/Pieces per Month
Price :
$230.00 - $250.00/Sets
Description

High Voltage Earthing Switch Kampa JN15-24KV-210 For Indoor

1.Used in indoor switchgear for the earthing protection.

2.Three phase earthing switch with phase pole distance of 210mm or 275mm, it is suitable 800mm MV indoor metal clad switchgear and 1000mm MV indoor indoor metal clad switchgear.

Operation environment

1.Altitude No more than 1000m

2.Surrounding temperature between -10°C to +40°C

3.Working situation no conductivity dust

4.No corrosive gas of effect insulation and destroy metal.

5.Without violent vibration and striking.

6.Have no explosive danger and fire

Specification

Item

Unit

Data

Rated voltage

kV

24

Rated short-time withstand current

kA

31.5

Rated short-circuit duration

s

4

Rated short-circuit making current

kA

80

Rated peak withstand current

kA

80

Rated insulation level

PF withstand voltage (1 min)

kV

Phase to earthPhase to phase

65

Lightning impulse withstand voltage

125

Mechanical endurance

Time

2000

High Voltage Earthing Switch Kampa JN15-24KV-210 For IndoorHigh Voltage Earthing Switch Kampa JN15-24KV-210 For IndoorHigh Voltage Earthing Switch Kampa JN15-24KV-210 For Indoor

Company Information

High Voltage Earthing Switch Kampa JN15-24KV-210 For Indoor

Yueqing Kampa Electric Co.,Ltd. is Established in 1990.Has variety of goods ,such as

Circuit Breaker,Relay,Switch,Contactor and so on.

We are manufacturer and have ten years experience in Electrical industry.
Packaging & Shipping

Packing of Product

High Voltage Earthing Switch Kampa JN15-24KV-210 For Indoor
