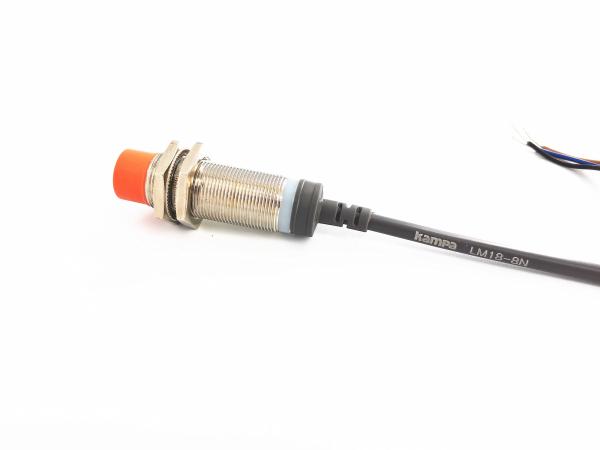

Inductive Sensor Non-flush 8mm Detection Distance LJ18A3-8-Z/AY DC Proximity Sensor Switch
Inductive Sensor Non-flush 8mm Detection Distance LJ18A3-8-Z/AY DC Proximity Sensor Switch
Inductive Sensor Non-flush 8mm Detection Distance LJ18A3-8-Z/AY DC Proximity Sensor Switch
Inductive Sensor Non-flush 8mm Detection Distance LJ18A3-8-Z/AY DC Proximity Sensor Switch
Inductive Sensor Non-flush 8mm Detection Distance LJ18A3-8-Z/AY DC Proximity Sensor Switch
Inductive Sensor Non-flush 8mm Detection Distance LJ18A3-8-Z/AY DC Proximity Sensor Switch
Inductive Sensor Non-flush 8mm Detection Distance LJ18A3-8-Z/AY DC Proximity Sensor Switch
Inductive Sensor Non-flush 8mm Detection Distance LJ18A3-8-Z/AY DC Proximity Sensor Switch
Inductive Sensor Non-flush 8mm Detection Distance LJ18A3-8-Z/AY DC Proximity Sensor Switch
Inductive Sensor Non-flush 8mm Detection Distance LJ18A3-8-Z/AY DC Proximity Sensor Switch
Specifications
Model Number :
LJ18A3-8-Z/AY
Type :
Inductive Proximity Sensor
Place of Origin :
Zhejiang, China
Brand Name :
Kampa
Usage :
Position Sensor
Theory :
Inductance Sensor
Output :
Switching Transducer
Description :
Proximity Sensor
Detection Target :
Metal
Sensing Surface :
Non-flush
Size :
M18
Output Type :
PNP NC
Detection Distance :
8mm
Material :
PBT and metal
With Cable :
2m
Application :
Industrial Automatic
Packaging Details :
1~10pcs in box and batch in carton
Port :
None
Supply Ability :
100000 Piece/Pieces per Month
MOQ :
50 Pieces
Price :
$3.00 - $5.00/Pieces
Description
Product Description
Inductive Sensor Non-flush 8mm Detection Distance LJ18A3-8-Z/AY DC Proximity Sensor Switch
Inductive Sensor Non-flush 8mm Detection Distance LJ18A3-8-Z/AY DC Proximity Sensor Switch
Diameter:
Diameter:
M18*1
M18 /LJ18
Model:
LJ18 / LM18







Output Form:





DC

NPN
NC
LJ18A3-8-Z/AX
NO
LJ18A3-8-Z/BX

PNP
NC
LJ18A3-8-Z/AY
NO
LJ18A3-8-Z/BY

2-wire
NC
LJ18A3-8-Z/DZ
NO
LJ18A3-8-Z/EZ

AC

2-wire
NC
LJ18A3-8-J/DZ
NO
LJ18A3-8-J/EZ
Specification
Model:
LJ18
Sensing Surface Type:
Non-flush Type
Flush Type
Standard Detecting Target (3-wire):
25*25*1 metal
18*18*1 metal
Standard Detecting Target (2-wire):
30*30*1 metal
25*25*1 metal
Detecting Distance :
8mm±10%
5mm±10%
Frequency:
3-wire 500Hz, 2-wire 300Hz
3-wire 800Hz, 2-wire 500Hz
Frequency:
AC: 20Hz
Voltage Supply:
10~30VDC, 90~250VAC
Saturation Voltage (DC 3-wire):
DC 3-wire ≤2.5V, 2-wire <6V; AC <10V
Static Operating Current:
<10mA
Full-load Current:
≤200mA
Output Indication:
green LED,360°visible
Power Protection:
DC: reverse protection,short-circuit protection; AC: surge protection
Withstand Voltage:
1500V/AC 50/60Hz 1min
Ambient Temperature:
Storage Temperature:
Ambient Humidity:
-20 ~ +70℃
-30 ~ +80℃
35~95%
Insulation Resistance:
≥50MΩ
IP Grade:
IP67

Material:
brass nickel-plated case,
PBT detection surface,
PVC cable
Dimension
Inductive Sensor Non-flush 8mm Detection Distance LJ18A3-8-Z/AY DC Proximity Sensor Switch
Product Features
Inductive Sensor Non-flush 8mm Detection Distance LJ18A3-8-Z/AY DC Proximity Sensor Switch
——Good quality, good sensing performance, anti-interference and stable output.

Inductive Sensor Non-flush 8mm Detection Distance LJ18A3-8-Z/AY DC Proximity Sensor Switch
—— LED (green light) indicator to show the output, 360° visible, clear and intuitive.

Inductive Sensor Non-flush 8mm Detection Distance LJ18A3-8-Z/AY DC Proximity Sensor Switch

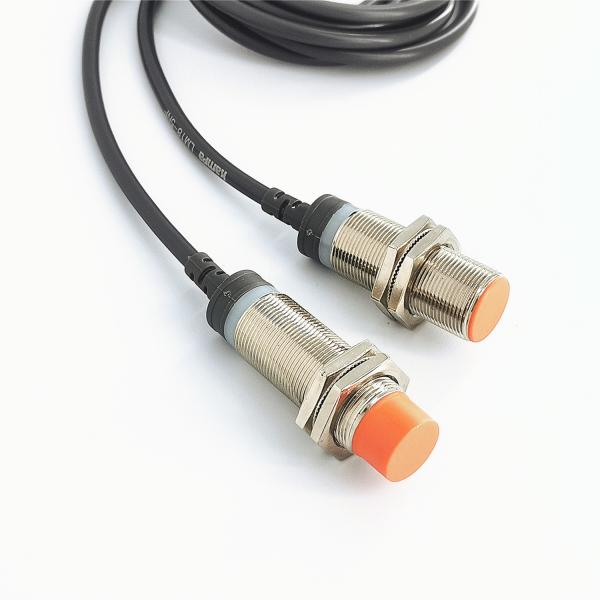

—— Two types available, different sensing distance: non-flush type(8mm), flush type(5mm).

Company Profile
Inductive Sensor Non-flush 8mm Detection Distance LJ18A3-8-Z/AY DC Proximity Sensor Switch
Inductive Sensor Non-flush 8mm Detection Distance LJ18A3-8-Z/AY DC Proximity Sensor Switch
Packing & Delivery
Inductive Sensor Non-flush 8mm Detection Distance LJ18A3-8-Z/AY DC Proximity Sensor Switch
Inductive Sensor Non-flush 8mm Detection Distance LJ18A3-8-Z/AY DC Proximity Sensor Switch
