LJ12A3-4-Z/BX DC NPN 3-Wire NO Non-flush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch
LJ12A3-4-Z/BX DC NPN 3-Wire NO Non-flush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch
LJ12A3-4-Z/BX DC NPN 3-Wire NO Non-flush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch
LJ12A3-4-Z/BX DC NPN 3-Wire NO Non-flush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch
LJ12A3-4-Z/BX DC NPN 3-Wire NO Non-flush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch
LJ12A3-4-Z/BX DC NPN 3-Wire NO Non-flush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch
LJ12A3-4-Z/BX DC NPN 3-Wire NO Non-flush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch
LJ12A3-4-Z/BX DC NPN 3-Wire NO Non-flush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch
LJ12A3-4-Z/BX DC NPN 3-Wire NO Non-flush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch
LJ12A3-4-Z/BX DC NPN 3-Wire NO Non-flush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch
LJ12A3-4-Z/BX DC NPN 3-Wire NO Non-flush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch
LJ12A3-4-Z/BX DC NPN 3-Wire NO Non-flush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch
LJ12A3-4-Z/BX DC NPN 3-Wire NO Non-flush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch
LJ12A3-4-Z/BX DC NPN 3-Wire NO Non-flush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch
Specifications
Model Number :
LJ12A3-4-Z/BX
Type :
Inductive Proximity Sensor
Place of Origin :
Zhejiang, China
Brand Name :
Kampa
Usage :
Position Sensor
Theory :
Inductance Sensor
Output :
Switching Transducer
Description :
Proximity Sensor
Detection Objects :
Metal
Sensing Surface :
Non-flush
Size :
M12
Output Type :
NPN NO
Detection Distance :
4mm
Material :
PBT and metal
With Cable :
2m
Application :
Industrial Automatic
Packaging Details :
1~10pcs in box and batch in carton
Port :
None
Supply Ability :
100000 Piece/Pieces per Month
MOQ :
50 Pieces
Price :
$2.00 - $5.00/Pieces
Description
Product Show

LJ12A3-4-Z/BX DC NPN 3-Wire NO Non-flush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch

Product Description
LJ12A3-4-Z/BX DC NPN 3-Wire NO 4mm Detection Distance
M12 Inductive Proximity Sensor Switch

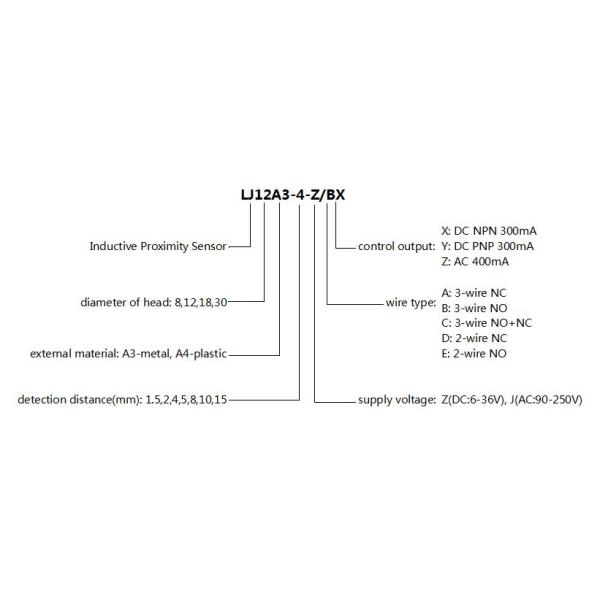

1.Model Number Structure
LJ12A3-4-Z/BX DC NPN 3-Wire NO Non-flush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch
2.Technical Specification
Model: M12
Output Form: DC NPN NO LJ12A3-4-Z/BX
NC LJ12A3-4-Z/AX
NO+NC LJ12A3-4-Z/CX
PNP NO LJ12A3-4-Z/BY
NC LJ12A3-4-Z/AY
NO+AC LJ12A3-4-Z/CY
2-wire NO LJ12A3-4-Z/EZ
NC LJ12A3-4-Z/DZ
AC 2-wire NO LJ12A3-4-J/EZ
NC LJ12A3-4-J/DZ

Sensing Surface:

Standard Detecting Object:

Detection Distance:

Frequency:

Flush Type

12*12*1mm metal

2mm±10%

1000Hz

Non-flush Type

18*18*1mm metal

4mm±10%

800Hz

Frequency:

 AC: 20Hz
Detection Object: Magnetic metal
Voltage Supply: 10~30VDC, 90~250VAC
Static Operating Current: <10mA
Full-load Current: DC: ≤200mA AC: ≤300mA
Output Indication: green LED,360°visible
Power Protection:

DC:reverse protection,short-circuit protection

AC:surge protection
Withstand Voltage:

1500V/AC 50/60Hz 1min

Ambient Temperature:

Storage Temperature:

Ambient Humidity:

-20 ~ +70℃

-30 ~ +80℃

35~95%

Insulation Resistance:

≥50MΩ

Protection Degree:

IP67

Material:

brass nickel-plated case,

PBT detection surface,

PVC cable
3.Features
—— Good quality, good sensing performance, anti-interference and stable output.
LJ12A3-4-Z/BX DC NPN 3-Wire NO Non-flush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch
—— LED (green light) indicator to show the output, 360° visible, clear and intuitive.
LJ12A3-4-Z/BX DC NPN 3-Wire NO Non-flush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch
—— Two types available, different sensing distance: non-flush type(4mm), flush type(2mm).
LJ12A3-4-Z/BX DC NPN 3-Wire NO Non-flush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch

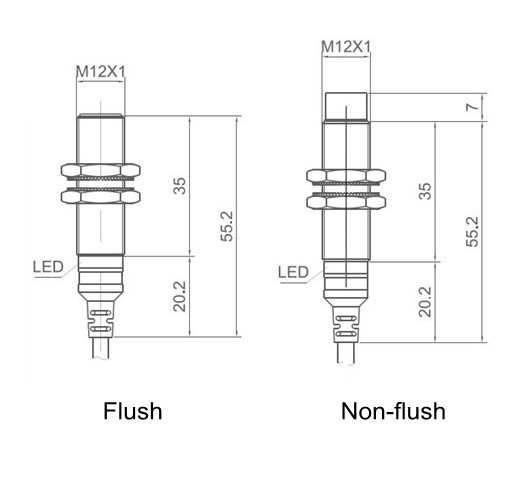

4.Dimension
LJ12A3-4-Z/BX DC NPN 3-Wire NO Non-flush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch
Packaging & Shipping

LJ12A3-4-Z/BX DC NPN 3-Wire NO Non-flush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch LJ12A3-4-Z/BX DC NPN 3-Wire NO Non-flush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch

Company Information

LJ12A3-4-Z/BX DC NPN 3-Wire NO Non-flush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch

LJ12A3-4-Z/BX DC NPN 3-Wire NO Non-flush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch

LJ12A3-4-Z/BX DC NPN 3-Wire NO Non-flush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch

A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.

B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.
