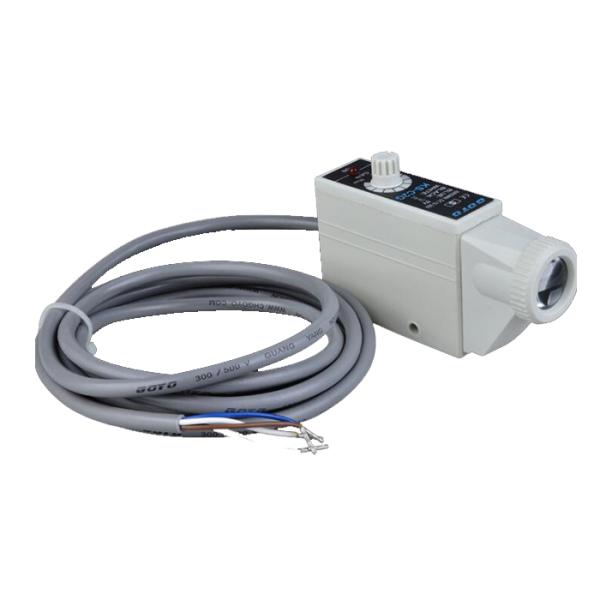

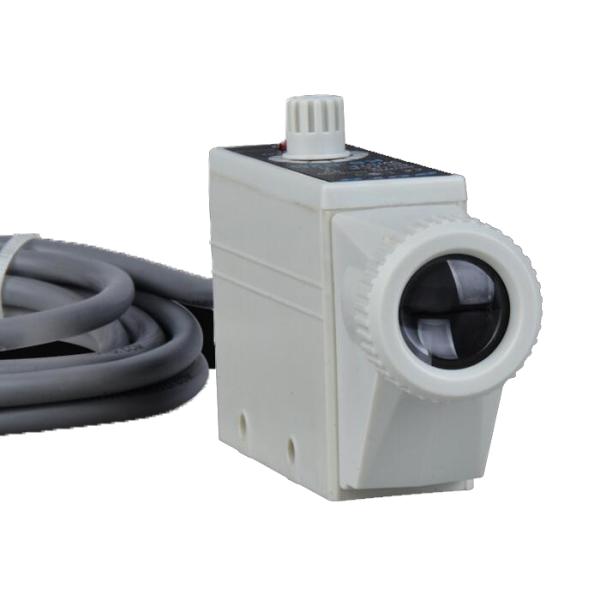

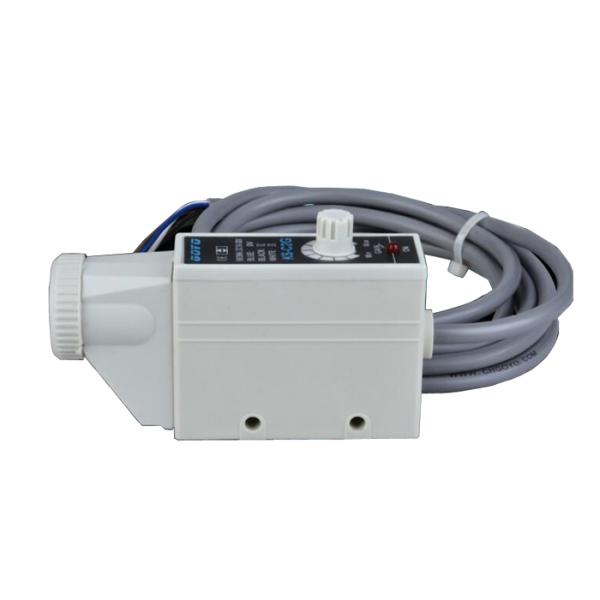

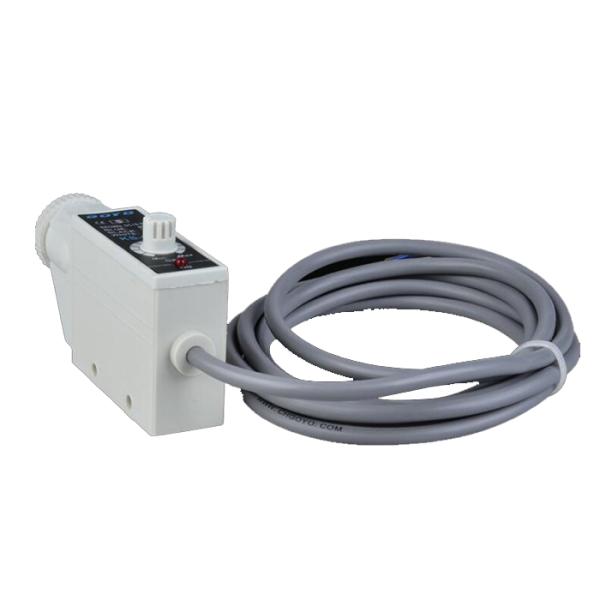

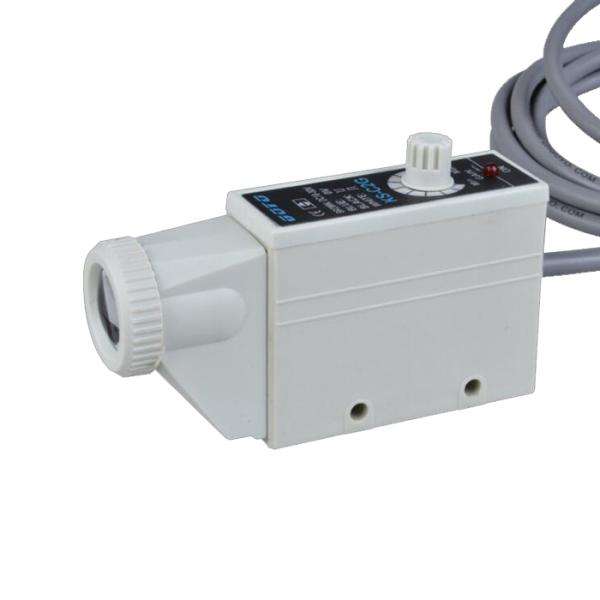

KS-C2 Color Scale Sensor Photoelectric Sensor Coaxial Reflective Photoelectric Switch Sensor for Packaging Machine
KS-C2 Color Scale Sensor Photoelectric Sensor Coaxial Reflective Photoelectric Switch Sensor for Packaging Machine
KS-C2 Color Scale Sensor Photoelectric Sensor Coaxial Reflective Photoelectric Switch Sensor for Packaging Machine
KS-C2 Color Scale Sensor Photoelectric Sensor Coaxial Reflective Photoelectric Switch Sensor for Packaging Machine
KS-C2 Color Scale Sensor Photoelectric Sensor Coaxial Reflective Photoelectric Switch Sensor for Packaging Machine
KS-C2 Color Scale Sensor Photoelectric Sensor Coaxial Reflective Photoelectric Switch Sensor for Packaging Machine
KS-C2 Color Scale Sensor Photoelectric Sensor Coaxial Reflective Photoelectric Switch Sensor for Packaging Machine
KS-C2 Color Scale Sensor Photoelectric Sensor Coaxial Reflective Photoelectric Switch Sensor for Packaging Machine
KS-C2 Color Scale Sensor Photoelectric Sensor Coaxial Reflective Photoelectric Switch Sensor for Packaging Machine
KS-C2 Color Scale Sensor Photoelectric Sensor Coaxial Reflective Photoelectric Switch Sensor for Packaging Machine
Specifications
Model Number :
KS-C2
Place of Origin :
Zhejiang, China
Brand Name :
KAMPA
Usage :
Magnetic Sensor
Theory :
Inductance Sensor
Output :
Switching Transducer
External dimensions :
26x63x60
Sensing method :
Coaxial reflex
Light source chromatogram :
Red, green, blue, white
Load current :
<200mA
Detection distance :
10mm±2mm
Sensitivity adjustment :
Adjustable
Response frequency :
0.1-1ms
Light source :
Infrared LED (660 nm)
Packaging Details :
standard export carton
Port :
NingBo/SHANGHAI
Supply Ability :
10000 Piece/Pieces per Month
Price :
$28.00 - $35.00/Pieces
Description

KS-C2 Color Scale Sensor Photoelectric Sensor Coaxial Reflective Photoelectric Switch Sensor for Packaging Machine

KS-C2 series color sensor

finglaiOperating form and model number
Current typeOperating formContact formModel numberRemarkRelated product
DCNPNNO+NCKS-C2WWhite lightVisiting...
DCNPNNO+NCKS-C2GGreen lightVisiting...
DCNPNNO+NCKS-C2RRed lightVisiting...
DCNPNNO+NCKS-C2BBlue lightVisiting...
DCNPNNO+NCKS-C2RGRed, green lightVisiting...
DCNPNNO+NCKS-C2WGWhite, green lightVisiting...
DCNPNNO+NCKS-C2WBWhite, blue light
DCNPNNO+NCKS-C2GBGreen, blue lightVisiting...
finglaiGeneral
Model numberKS-C2 series
External dimensions26x63x60
Sensing methodCoaxial reflex
Light source chromatogramRed, green, blue, white
Light spot (color)Φ0.5-Φ1.5
Load current<200mA
Detection distance10mm±2mm
Sensitivity adjustmentAdjustable
Supply voltage10-30Vdc±10%
Sensing objectOpaque object
Response frequency0.1-1ms
Light sourceInfrared LED (660 nm)
Leakage currentN.P Type: 20mA max; A Type: 1.7mA max
Protection circuitReverse polarity protection, Surge suppressor, Short-circuit protection
Insulation resistance50 MΩ min. at 500 V DC between energized parts and case
Dielectric strength1000 VAC max., 50 / 60 Hz for 1 min between energized parts and case
Temperature influence±10% max. of sensing distance at 23°C within temperature range of -25°C to 60°C
±15% max. of sensing distance at 23°C within temperature range of -30°C to 65°C
Voltage influence±10% max. of sensing distance in rated voltage range ±15%
IP RatingIP67
MaterialCase: Aluminum die-cast (ABS); Sensing surface (lens): PMMA
Operating temperature-30 to 65 °C (with no icing or condensation)
Operating humidityStorage: 35% to 95% (without condensation)

KS-C2 Color Scale Sensor Photoelectric Sensor Coaxial Reflective Photoelectric Switch Sensor for Packaging MachineKS-C2 Color Scale Sensor Photoelectric Sensor Coaxial Reflective Photoelectric Switch Sensor for Packaging MachineKS-C2 Color Scale Sensor Photoelectric Sensor Coaxial Reflective Photoelectric Switch Sensor for Packaging MachineKS-C2 Color Scale Sensor Photoelectric Sensor Coaxial Reflective Photoelectric Switch Sensor for Packaging MachineKS-C2 Color Scale Sensor Photoelectric Sensor Coaxial Reflective Photoelectric Switch Sensor for Packaging Machine

Packaging & Shipping

KS-C2 Color Scale Sensor Photoelectric Sensor Coaxial Reflective Photoelectric Switch Sensor for Packaging Machine

Company Information

KS-C2 Color Scale Sensor Photoelectric Sensor Coaxial Reflective Photoelectric Switch Sensor for Packaging Machine

Yueqing Kampa Electric Co.,Ltd. is Established in 1990.Has variety of goods ,such as Relay,Circuit breaker,Switches,Thermocouple,Thermostat,Temperature controller,Switch power supply,AVS,Heat sink,Heater,Distribution box,Junction box and so on.We are manufacturer and have ten years experience in Electrical industry.

KS-C2 Color Scale Sensor Photoelectric Sensor Coaxial Reflective Photoelectric Switch Sensor for Packaging Machine

KS-C2 Color Scale Sensor Photoelectric Sensor Coaxial Reflective Photoelectric Switch Sensor for Packaging Machine

Our Services

KS-C2 Color Scale Sensor Photoelectric Sensor Coaxial Reflective Photoelectric Switch Sensor for Packaging Machine

A.Punctual delivery time:

We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.
